E7101.1/2
E7101.1/2
E7101.1/2

E7101.1/2

UGC DOR5977612
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$347.33 CAD - $347.33 CAD
$347.33 CAD
$347.33 CAD - $347.33 CAD
$347.33 CAD

Vendu en lots de : 1

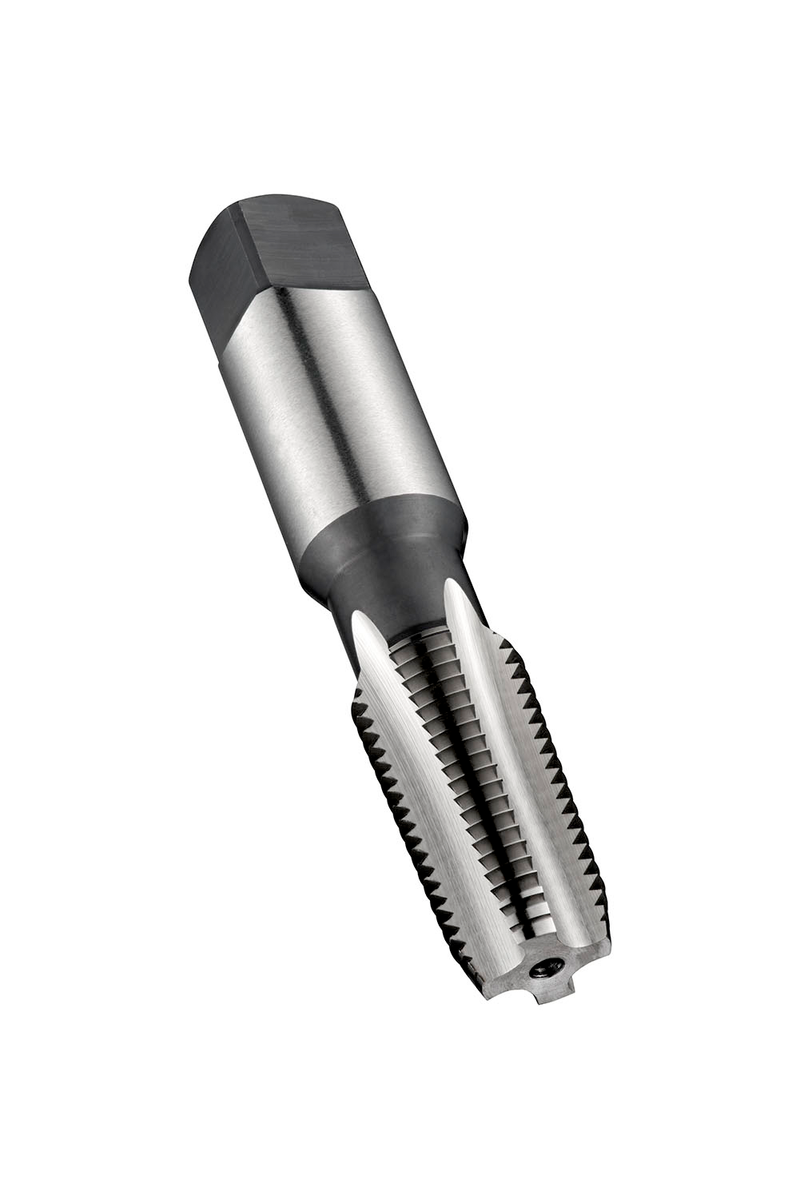

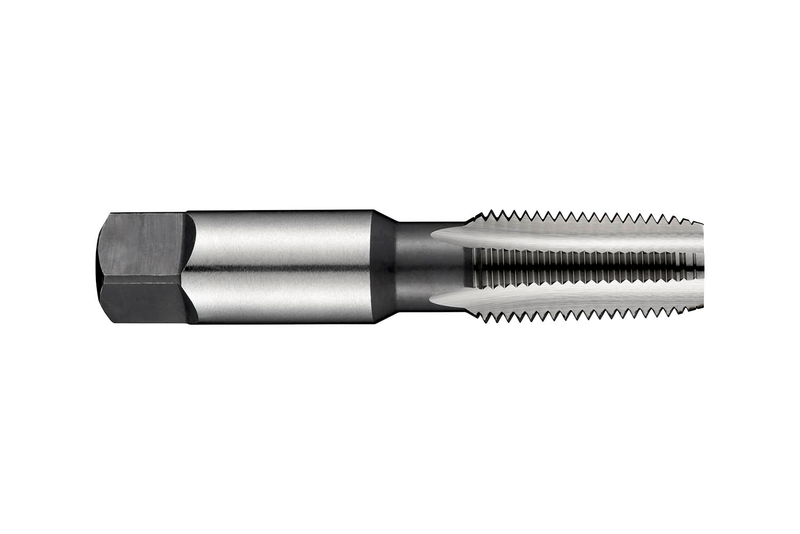

Taraud droit avec chanfrein forme C et entrée 2-3xP, pour filetage National Pipe Taper NPT 1.1/2" avec 11,5 filets par pouce et classe de tolérance Normale, dimensions selon la norme ~ANSI B94.9, avec queue de 38,1 mm et carré d'entraînement de 28,6 mm, en HSS finition brillante pour le filetage de trous débouchants ou borgnes de 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7101.1/2
GradeLumineux
Product Number5977612
Product FamilyE710
Dimensions
Overall Length — in (OAL)5.315"
Overall Length — mm (OAL)135.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.1 mm
Number of Flutes (NOF)7
Threading
Thread Diameter Size (TDZ)1,5
Thread Diameter — in (TD)1.9"
Thread Diameter — mm (TD)48.26 mm
Thread Form (THFT)NPT - Filetage conique national
Threads per Inch (TPI)11.5
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99841
EAN7320760099841
File Type Download
E7101.1/2 — Line Drawing PDF Download
