E7101/8
E7101/8
E7101/8

E7101/8

UGC DOR5977634
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.97 CAD - $36.97 CAD
$36.97 CAD
$36.97 CAD - $36.97 CAD
$36.97 CAD

Vendu en lots de : 1

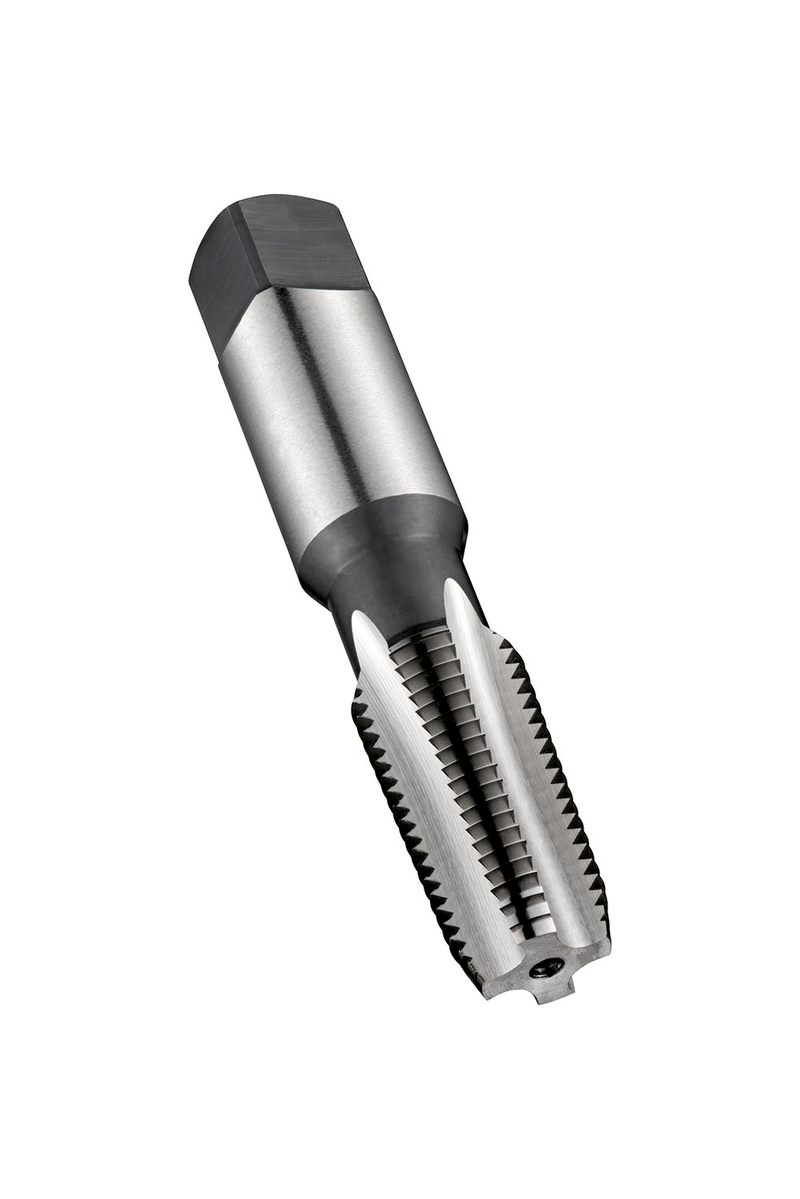

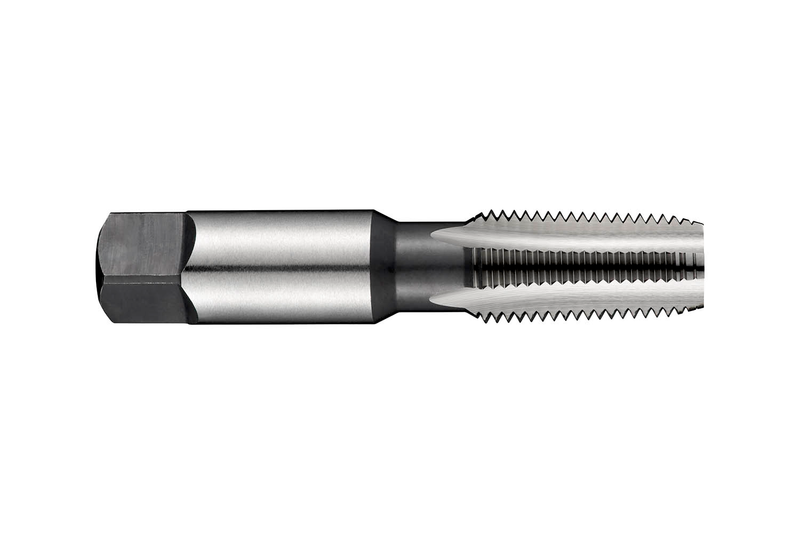

Taraud droit avec chanfrein forme C avec entrée 2-3xP, pour filetage conique national NPT 1/8" avec 27 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 11,1 mm et carré d'entraînement de 8,3 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes de 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7101/8
GradeLumineux
Product Number5977634
Product FamilyE710

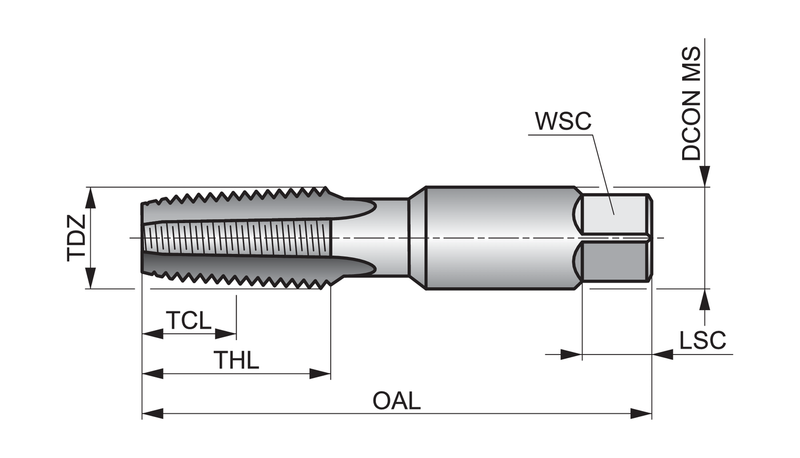

Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.437"
Connection Dia. — mm (DCON)11.1 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.4051"
Thread Diameter — mm (TD)10.29 mm
Thread Form (THFT)NPT - Filetage conique national
Threads per Inch (TPI)27.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99889
EAN7320760099889
File Type Download
E7101/8 — Line Drawing PDF Download
