UGC DOR5977643
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$466.69 CAD - $466.69 CAD
$466.69 CAD
$466.69 CAD - $466.69 CAD
$466.69 CAD

Vendu en lots de : 1

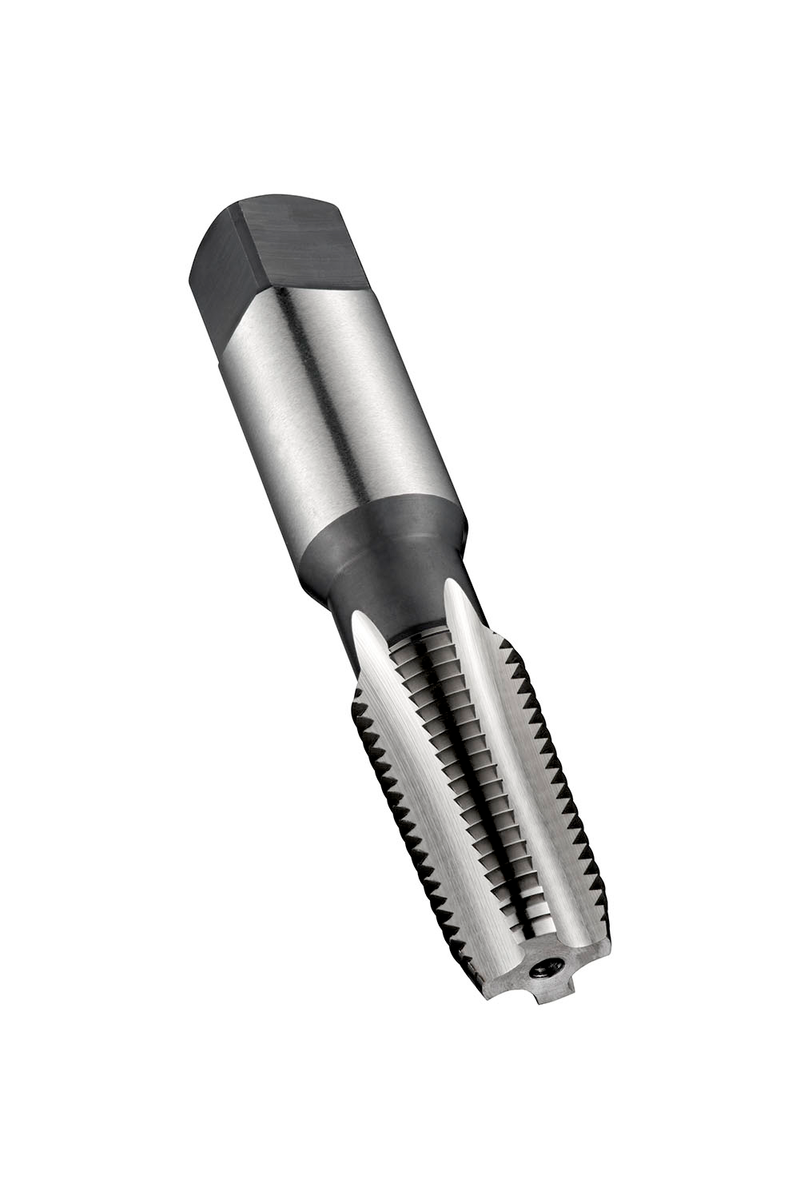

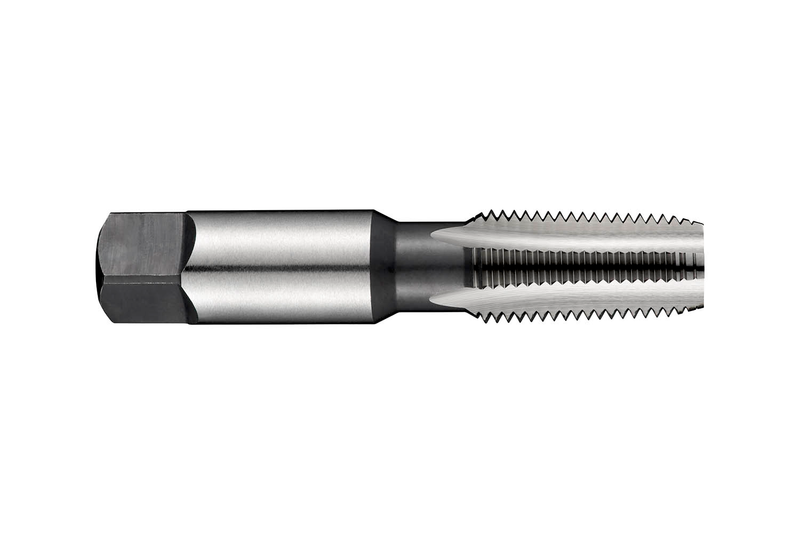

Taraud droit avec chanfrein forme C et entrée 2-3xP, pour filetage conique américain NPT 2" avec 11,5 filets par pouce et classe de tolérance normale, dimensions selon la norme ANSI B94.9 avec queue de 47,6mm et carré d'entraînement de 35,7mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage, l'acier au carbone et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7102
GradeLumineux
Product Number5977643
Product FamilyE710

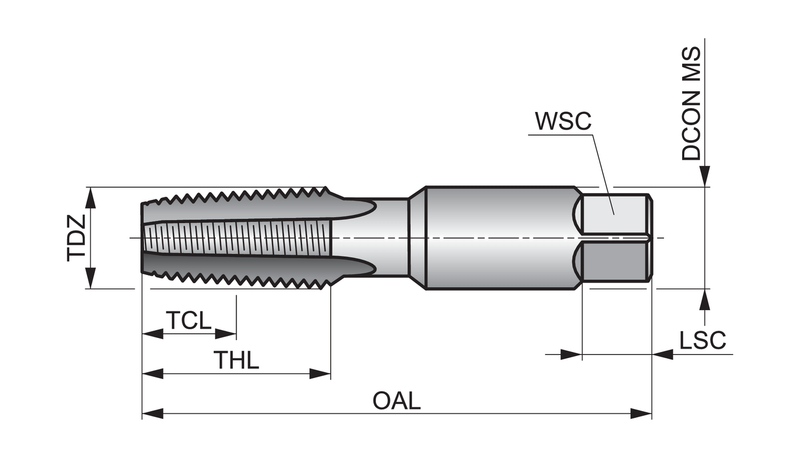

Dimensions
Overall Length — in (OAL)5.7087"
Overall Length — mm (OAL)145.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)1.874"
Connection Dia. — mm (DCON)47.6 mm
Number of Flutes (NOF)7
Threading
Thread Diameter Size (TDZ)5,08 cm
Thread Diameter — in (TD)2.3752"
Thread Diameter — mm (TD)60.33 mm
Thread Form (THFT)NPT - Filetage national conique
Threads per Inch (TPI)11.5
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99896
EAN7320760099896
File Type Download
E7102 — Line Drawing PDF Download
