E7111/2
E7111/2
E7111/2

E7111/2

UGC DOR5977660
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$134.46 CAD - $134.46 CAD
$134.46 CAD
$134.46 CAD - $134.46 CAD
$134.46 CAD

Vendu en lots de : 1

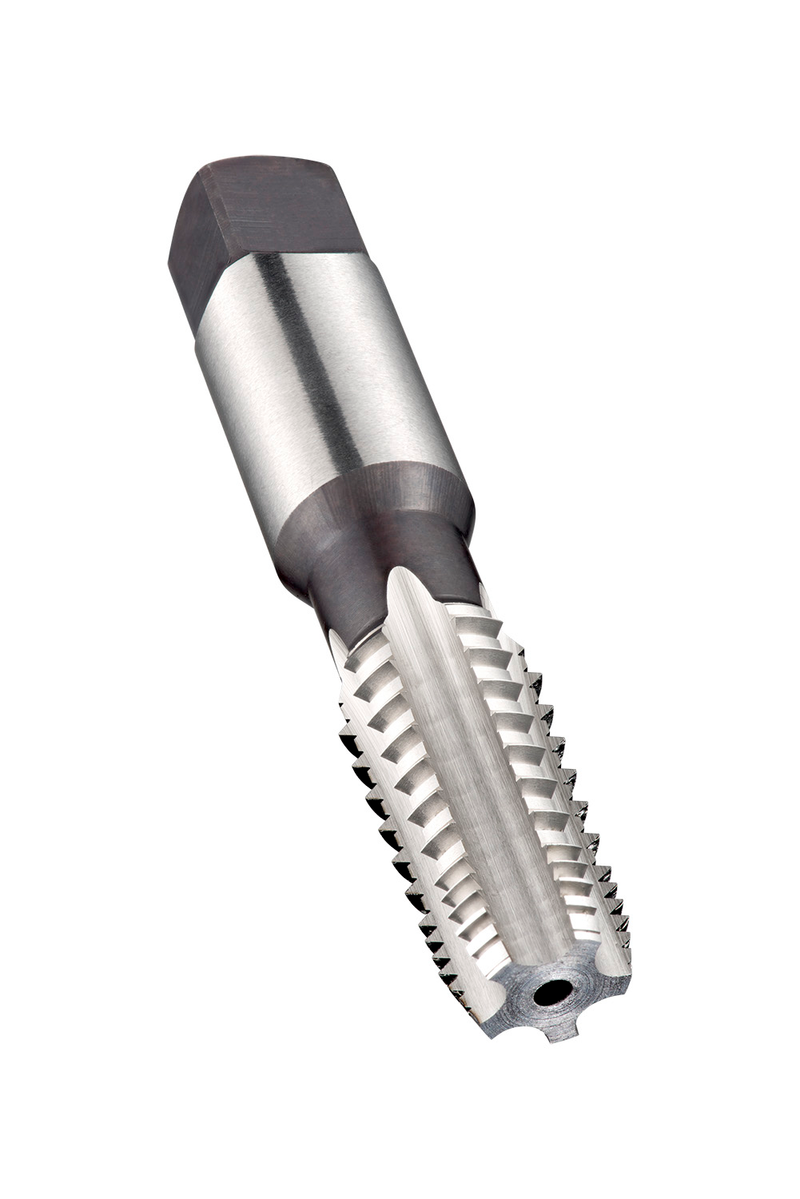

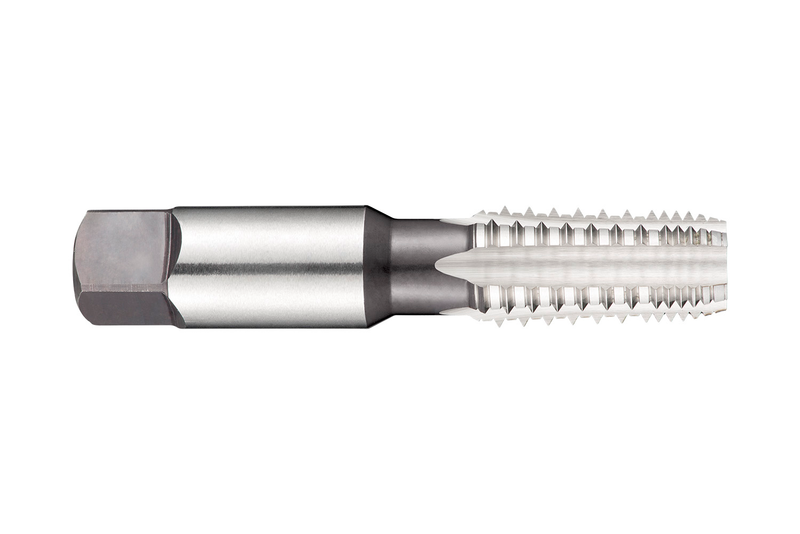

Taraud droit forme C avec entrée 2-3xP, pour filetage NPT 1/2" avec 14 filets par pouce et classe de tolérance normale, dimensions selon la norme ~ANSI B94.9 avec queue de 17,5mm et carré d'entraînement de 13,1mm, en acier rapide avec finition brillante pour le taraudage des trous traversants ou borgnes jusqu'à 1.5xD dans l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7111/2
GradeLumineux
Product Number5977660
Product FamilyE711

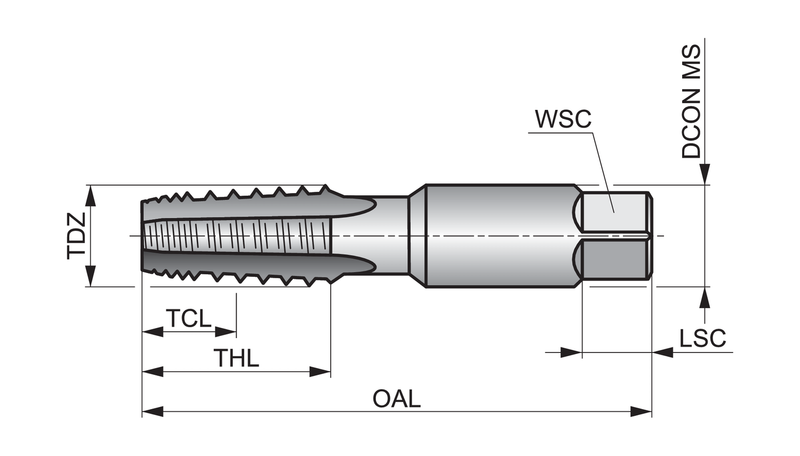

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.689"
Connection Dia. — mm (DCON)17.5 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.8398"
Thread Diameter — mm (TD)21.33 mm
Thread Form (THFT)NPT - National Pipe Taper (filetage conique américain)
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99933
EAN7320760099933
File Type Download
E7111/2 — Line Drawing PDF Download
