E7111/4
E7111/4
E7111/4

E7111/4

UGC DOR5977662
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.30 CAD - $64.30 CAD
$64.30 CAD
$64.30 CAD - $64.30 CAD
$64.30 CAD

Vendu en lots de : 1

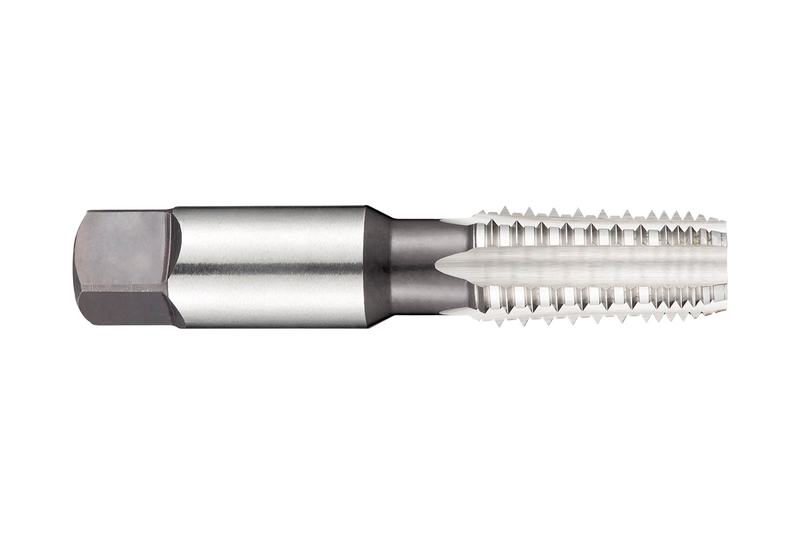

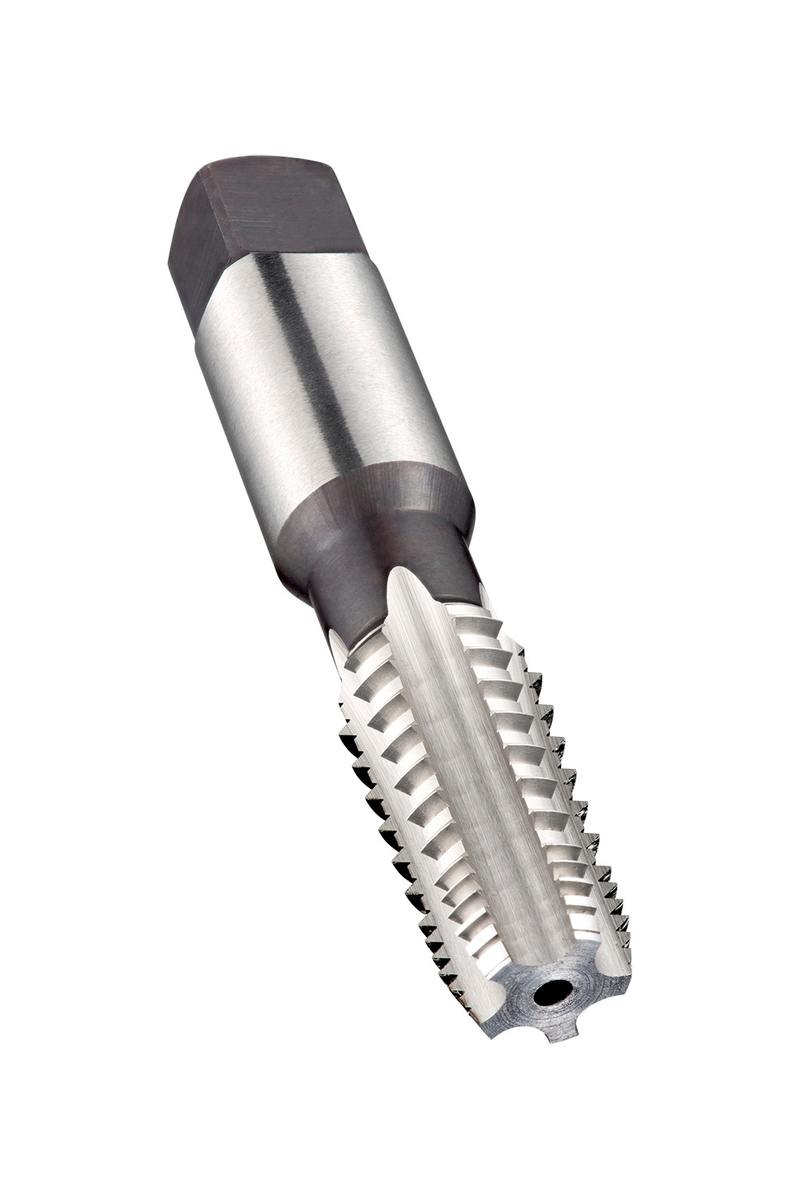

Taraud droit avec chanfrein forme C, pas d'entrée 2-3xP, pour filetage conique National Pipe Taper NPT 1/4" avec 18 filets par pouce et classe de tolérance Normale, dimensions selon la norme ~ANSI B94.9 avec queue de 14,3 mm et carré d'entraînement de 10,7 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E7111/4
GradeLumineux
Product Number5977662
Product FamilyE711

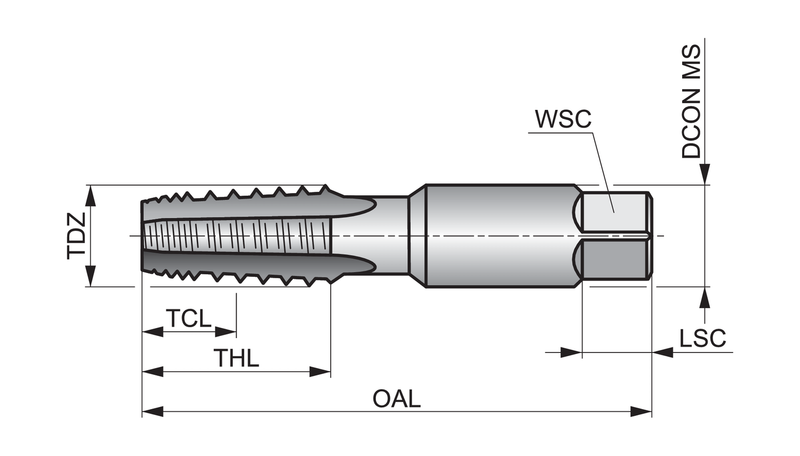

Dimensions
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.563"
Connection Dia. — mm (DCON)14.3 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.5402"
Thread Diameter — mm (TD)13.72 mm
Thread Form (THFT)NPT - Filetage conique national
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Standard~ANSI B94.9
Reference Numbers
EDP Number99940
EAN7320760099940
File Type Download
E7111/4 — Line Drawing PDF Download
