E600M10NO3
E600M10NO3
E600M10NO3

E600M10NO3

UGC DOR5977675
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.16 CAD - $57.16 CAD
$57.16 CAD
$57.16 CAD - $57.16 CAD
$57.16 CAD

Vendu en lots de : 1

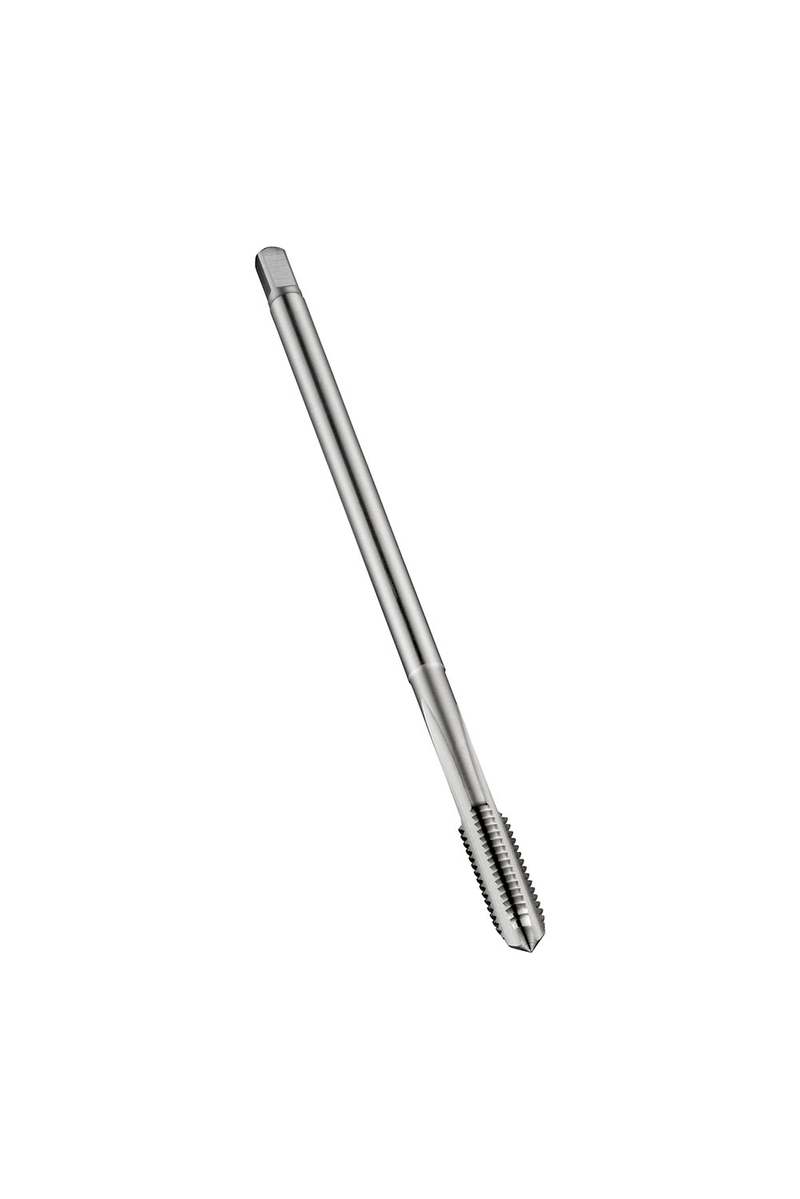

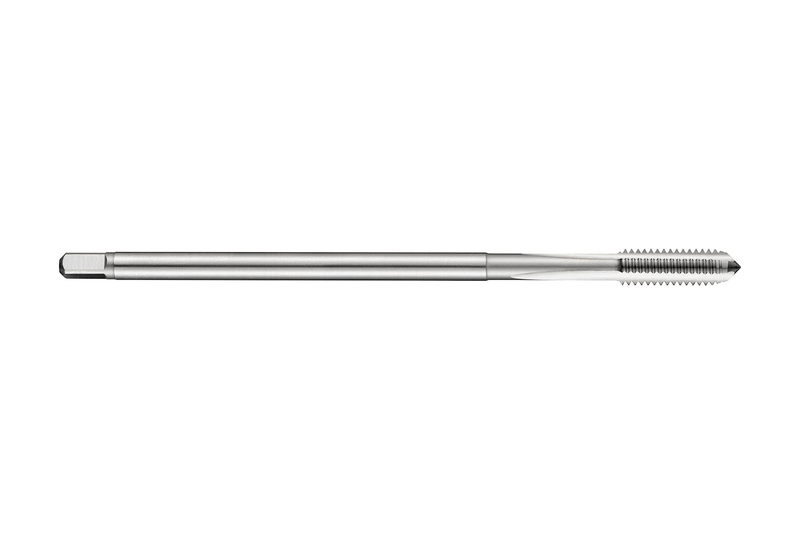

Taraud machine à queue longue NO3 à goujures droites, entrée 2-3 filets, pour filetage métrique ISO M10 avec un pas de 1,50 mm et une tolérance 6H, dimensions selon la norme ISO 2283, queue de 8,0 mm et carré d'entraînement de 6,3 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E600M10NO3
GradeLumineux
Product Number5977675
Product FamilyE600

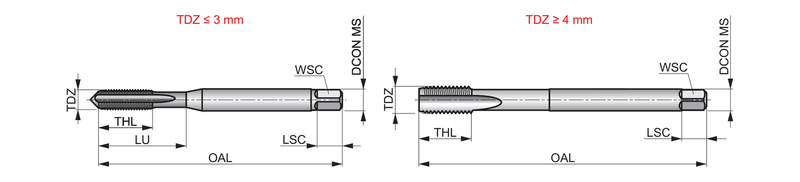

Dimensions
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number156100
EAN7320760156100
File Type Download
E600M10NO3 — Line Drawing PDF Download
