E605M10
E605M10
E605M10

E605M10

UGC DOR5977798
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.13 CAD - $155.13 CAD
$155.13 CAD
$155.13 CAD - $155.13 CAD
$155.13 CAD

Vendu en lots de : 1

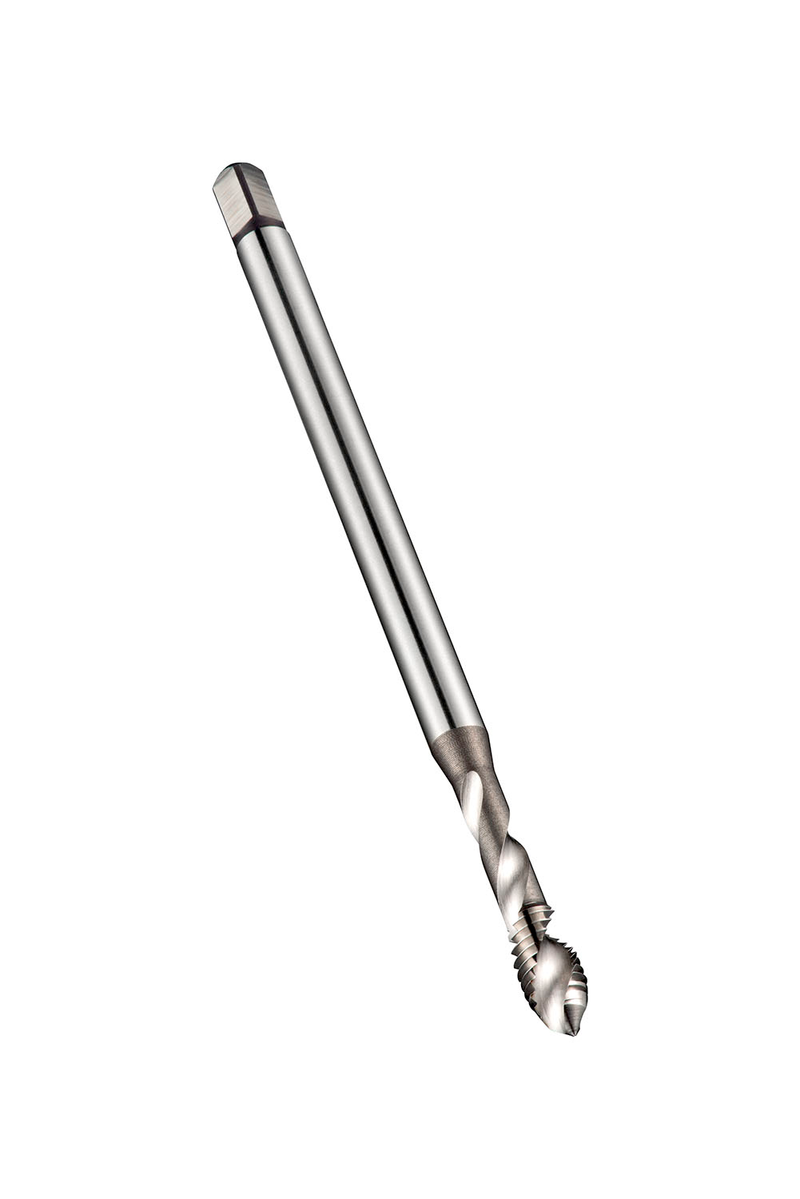

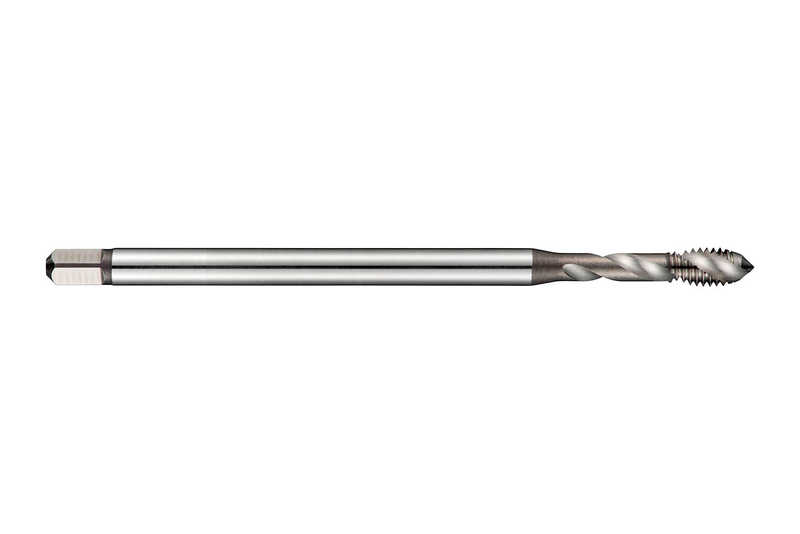

Taraud machine à goujures hélicoïdales et queue longue, chanfrein C avec entrée 2-3xP, pour filetages ISO-Métrique M10 au pas de 1,50 mm et de tolérance 6H, dimensions conformes à la norme ISO 2283, avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, en HSS-E PM avec finition brillante et un angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans l'acier non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E605M10
GradeLumineux
Product Number5977798
Product FamilyE605
Dimensions
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123898
EAN7320760123898
File Type Download

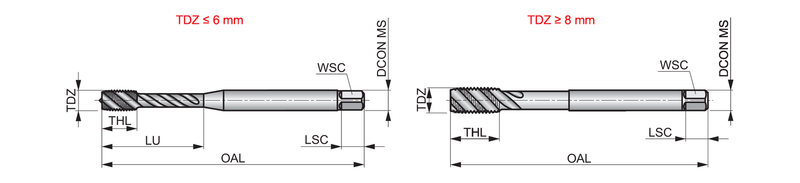

E605M10 — Line Drawing PDF Download
