UGC DOR5977820
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$308.07 CAD - $308.07 CAD
$308.07 CAD
$308.07 CAD - $308.07 CAD
$308.07 CAD

Vendu en lots de : 1

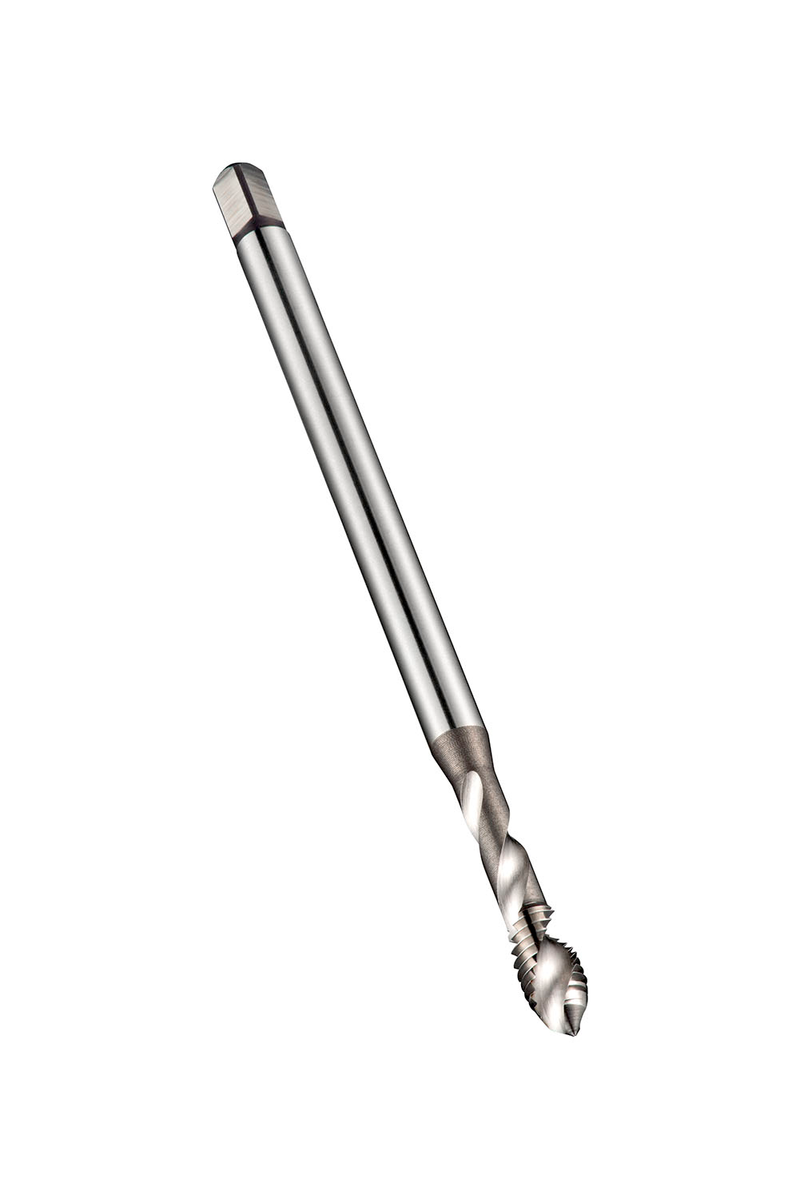

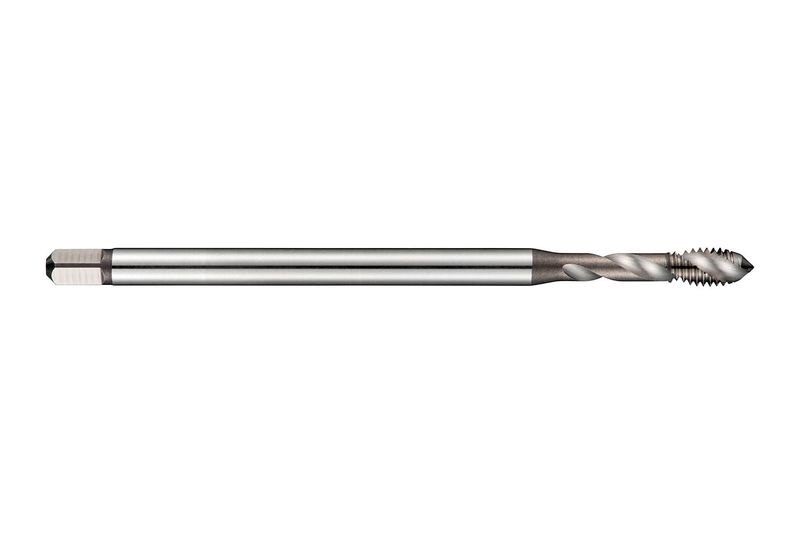

Taraud machine à goujures hélicoïdales longues avec chanfrein forme C et entrée 2-3xP, pour filet ISO-Métrique M16 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon norme ISO 2283 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS-E métallurgie des poudres avec finition brillante et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E605M16
GradeLumineux
Product Number5977820
Product FamilyE605

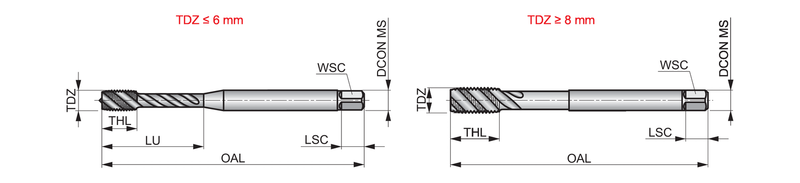

Dimensions
Overall Length — in (OAL)5.3937"
Overall Length — mm (OAL)137.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123928
EAN7320760123928
File Type Download
E605M16 — Line Drawing PDF Download
