F202M16
F202M16

F202M16

UGC DOR5977878
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$154.87 CAD - $154.87 CAD
$154.87 CAD
$154.87 CAD - $154.87 CAD
$154.87 CAD

Vendu en lots de : 1

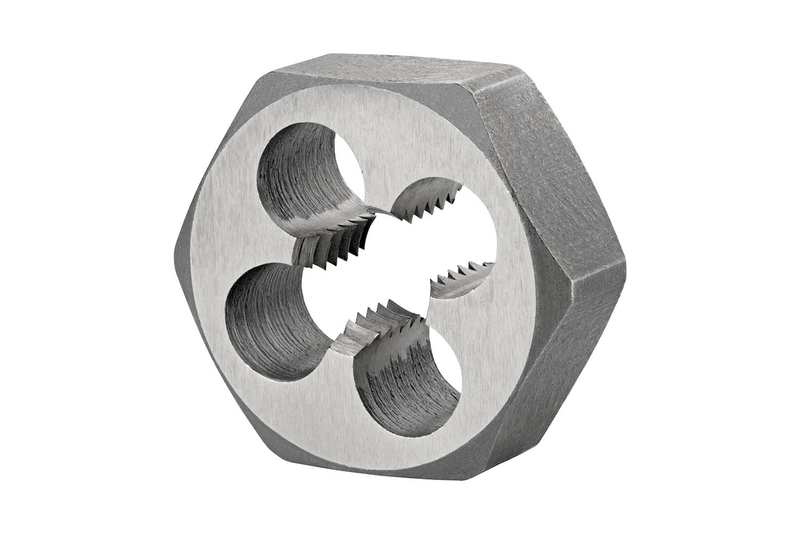

Filetage hexagonal, pour filet ISO métrique M16 avec pas de 2,00 mm et classe de tolérance 6g, dimensions selon la norme DIN 382 avec 41 mm de largeur sur plats et 18 mm d'épaisseur, HSS avec finition brillante pour la réparation de filets endommagés dans l'acier de décolletage et l'acier au carbone non allié, l'acier inoxydable ferritique et la fonte grise, malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F202M16
GradeLumineux
Product Number5977878
Product FamilyF202

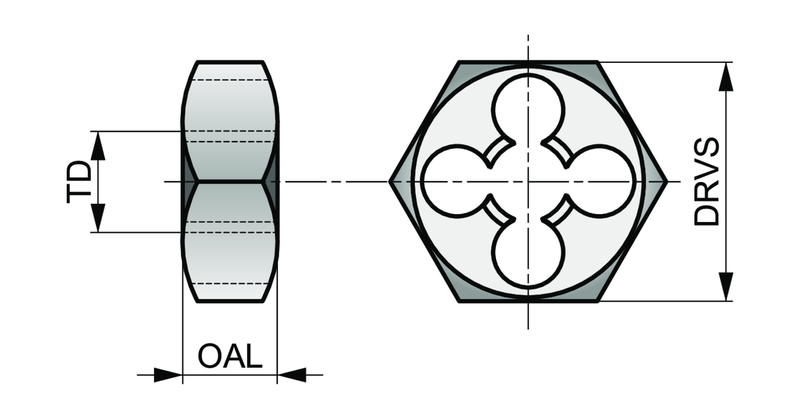

Dimensions
Overall Length — in (OAL)0.7087"
Overall Length — mm (OAL)18.0 mm
Threading
Thread Diameter Size (TDZ)16
Thread Diameter — mm (TD)16.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Tool Information
Direction of ToolD'accord
StandardDIN 382
Reference Numbers
EDP Number217061
EAN7320760217061
File Type Download
F202M16 — Line Drawing PDF Download
