F1403/16
F1403/16

F1403/16

UGC DOR5977910
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.90 CAD - $62.90 CAD
$62.90 CAD
$62.90 CAD - $62.90 CAD
$62.90 CAD

Vendu en lots de : 1

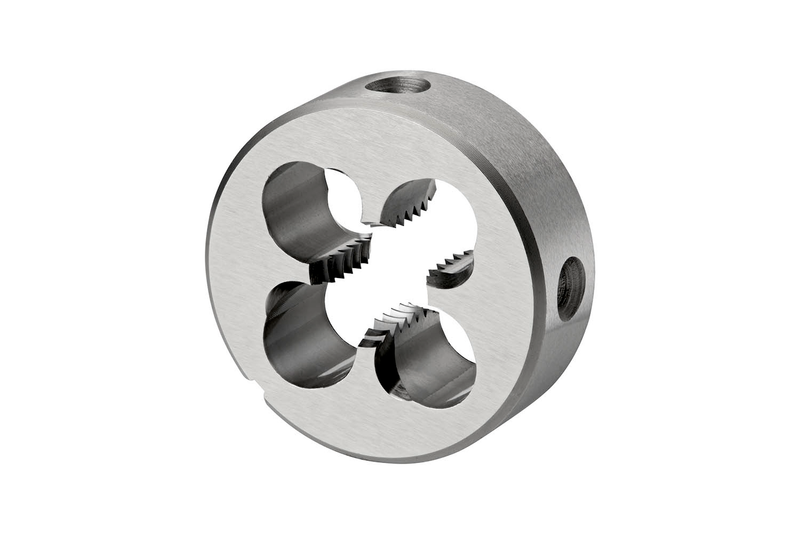

Filière ronde massive avec amorce longue, pour filetage British Standard Whitworth BSW 3/16" avec 24 filets par pouce et classe de tolérance moyenne, dimensions selon norme ISO 2568 avec 20mm de diamètre extérieur et 7mm d'épaisseur, HSS avec finition rectifiée-rodée pour filetage dans les aciers automates et aciers au carbone, aciers inoxydables ferritiques et fontes grises, malléables, ductiles et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F1403/16
GradeLumineux
Product Number5977910
Product FamilyF140

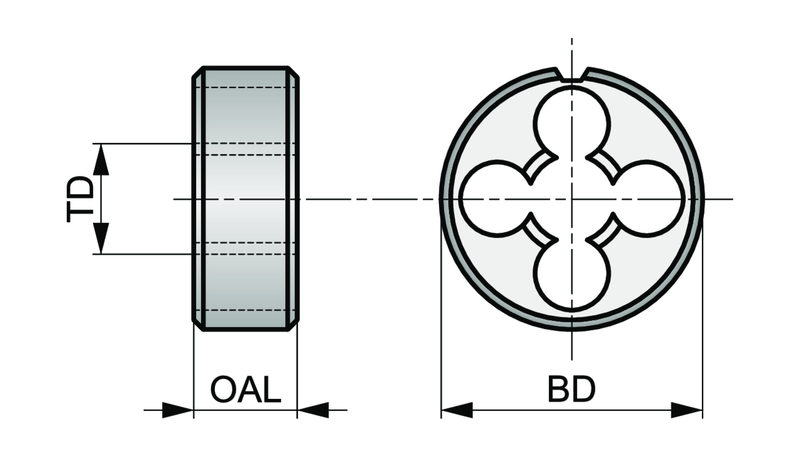

Dimensions
Overall Length — in (OAL)0.2756"
Overall Length — mm (OAL)7.0 mm
Threading
Thread Diameter Size (TDZ)3/16
Thread Diameter — mm (TD)4.76 mm
Thread Form (THFT)BSW - Filetage Whitworth britannique standard
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardISO 2568
Reference Numbers
EDP Number104644
EAN7320760104644
File Type Download
F1403/16 — Line Drawing PDF Download
