E605M4
E605M4
E605M4

E605M4

UGC DOR5977927
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.11 CAD - $75.11 CAD
$75.11 CAD
$75.11 CAD - $75.11 CAD
$75.11 CAD

Vendu en lots de : 1

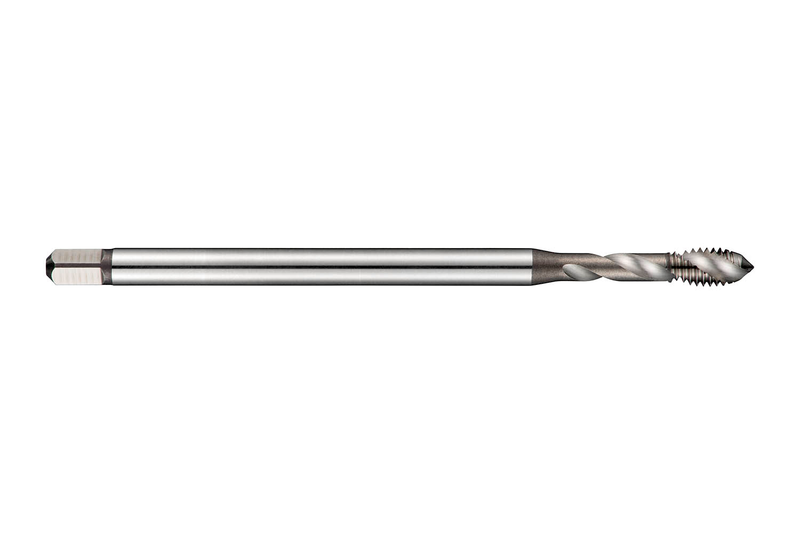

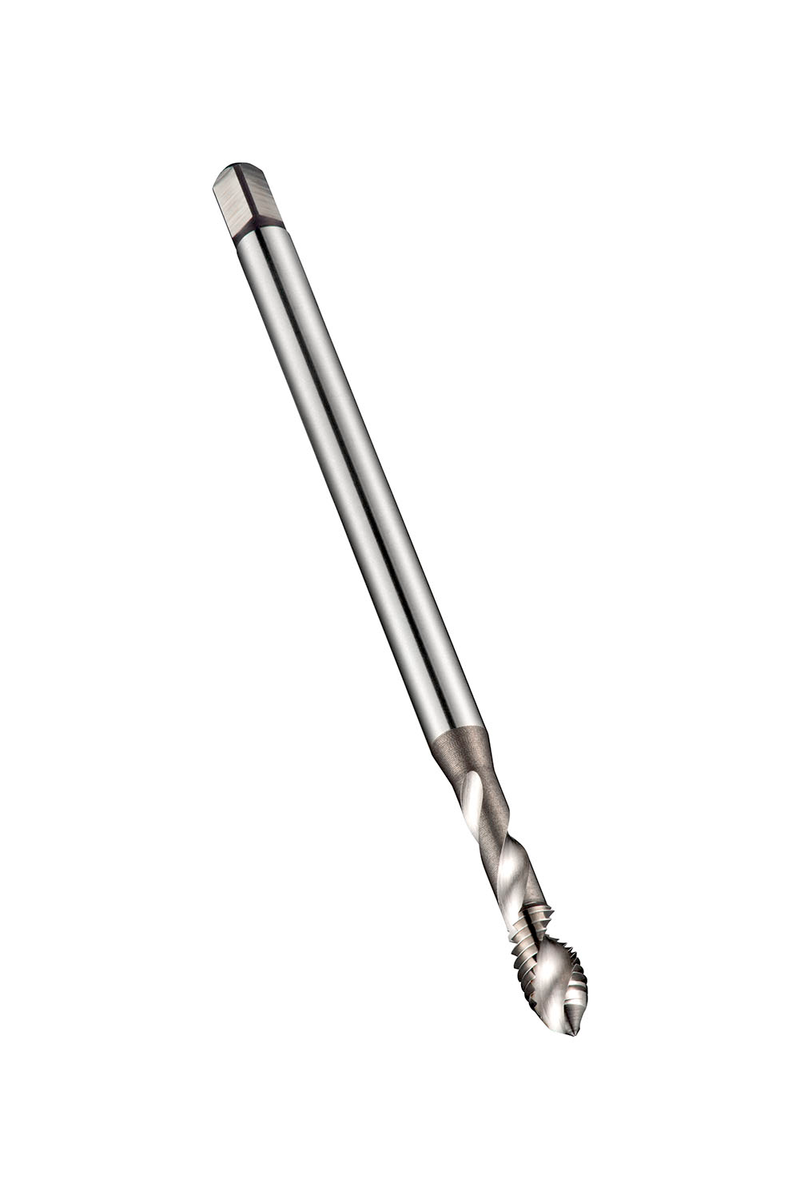

Taraud machine long à goujures hélicoïdales et entrée C (3-5 filets) pour filet métrique ISO M4 au pas de 0,70 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 2283, queue de 4,0 mm et carré d'entraînement de 3,15 mm, en HSS-E PM avec finition brillante et un angle d'hélice de 40° pour un filetage de trous borgnes jusqu'à 2xD dans les aciers non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E605M4
GradeLumineux
Product Number5977927
Product FamilyE605
Dimensions
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.8661"
Usable Length — mm (LU)22.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123850
EAN7320760123850
File Type Download

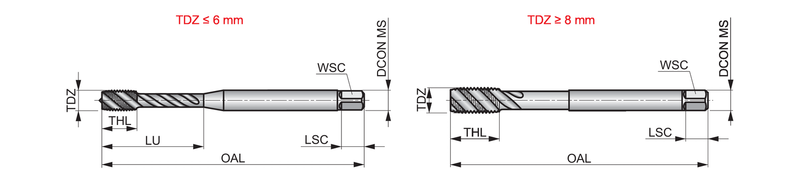

E605M4 — Line Drawing PDF Download
