UGC DOR5977935
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.44 CAD - $45.44 CAD
$45.44 CAD
$45.44 CAD - $45.44 CAD
$45.44 CAD

Vendu en lots de : 1

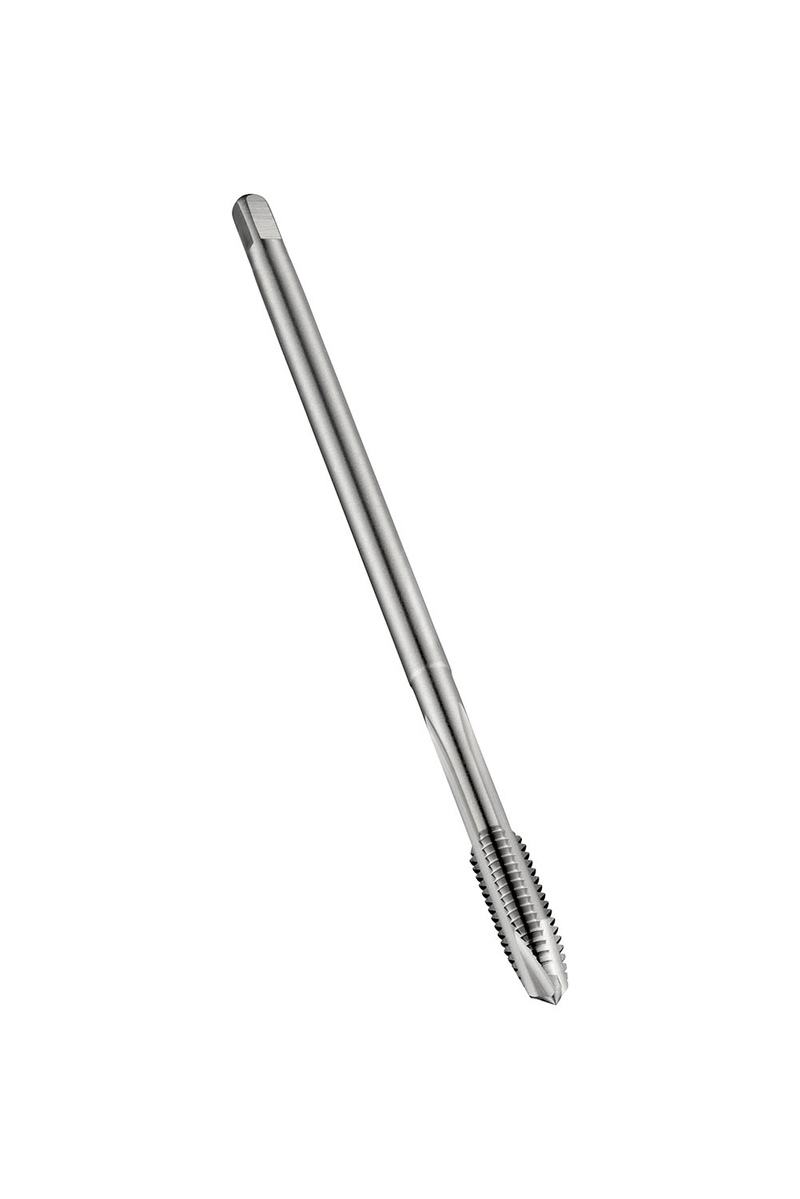

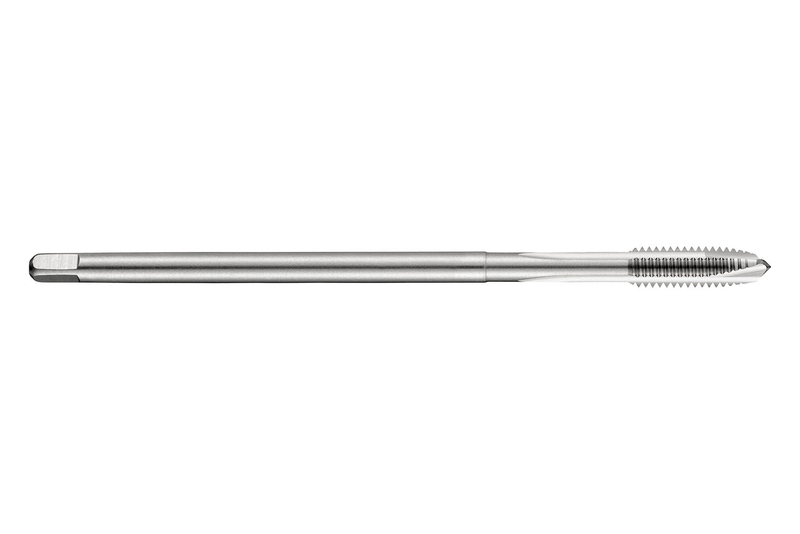

Taraud machine long à entrée hélicoïdale, forme B à 3.5-5 filets, pour filet métrique ISO M3 au pas de 0.50 mm et tolérance 6H, dimensions selon la norme ISO 2283 avec queue de 3.15mm et carré d'entraînement de 2.5mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E606M3
GradeLumineux
Product Number5977935
Product FamilyE606

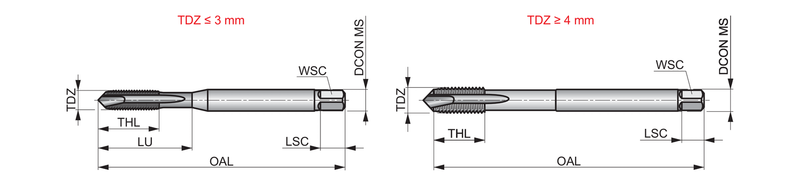

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123942
EAN7320760123942
File Type Download
E606M3 — Line Drawing PDF Download
