E606M4
E606M4
E606M4

E606M4

UGC DOR5977938
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.69 CAD - $39.69 CAD
$39.69 CAD
$39.69 CAD - $39.69 CAD
$39.69 CAD

Vendu en lots de : 1

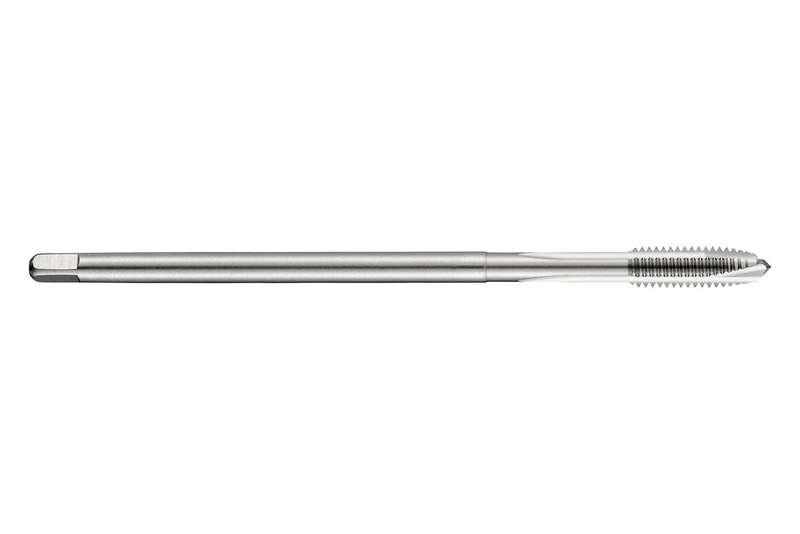

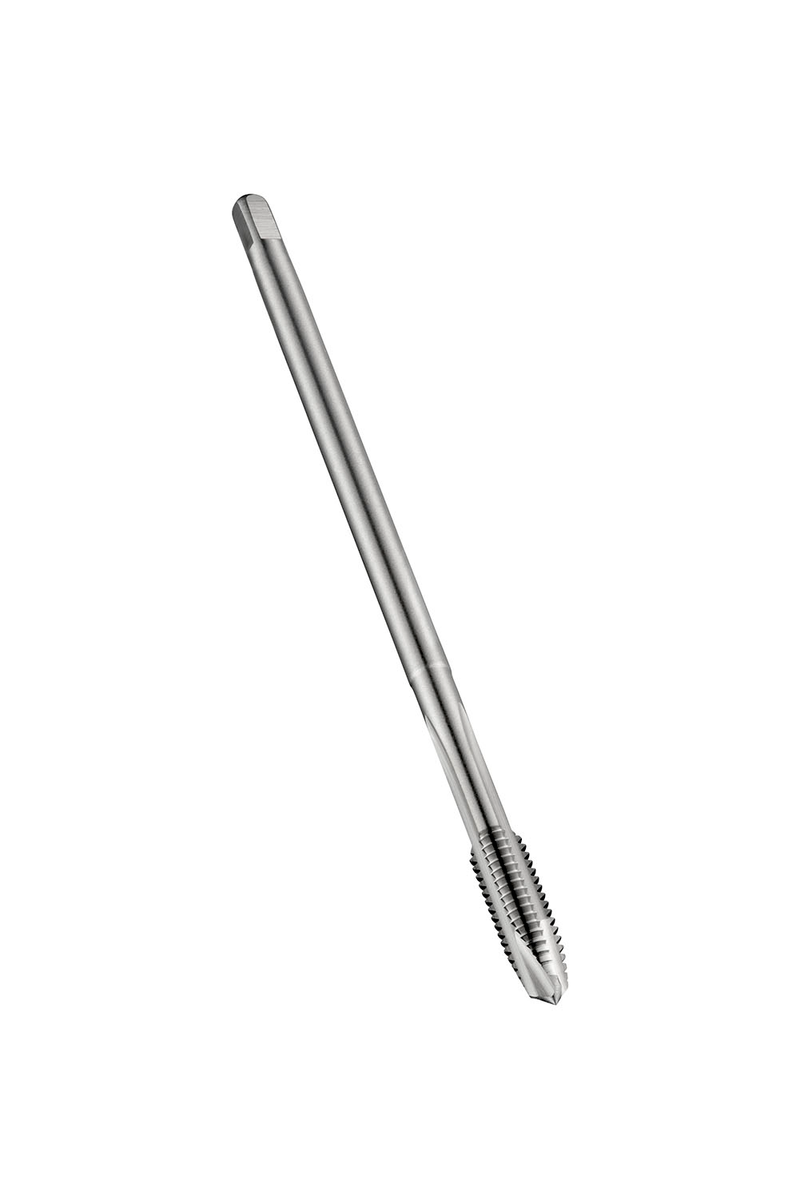

Taraud machine à pointe spirale à queue longue avec entrée B de 3,5 à 5 filets, pour filet métrique ISO M4 au pas de 0,70 mm et tolérance 6H, dimensions conformes à la norme ISO 2283 avec queue de 3,15 mm et carré d'entraînement de 2,5 mm, en HSS-E fritté avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E606M4
GradeLumineux
Product Number5977938
Product FamilyE606
Dimensions
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123959
EAN7320760123959
File Type Download

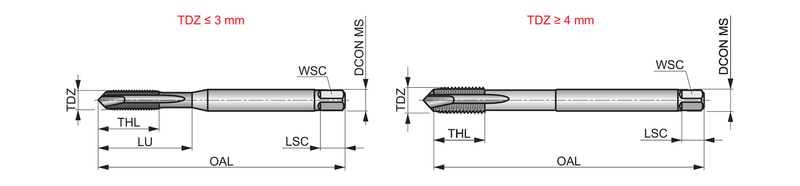

E606M4 — Line Drawing PDF Download
