F312M12X1.5
F312M12X1.5

F312M12X1.5

UGC DOR5977941
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.30 CAD - $107.30 CAD
$107.30 CAD
$107.30 CAD - $107.30 CAD
$107.30 CAD

Vendu en lots de : 1

Écrou hexagonal, pour filetage fin ISO-métrique M12 au pas de 1,50 mm et de classe 6g, dimensions selon la norme BS 1127:1950 avec une largeur sur plats de 1,0100" et une épaisseur de 7/16", HSS avec finition brillante pour la réparation de filetages endommagés dans les aciers à usinage libre et aciers au carbone non alliés, les aciers inoxydables ferritiques et les fontes grises, malléables, à graphite sphéroïdal et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI)F312M12X1.5
Product Name (ISO)F312M12X1,5
GradeLumineux
Product Number5977941
Product FamilyF312
Dimensions
Overall Length — in (OAL)0.4375"
Overall Length — mm (OAL)11.11 mm
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — mm (TD)12.0 mm
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolD'accord
StandardBS 1127:1950
Reference Numbers
EDP Number206416
EAN7320760206416
File Type Download

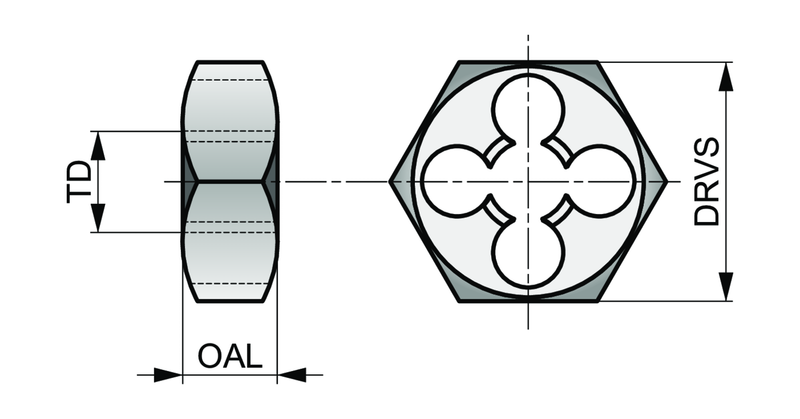

F312M12X1.5 — Line Drawing PDF Download
