UGC DOR5977955
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.73 CAD - $82.73 CAD
$82.73 CAD
$82.73 CAD - $82.73 CAD
$82.73 CAD

Vendu en lots de : 1

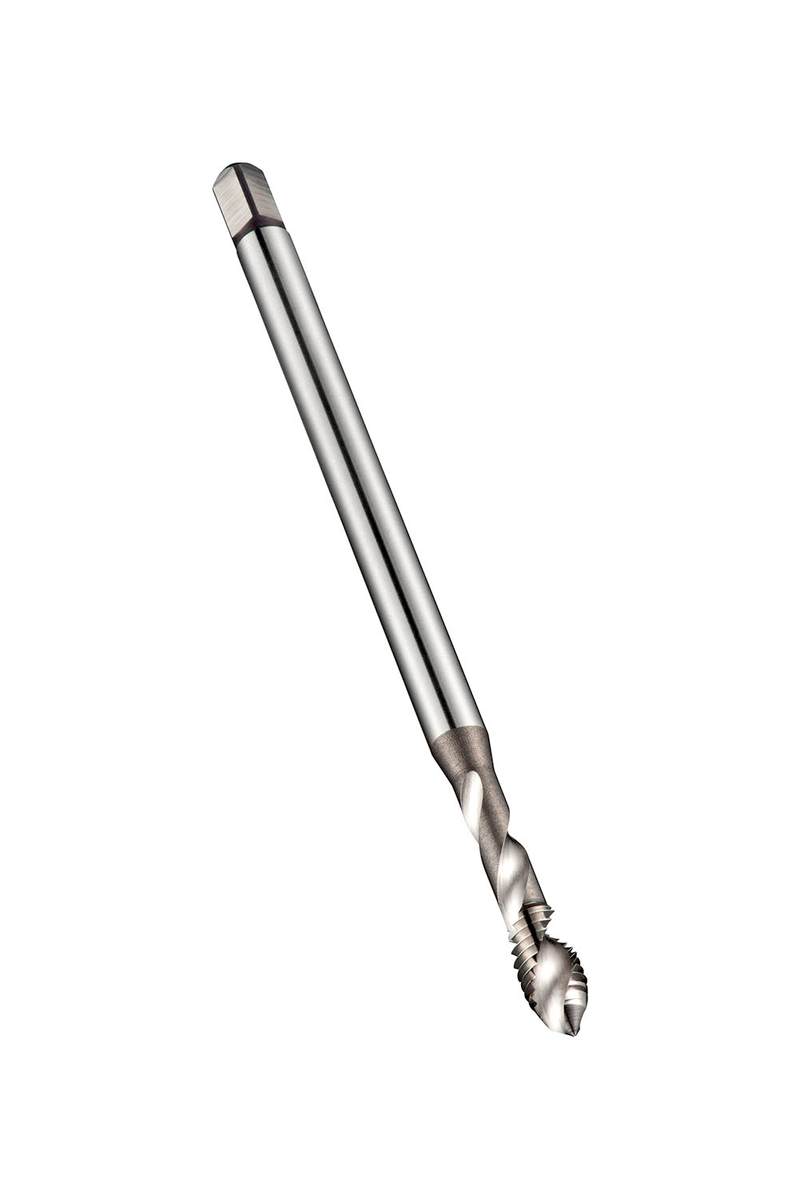

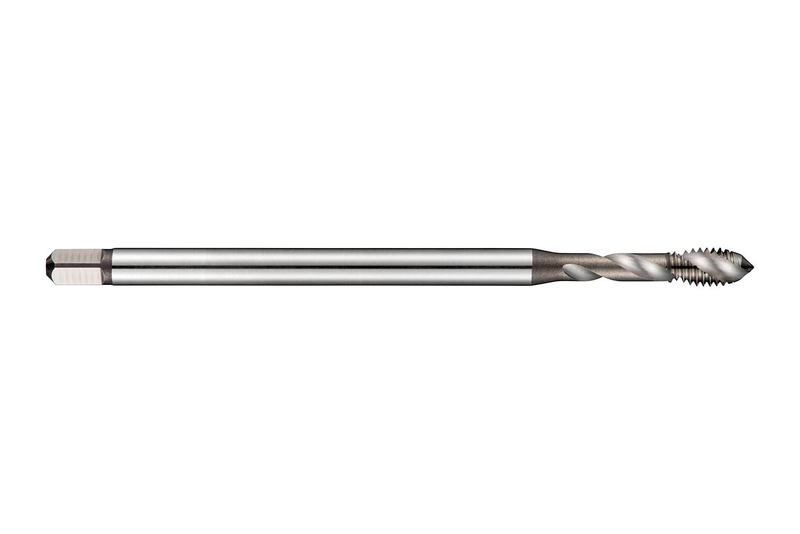

Taraud machine long à goujures hélicoïdales avec entrée C (chanfrein d'attaque de 2-3 filets), pour filetage ISO métrique M5 au pas de 0,80 mm et tolérance 6H, dimensions selon la norme ISO 2283 avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, en HSS-E fritté finition brillante avec un angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans les aciers non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E605M5
GradeLumineux
Product Number5977955
Product FamilyE605

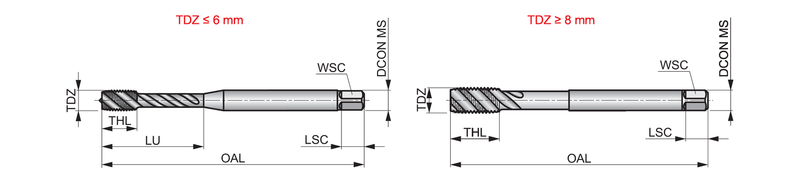

Dimensions
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123867
EAN7320760123867
File Type Download
E605M5 — Line Drawing PDF Download
