E605M6
E605M6
E605M6

E605M6

UGC DOR5977985
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.10 CAD - $81.10 CAD
$81.10 CAD
$81.10 CAD - $81.10 CAD
$81.10 CAD

Vendu en lots de : 1

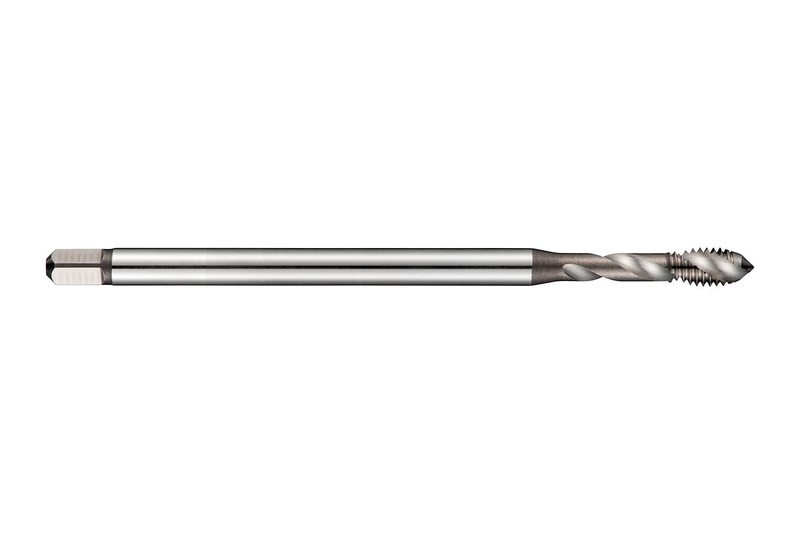

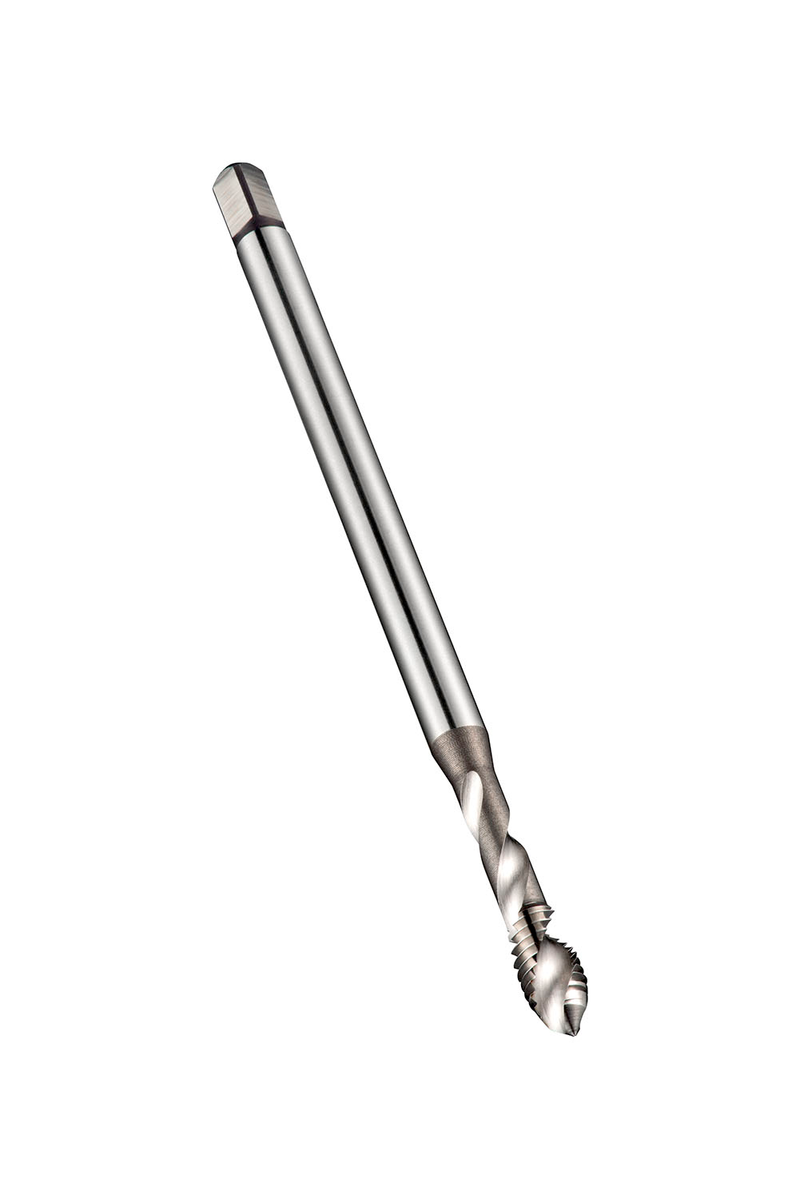

Taraud machine à coupe à droite à goujures hélicoïdales (40°), queue longue, entrée C (2-3 filets), pour filetage métrique ISO M6 au pas de 1.00 mm et de tolérance 6H, dimensions selon la norme ISO 2283, avec queue de 6.3mm et carré d'entraînement de 5.0mm, en HSS-E PM avec finition brillante, pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E605M6
GradeLumineux
Product Number5977985
Product FamilyE605

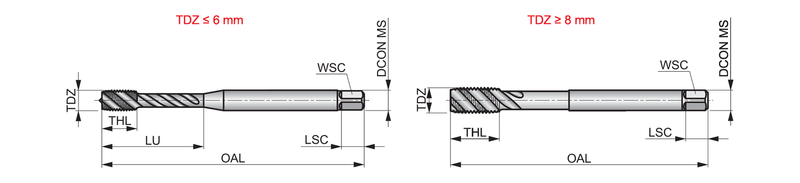

Dimensions
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.1417"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123874
EAN7320760123874
File Type Download
E605M6 — Line Drawing PDF Download
