E605M8
E605M8
E605M8

E605M8

UGC DOR5978017
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.87 CAD - $102.87 CAD
$102.87 CAD
$102.87 CAD - $102.87 CAD
$102.87 CAD

Vendu en lots de : 1

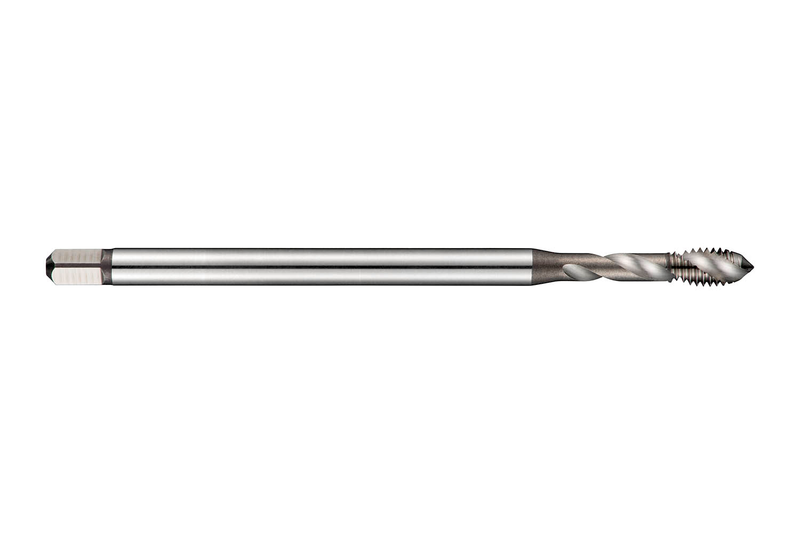

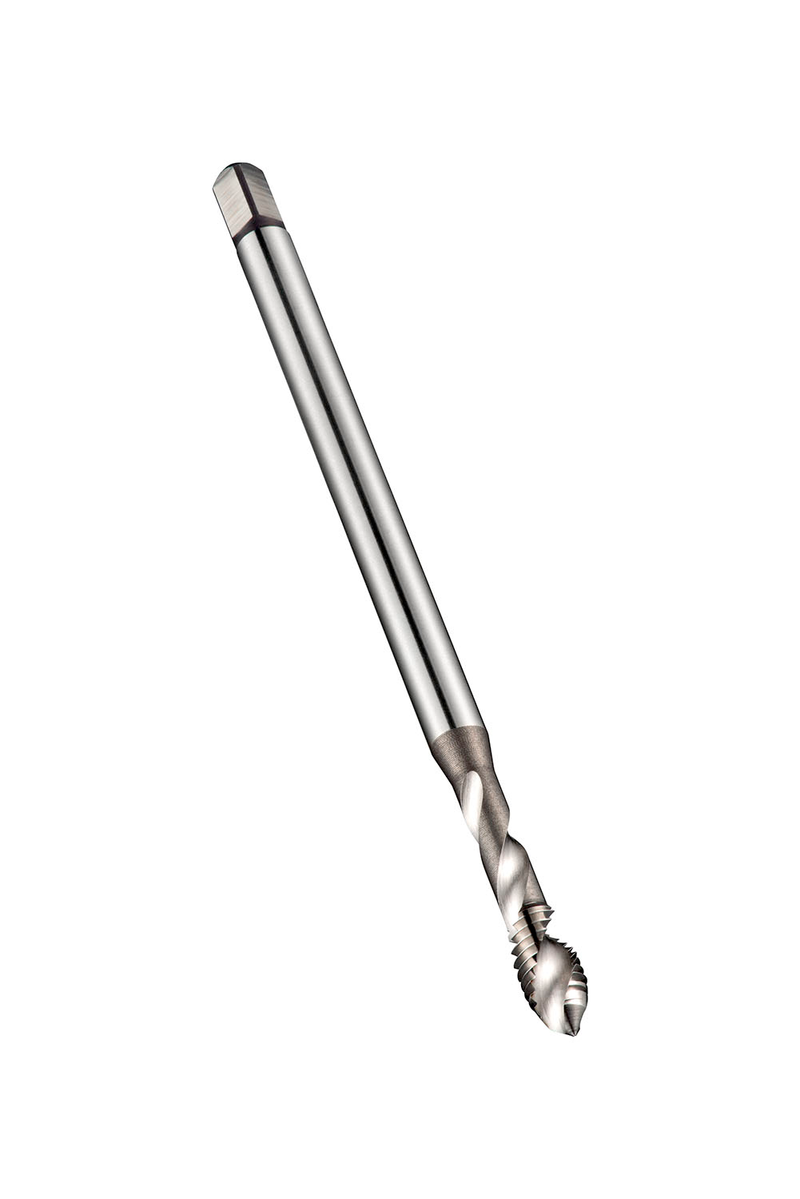

Taraud machine long, hélice à 40°, en HSS-E PM, avec entrée C (2-3 filets) et finition brillante, pour la production de filets métriques M8x1,25 6H dans des trous borgnes jusqu'à 2xD, selon la norme ISO 2283, avec queue de 6,3 mm et carré d'entraînement de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E605M8
GradeLumineux
Product Number5978017
Product FamilyE605

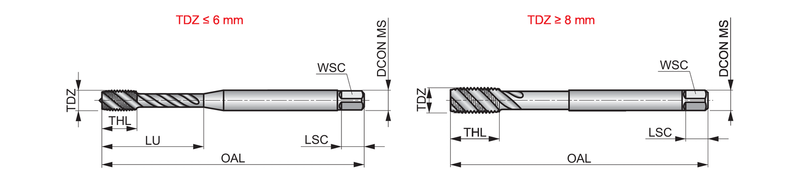

Dimensions
Overall Length — in (OAL)3.8189"
Overall Length — mm (OAL)97.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123881
EAN7320760123881
File Type Download
E605M8 — Line Drawing PDF Download
