E606M10
E606M10
E606M10

E606M10

UGC DOR5978068
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.59 CAD - $68.59 CAD
$68.59 CAD
$68.59 CAD - $68.59 CAD
$68.59 CAD

Vendu en lots de : 1

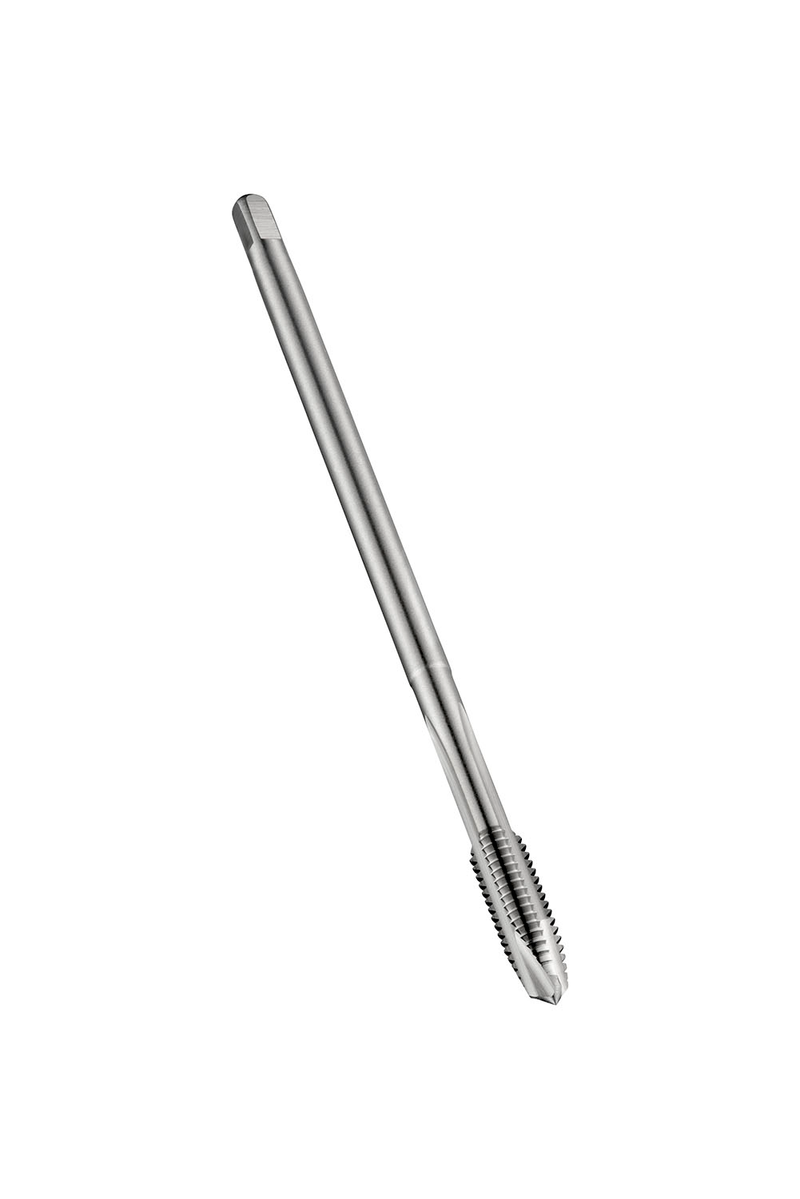

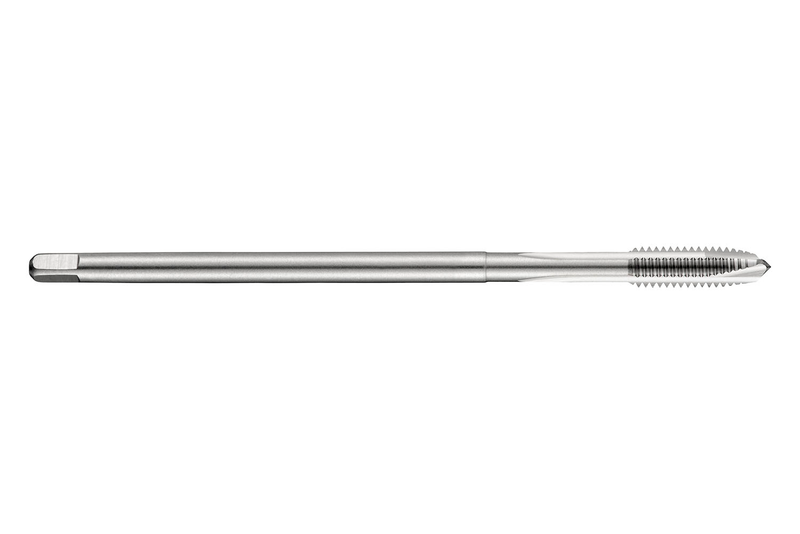

Taraud machine à pointe spirale à longue queue avec entrée B (3,5-5 filets) pour filetage métrique ISO M10 au pas de 1,50 mm et tolérance 6H, dimensions conformes à la norme ISO 2283 avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E606M10
GradeLumineux
Product Number5978068
Product FamilyE606

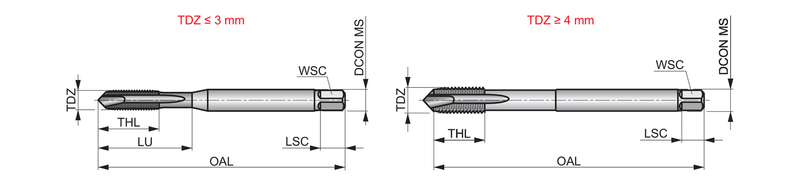

Dimensions
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number123997
EAN7320760123997
File Type Download
E606M10 — Line Drawing PDF Download
