E620M4
E620M4
E620M4

E620M4

UGC DOR5978072
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.44 CAD - $32.44 CAD
$32.44 CAD
$32.44 CAD - $32.44 CAD
$32.44 CAD

Vendu en lots de : 1

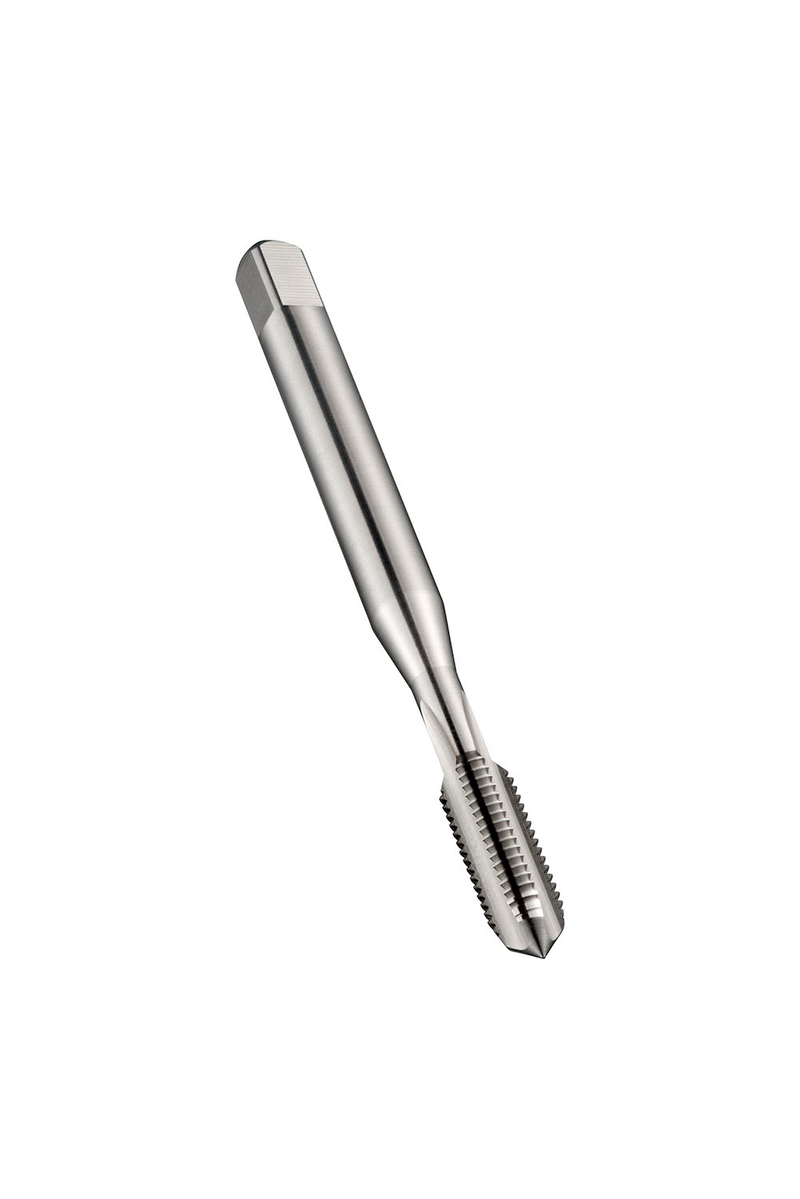

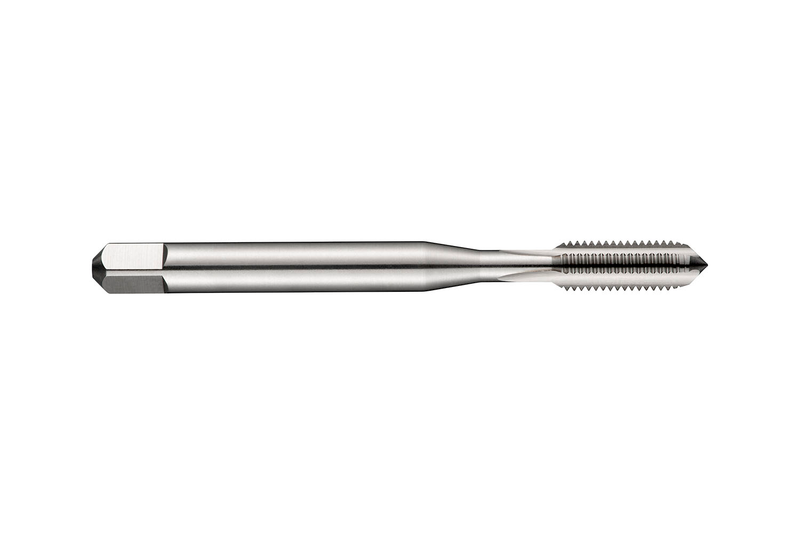

Taraud droit avec chanfrein forme C, 2-3xP, pour filetage rapporté métrique (Einsatzgewinde Metrisch) EGM4 avec un pas de 0,70 mm et une classe de tolérance 6H, dimensions conformes à la norme DORMER-ISO avec une queue de 5,0 mm et un carré d'entraînement de 4,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E620M4
GradeLumineux
Product Number5978072
Product FamilyE620

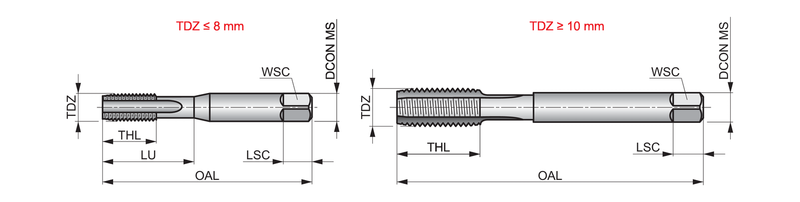

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Diameter — in (TD)0.1933"
Thread Diameter — mm (TD)4.91 mm
Thread Form (THFT)EGM - EGM (Insert de fil)
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number384831
EAN7320760384831
File Type Download
E620M4 — Line Drawing PDF Download
