E606M16
E606M16
E606M16

E606M16

UGC DOR5978086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$203.56 CAD - $203.56 CAD
$203.56 CAD
$203.56 CAD - $203.56 CAD
$203.56 CAD

Vendu en lots de : 1

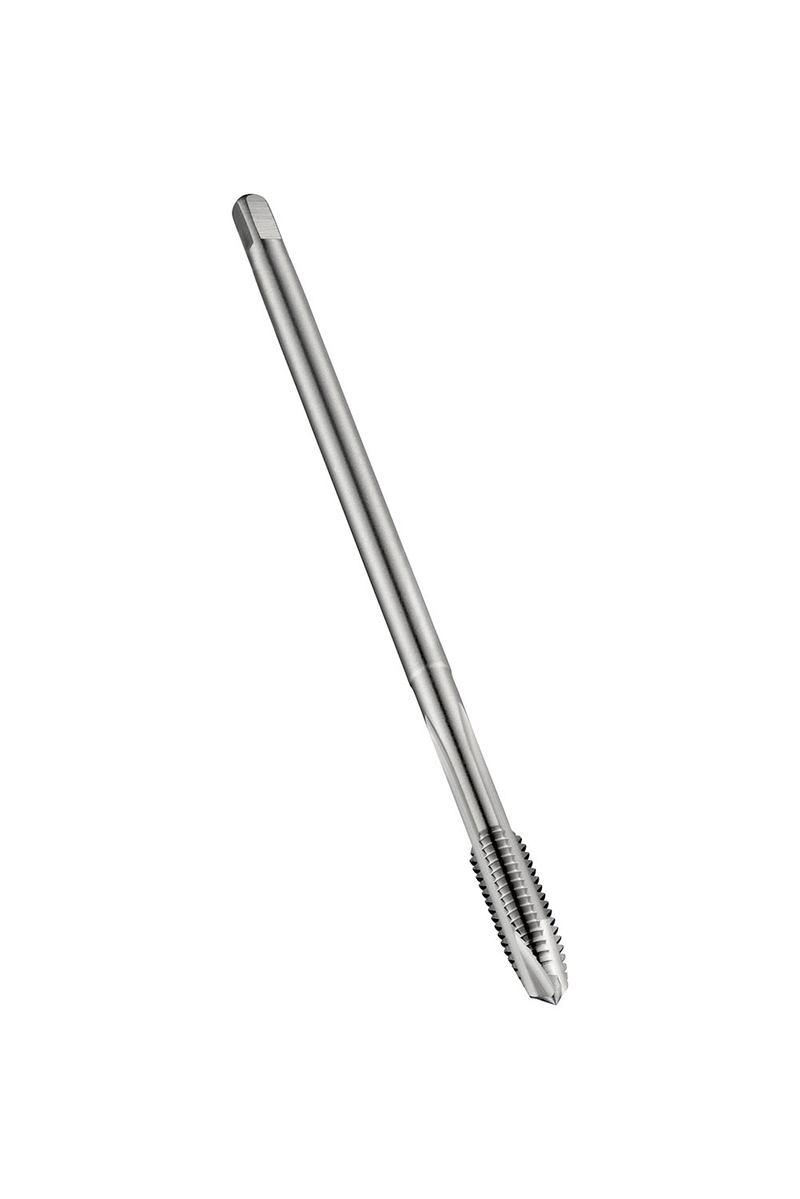

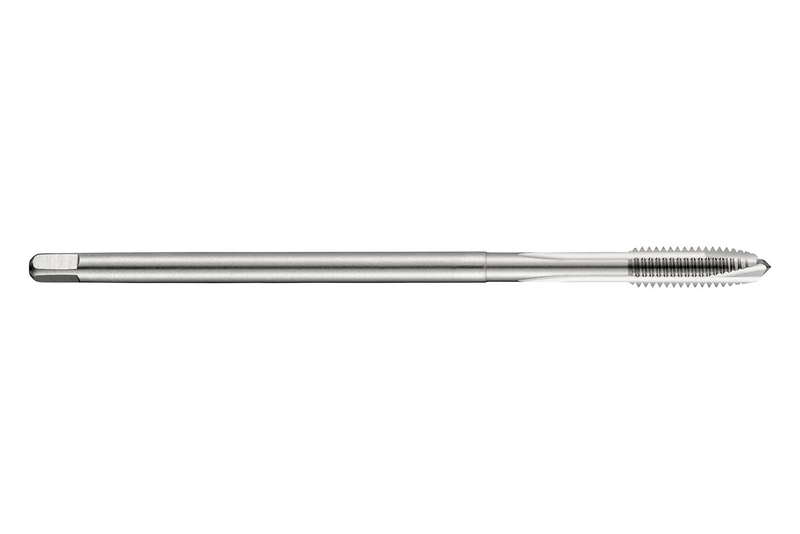

Taraud machine long à pointe spirale avec entrée B 3.5-5xP, pour filet métrique ISO M16 au pas de 2,00 mm et de classe de tolérance 6H, dimensions selon la norme ISO 2283 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en poudre métallurgique HSS-E avec finition brillante pour le taraudage de trous débouchants de 2.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E606M16
GradeLumineux
Product Number5978086
Product FamilyE606

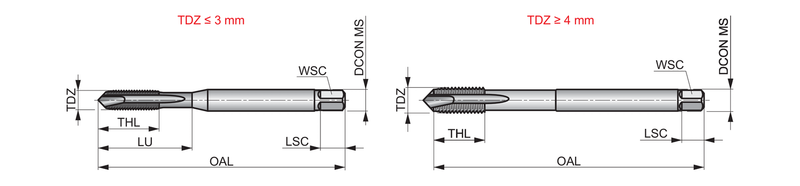

Dimensions
Overall Length — in (OAL)5.3937"
Overall Length — mm (OAL)137.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2283
Reference Numbers
EDP Number124024
EAN7320760124024
File Type Download
E606M16 — Line Drawing PDF Download
