E650M10
E650M10
E650M10

E650M10

UGC DOR5978304
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.19 CAD - $53.19 CAD
$53.19 CAD
$53.19 CAD - $53.19 CAD
$53.19 CAD

Vendu en lots de : 1

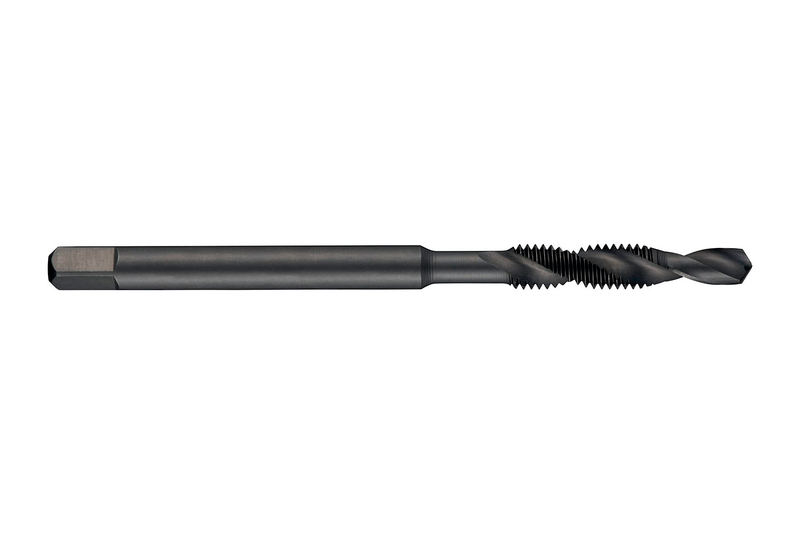

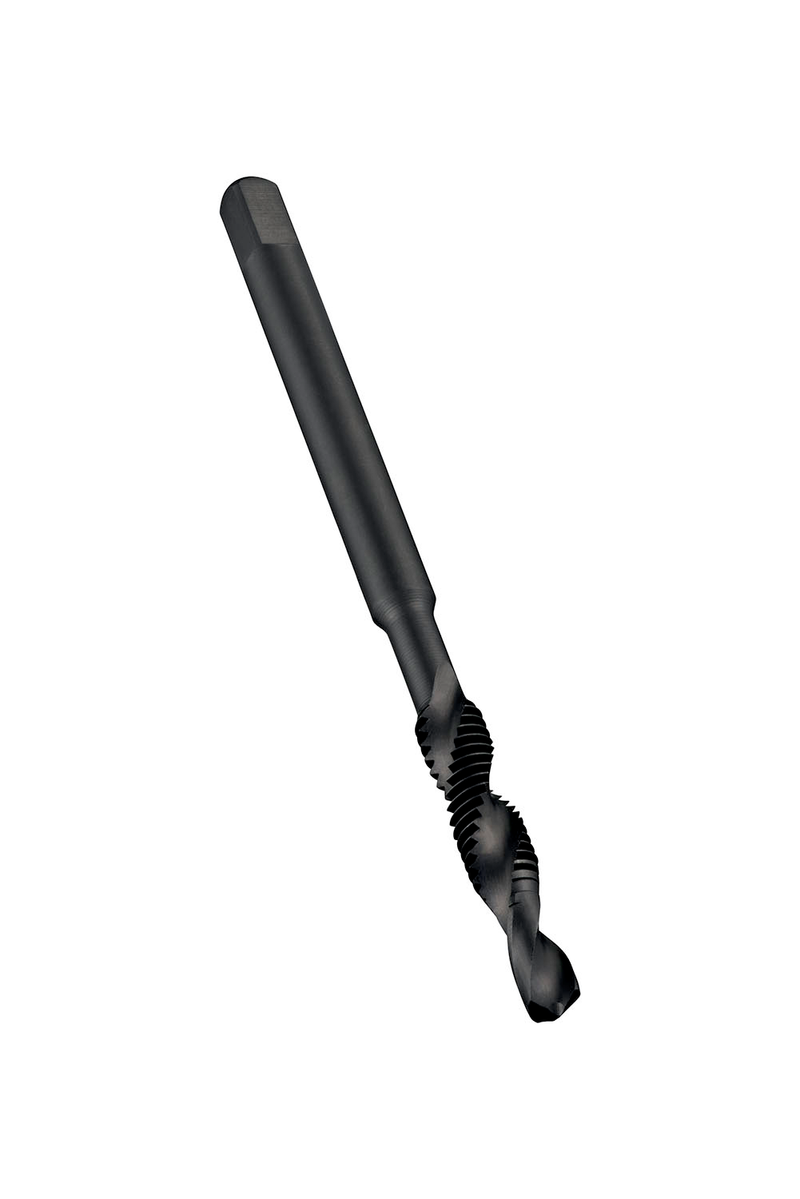

Taraud-foret combiné à goujure hélicoïdale de 30°, pour filetage métrique ISO M10 au pas de 1,50 mm et classe de tolérance 6H, dimensions conformes à la norme DORMER-ISO avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS avec traitement de surface revenu à la vapeur et angle d'hélice de 30° pour le taraudage de trous traversants de 1,5xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E650M10
GradeTrempé à la vapeur
Product Number5978304
Product FamilyE650

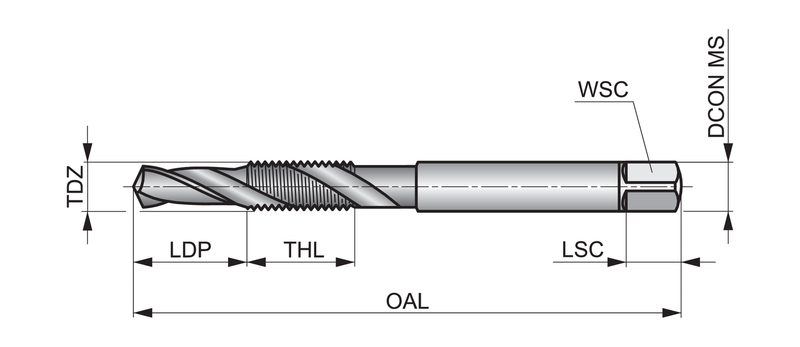

Dimensions
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)10
Thread Diameter — in (TD)0.3346"
Thread Diameter — mm (TD)8.5 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127513
EAN7320760127513
File Type Download
E650M10 — Line Drawing PDF Download
