UGC DOR5978308
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.64 CAD - $88.64 CAD
$88.64 CAD
$88.64 CAD - $88.64 CAD
$88.64 CAD

Vendu en lots de : 1

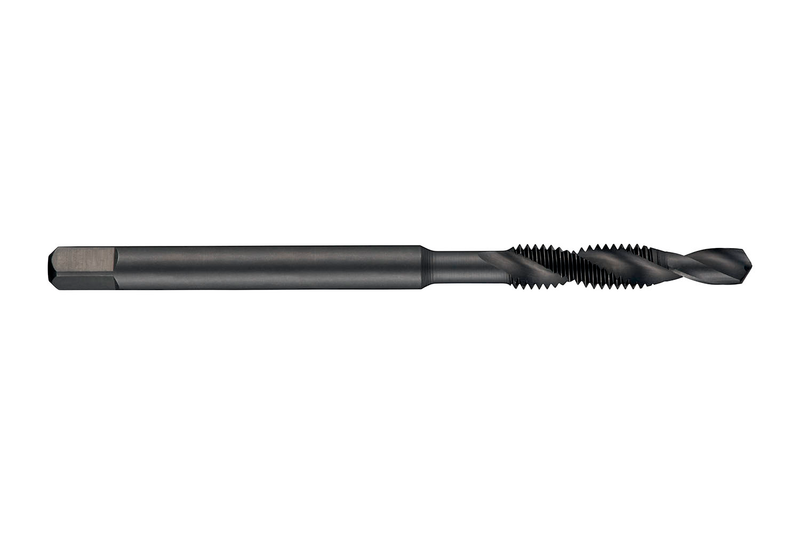

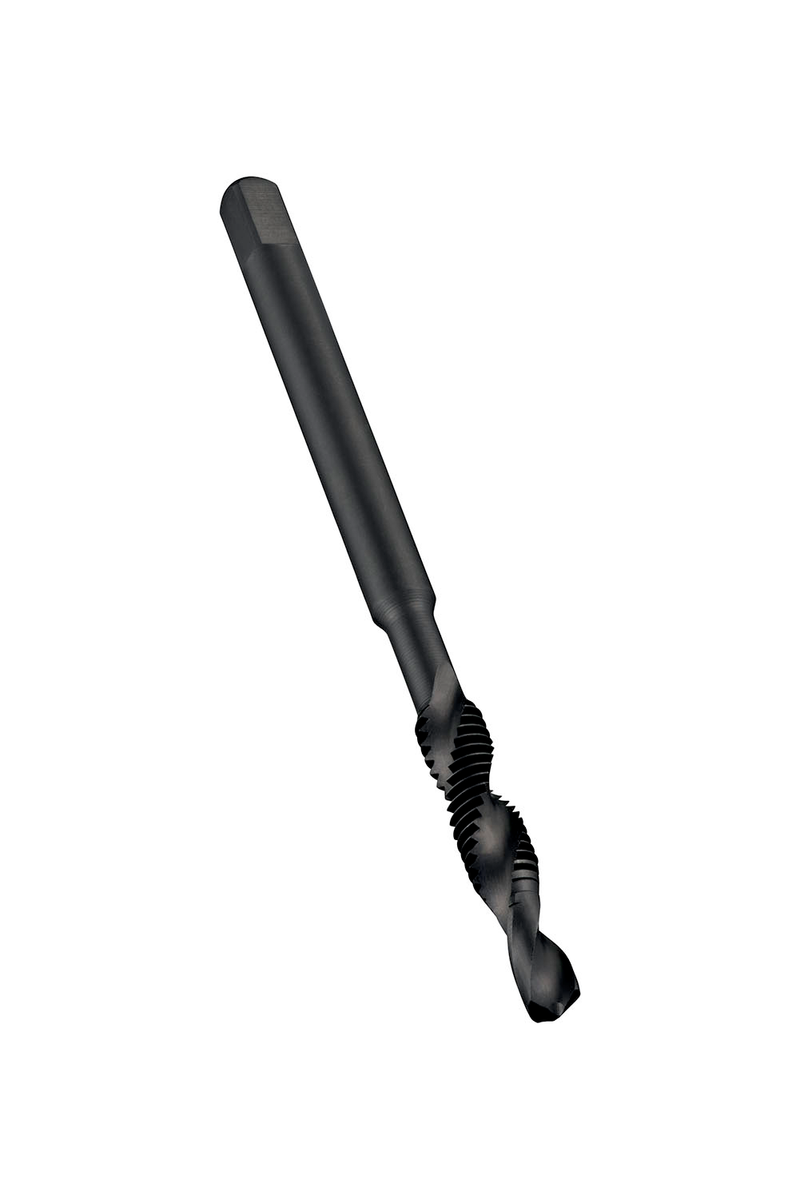

Forets taraudeurs combinés à goujure hélicoïdale de 30°, pour filetage métrique ISO M12 au pas de 1,75 mm et de classe de tolérance 6H, dimensions conformes à la norme DORMER-ISO avec queue de 9,0 mm et carré d'entraînement de 7,1 mm, en HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants de 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E650M12
GradeTrempé à la vapeur
Product Number5978308
Product FamilyE650

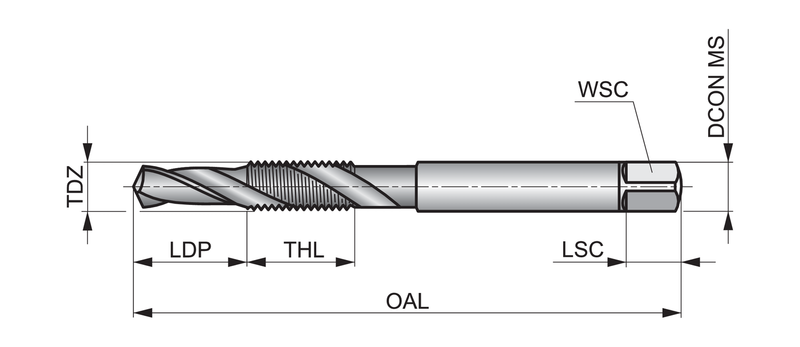

Dimensions
Overall Length — in (OAL)4.4488"
Overall Length — mm (OAL)113.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — in (TD)0.4016"
Thread Diameter — mm (TD)10.2 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127520
EAN7320760127520
File Type Download
E650M12 — Line Drawing PDF Download
