UGC DOR5978313
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.67 CAD - $125.67 CAD
$125.67 CAD
$125.67 CAD - $125.67 CAD
$125.67 CAD

Vendu en lots de : 1

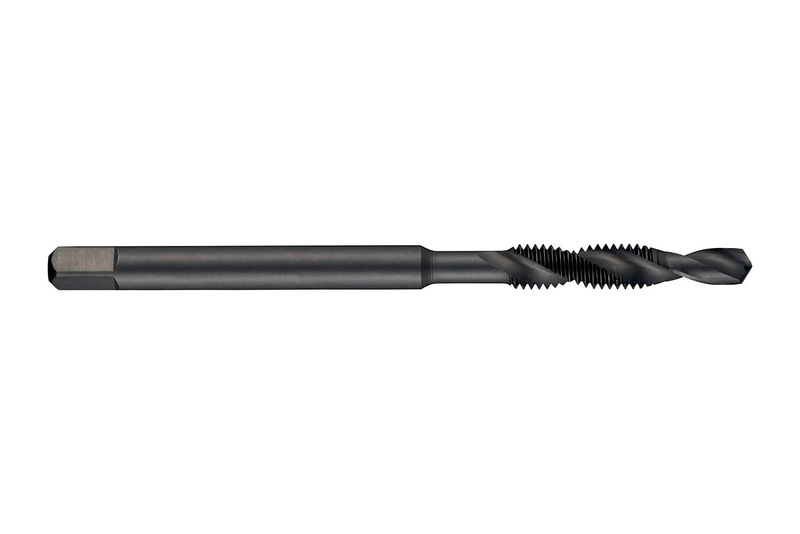

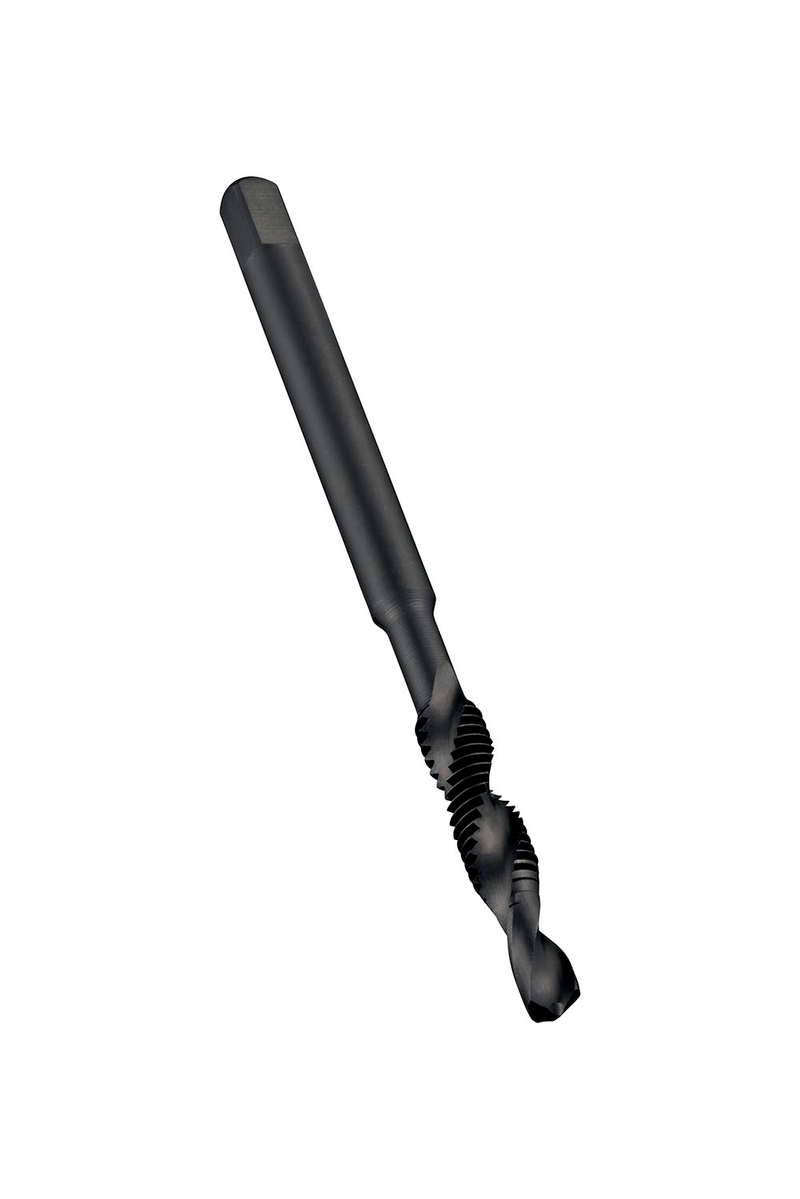

Taraud-foret combiné à goujure hélicoïdale de 30°, pour filetage ISO-métrique M14 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 11,2 mm et carré d'entraînement de 9,0 mm, HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants 1.5xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E650M14
GradeTrempé à la vapeur
Product Number5978313
Product FamilyE650

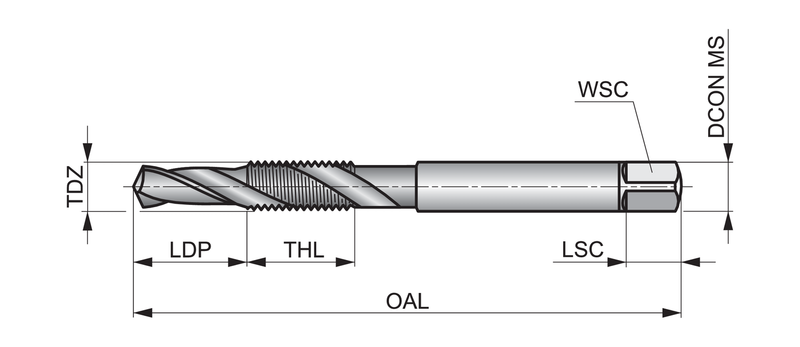

Dimensions
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4409"
Connection Dia. — mm (DCON)11.2 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)14
Thread Diameter — in (TD)0.4724"
Thread Diameter — mm (TD)12.0 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127537
EAN7320760127537
File Type Download
E650M14 — Line Drawing PDF Download
