UGC DOR5978320
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$159.56 CAD - $159.56 CAD
$159.56 CAD
$159.56 CAD - $159.56 CAD
$159.56 CAD

Vendu en lots de : 1

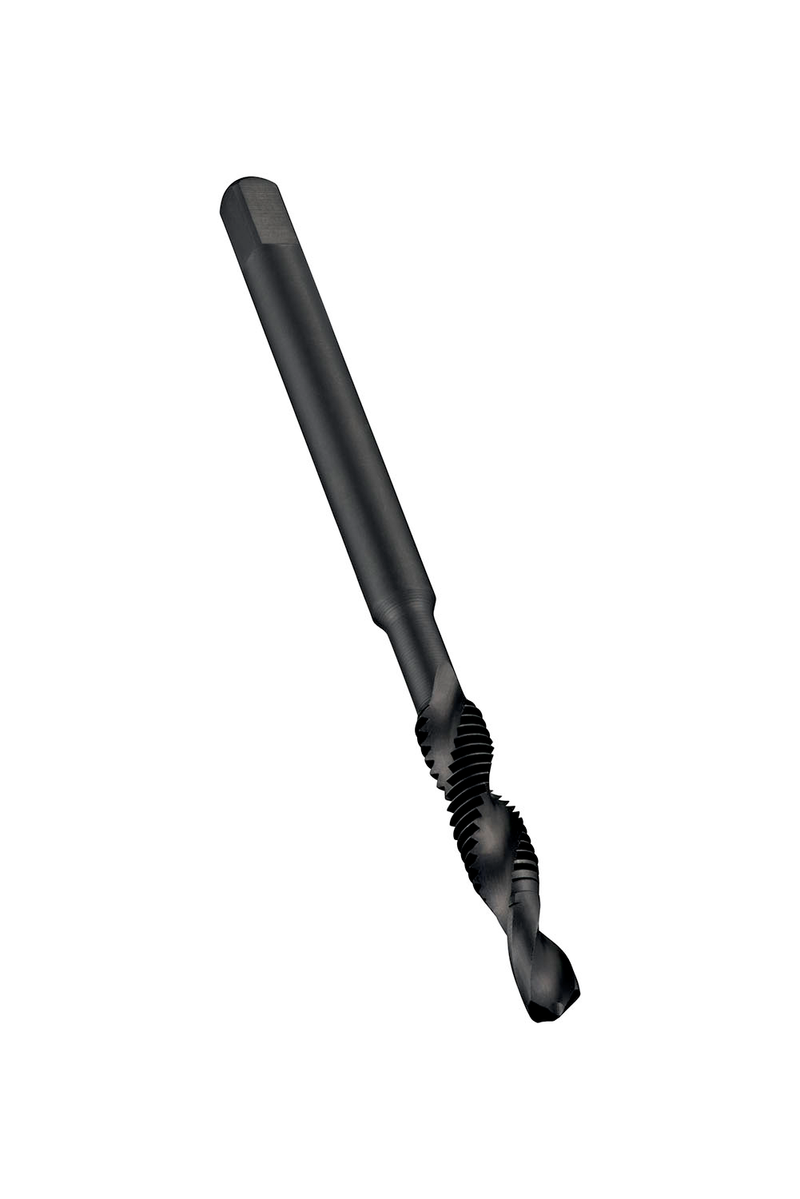

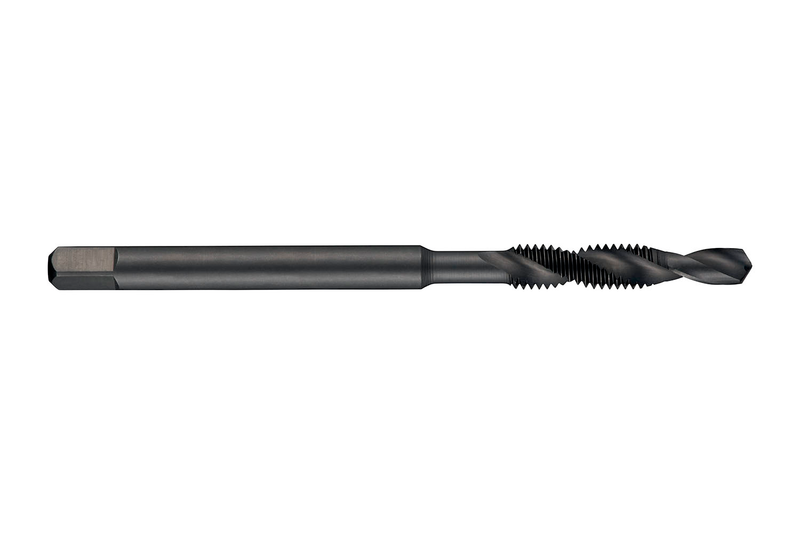

Forets taraudeurs combinés à goujure hélicoïdale de 30°, pour filetage ISO-métrique M16 au pas de 2,00 mm et classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous traversants de 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E650M16
GradeTrempe vapeur
Product Number5978320
Product FamilyE650

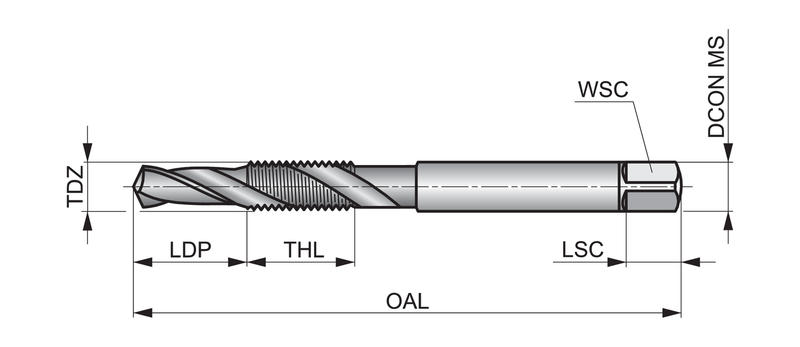

Dimensions
Overall Length — in (OAL)5.2756"
Overall Length — mm (OAL)134.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)16
Thread Diameter — in (TD)0.5512"
Thread Diameter — mm (TD)14.0 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127544
EAN7320760127544
File Type Download
E650M16 — Line Drawing PDF Download
