UGC DOR5978339
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.83 CAD - $29.83 CAD
$29.83 CAD
$29.83 CAD - $29.83 CAD
$29.83 CAD

Vendu en lots de : 1

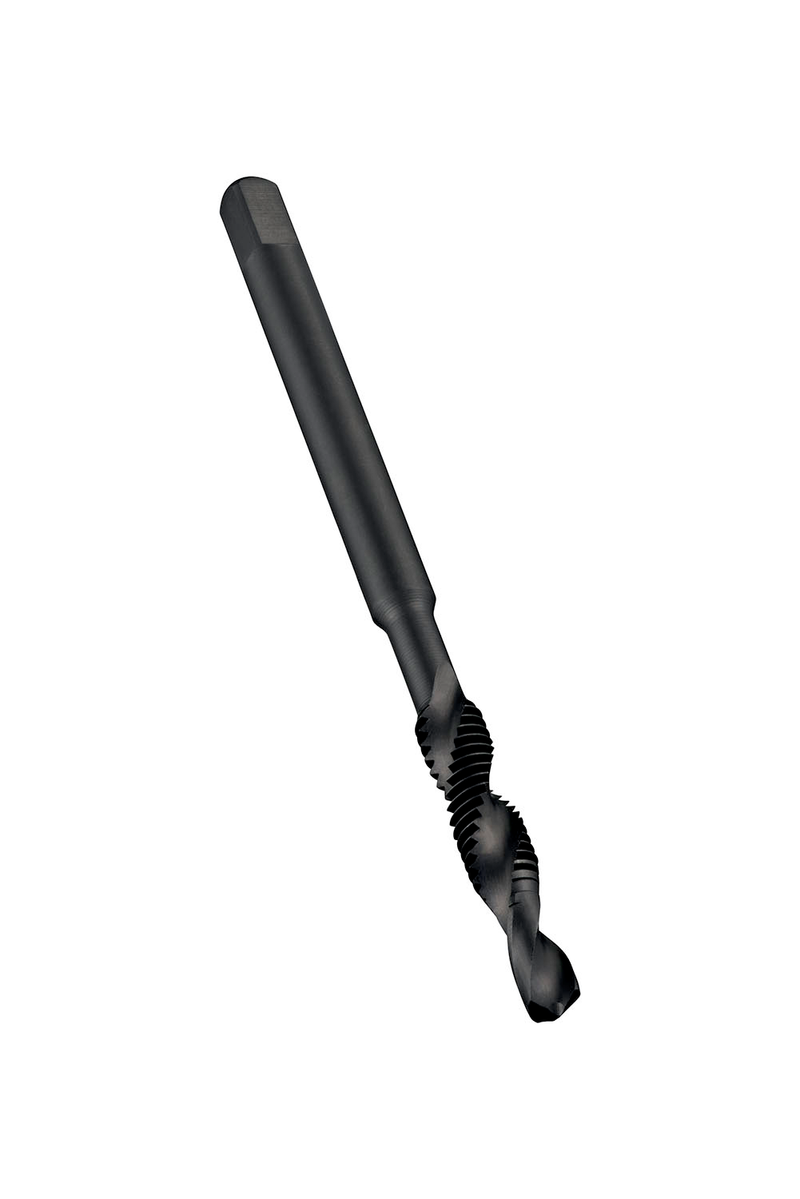

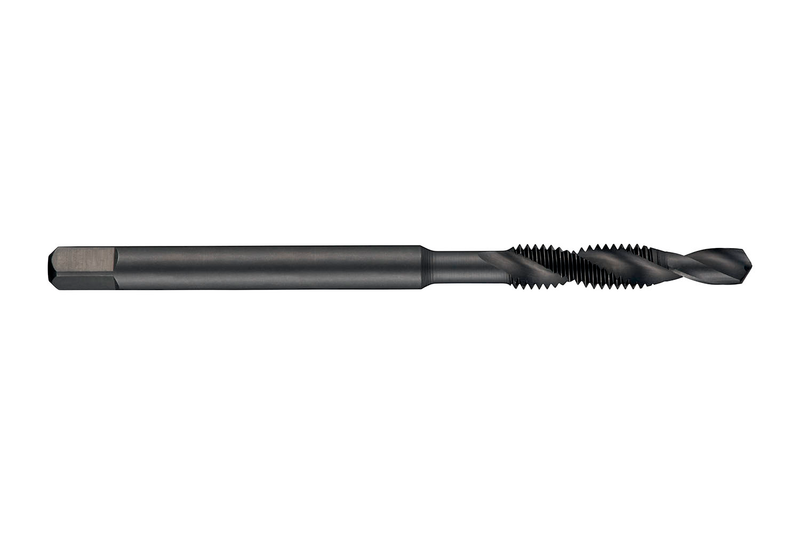

Foret-taraud combiné à hélice spirale de 30°, pour filetage ISO-métrique M5 avec pas de 0,80 mm et classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, HSS avec finition de surface revenu vapeur et angle d'hélice de 30° pour le filetage de trous débouchants de 1,5xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E650M5
GradeTrempé à la vapeur
Product Number5978339
Product FamilyE650

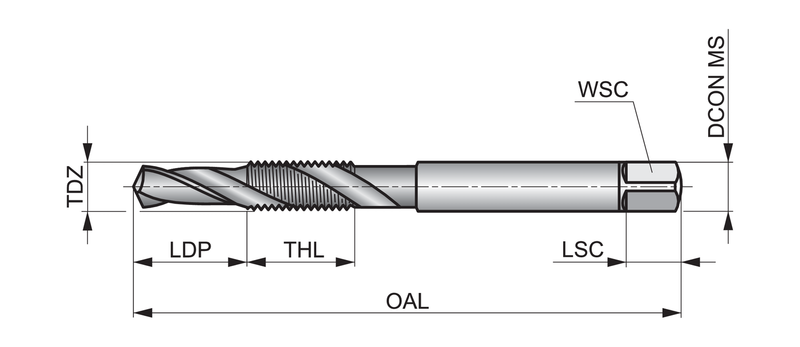

Dimensions
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)5
Thread Diameter — in (TD)0.1654"
Thread Diameter — mm (TD)4.2 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127568
EAN7320760127568
File Type Download
E650M5 — Line Drawing PDF Download
