E650M6
E650M6
E650M6

E650M6

UGC DOR5978342
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.09 CAD - $35.09 CAD
$35.09 CAD
$35.09 CAD - $35.09 CAD
$35.09 CAD

Vendu en lots de : 1

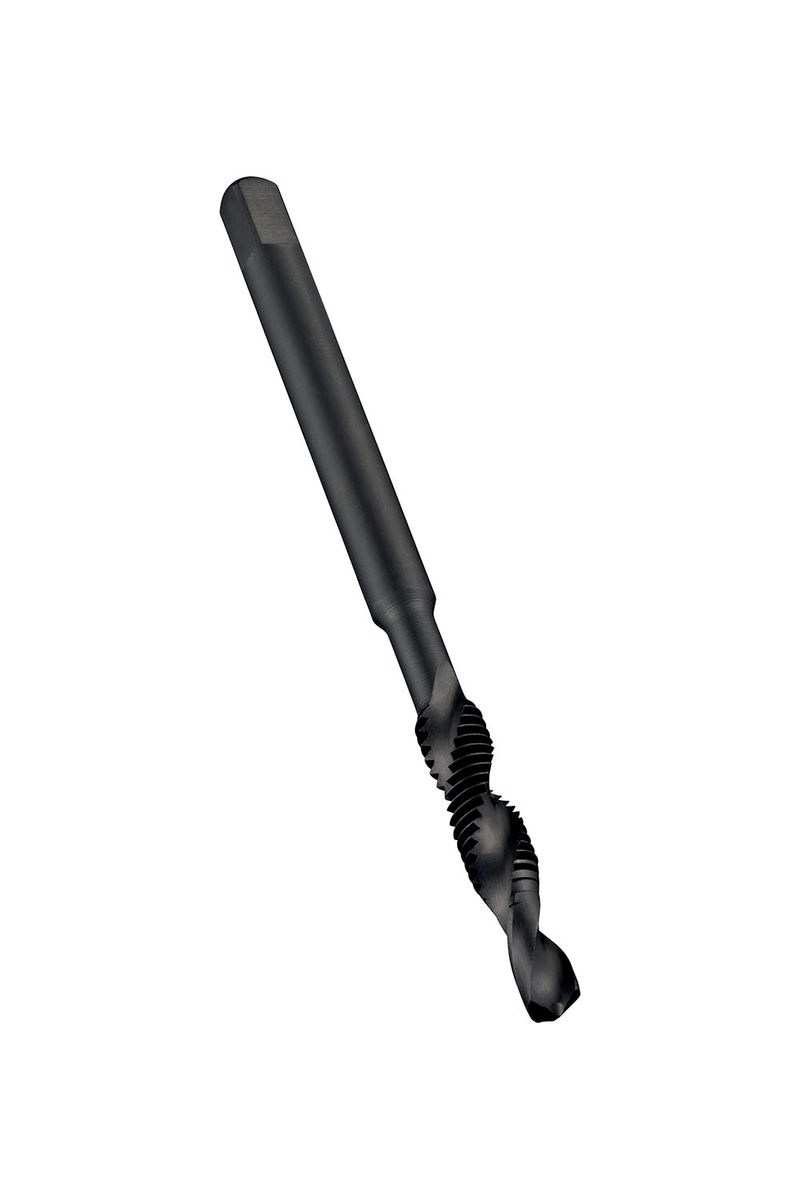

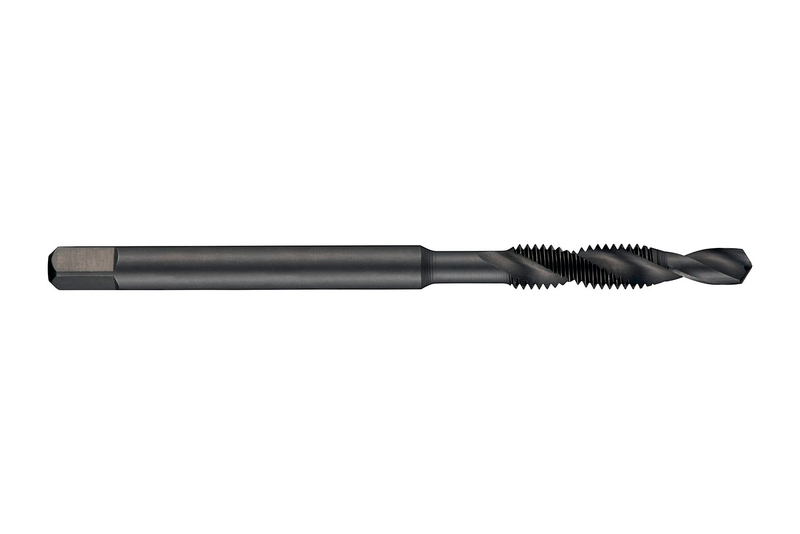

Foret-taraud combiné à hélice à 30°, pour filetage métrique ISO M6 au pas de 1,00 mm et classe de tolérance 6H, dimensions conformes à la norme DORMER-ISO avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants de 1,5xD dans les aciers à usinage facile

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E650M6
GradeTrempé à la vapeur
Product Number5978342
Product FamilyE650

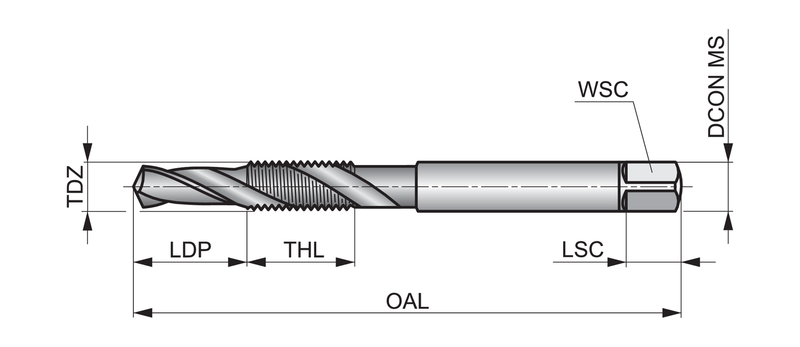

Dimensions
Overall Length — in (OAL)3.3071"
Overall Length — mm (OAL)84.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)6
Thread Diameter — in (TD)0.1969"
Thread Diameter — mm (TD)5.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number127575
EAN7320760127575
File Type Download
E650M6 — Line Drawing PDF Download
