E6511/2
E6511/2
E6511/2

E6511/2

UGC DOR5978350
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.64 CAD - $88.64 CAD
$88.64 CAD
$88.64 CAD - $88.64 CAD
$88.64 CAD

Vendu en lots de : 1

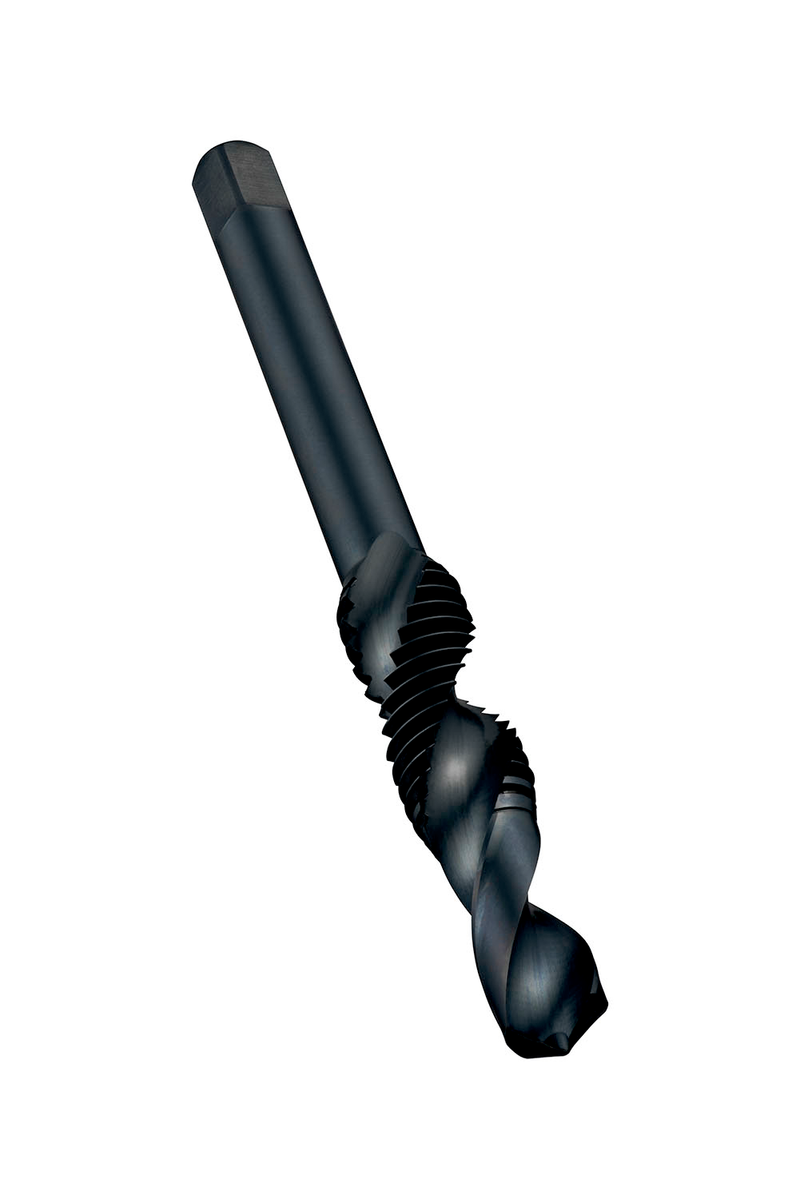

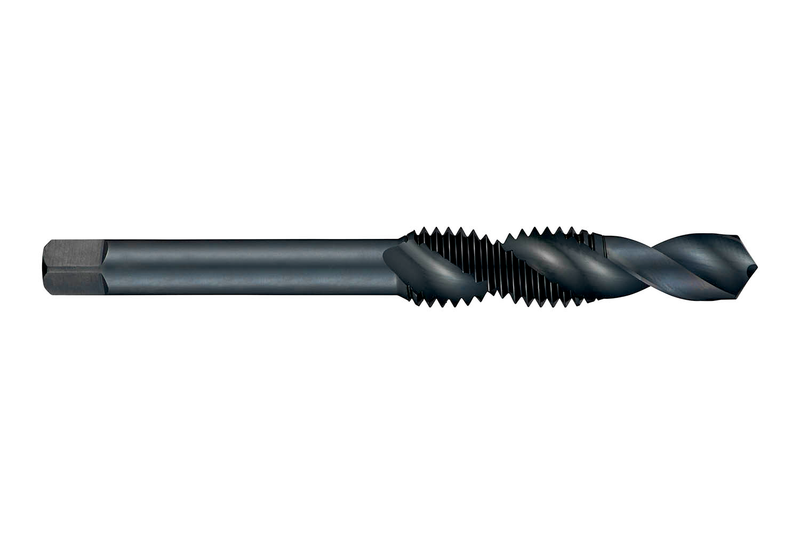

Forets-tarauds combinés à hélice à 30°, pour filetage Unified National Coarse UNC 1/2" avec 13 filets par pouce et classe de tolérance 2B, dimensions selon la norme DORMER-DIN avec queue de 9,0 mm et carré d'entraînement de 7,1 mm, HSS avec finition de surface revenu vapeur et angle d'hélice de 30° pour le taraudage de trous traversants de 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6511/2
GradeTrempé à la vapeur
Product Number5978350
Product FamilyE651
Dimensions
Overall Length — in (OAL)4.4882"
Overall Length — mm (OAL)114.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.4252"
Thread Diameter — mm (TD)10.8 mm
Thread Form (THFT)UCM - Unification Coarse-Mailles
Threads per Inch (TPI)13.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number273203
EAN7320760273203
File Type Download

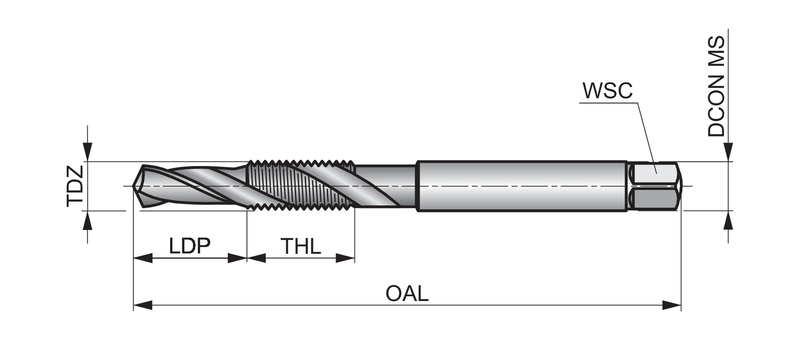

E6511/2 — Line Drawing PDF Download
