UGC DOR5978365
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.04 CAD - $41.04 CAD
$41.04 CAD
$41.04 CAD - $41.04 CAD
$41.04 CAD

Vendu en lots de : 1

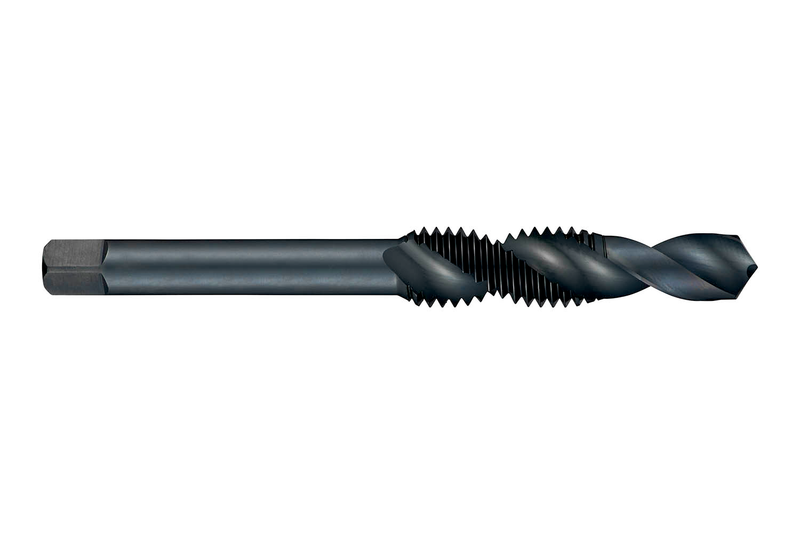

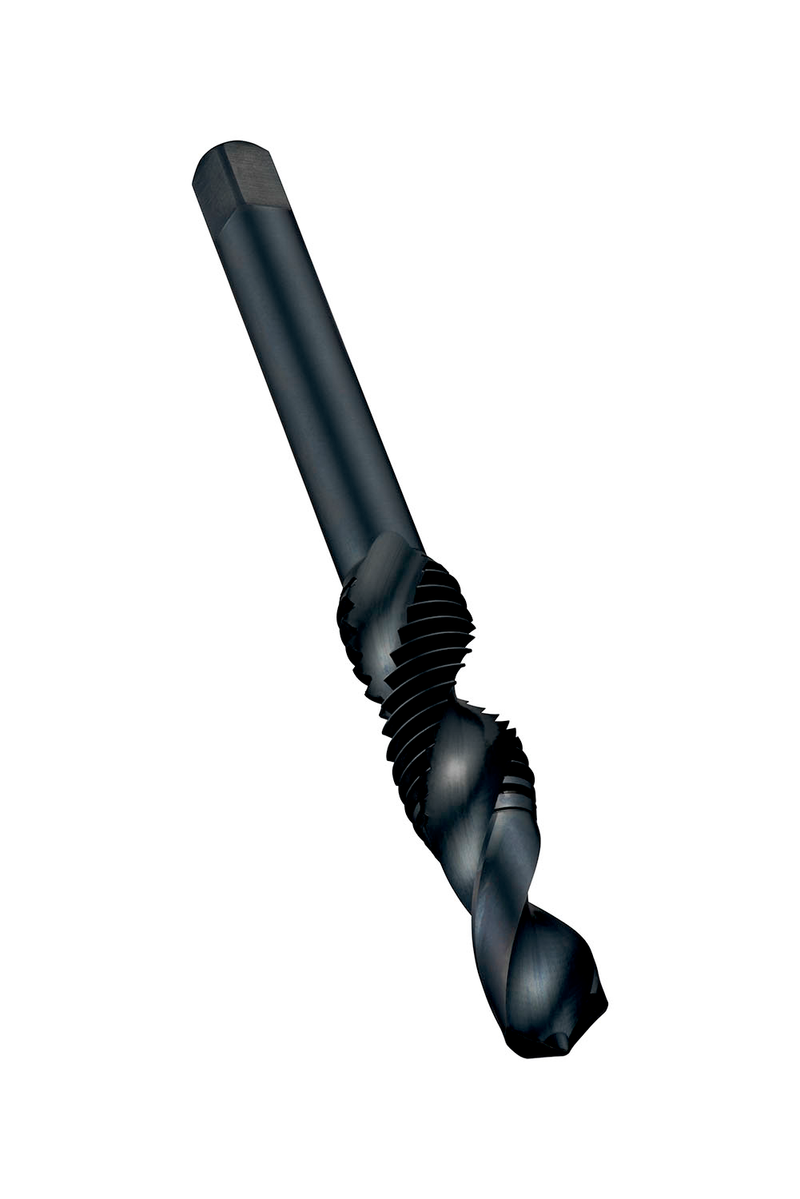

Foret-taraud combiné à hélice à 30°, pour filetage UNC (Unified National Coarse) 5/16" à 18 filets au pouce et classe de tolérance 2B, dimensions conformes à la norme DORMER-DIN, avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, en HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants de 1,5xD dans l'acier à usinabilité améliorée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6515/16
GradeTrempé vapeur
Product Number5978365
Product FamilyE651

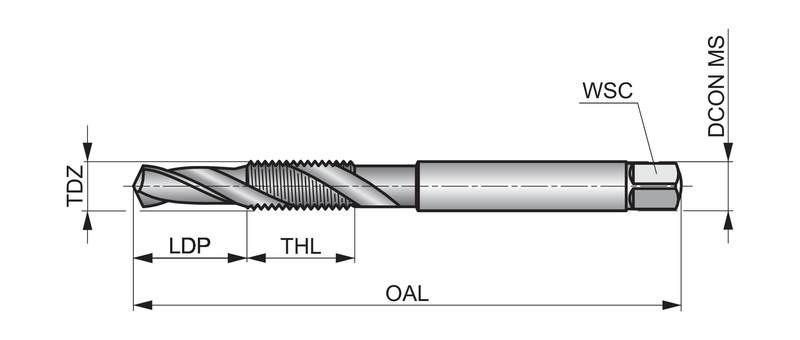

Dimensions
Overall Length — in (OAL)3.7008"
Overall Length — mm (OAL)94.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.2598"
Thread Diameter — mm (TD)6.6 mm
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number273241
EAN7320760273241
File Type Download
E6515/16 — Line Drawing PDF Download
