E6516-32
E6516-32
E6516-32

E6516-32

UGC DOR5978374
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.94 CAD - $27.94 CAD
$27.94 CAD
$27.94 CAD - $27.94 CAD
$27.94 CAD

Vendu en lots de : 1

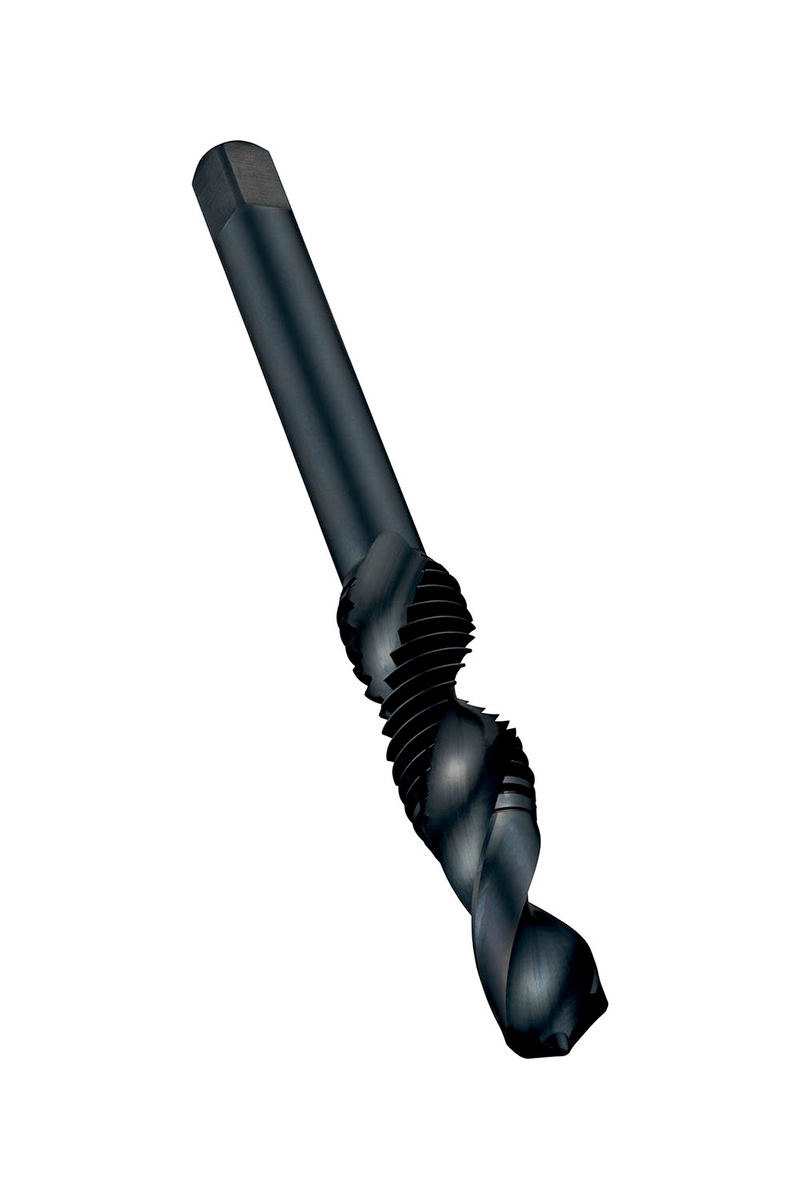

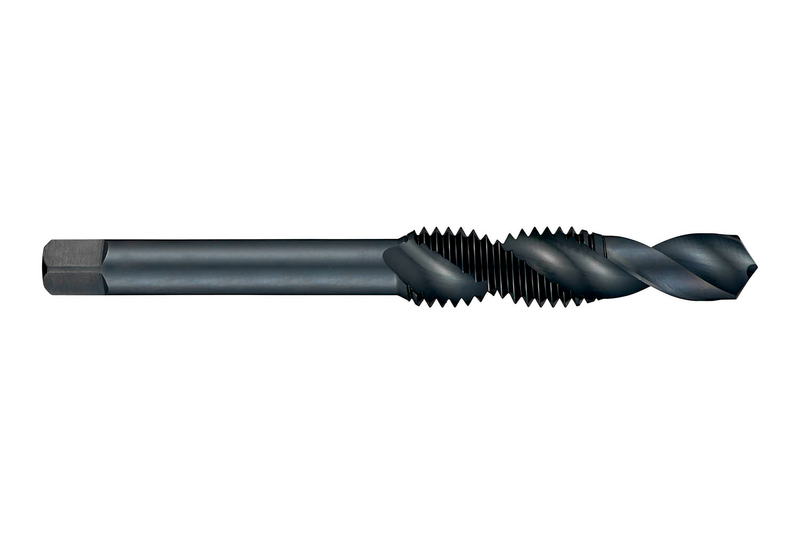

Taraud-foret combiné avec goujure hélicoïdale de 30°, pour filetage Unified National Coarse UNC 6 avec 32 filets par pouce et classe de tolérance 2B, dimensions selon norme DORMER-DIN avec queue de 3,5 mm et carré d'entraînement de 2,9 mm, HSS avec finition de surface revenu vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants de 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6516-32
GradeTrempé à la vapeur
Product Number5978374
Product FamilyE651

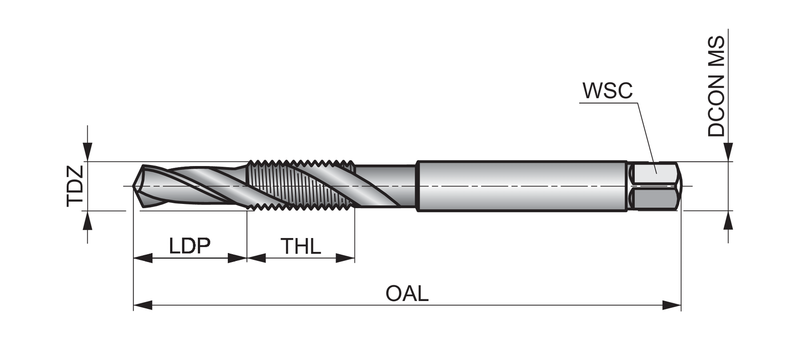

Dimensions
Overall Length — in (OAL)2.2402"
Overall Length — mm (OAL)56.9 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)6
Thread Diameter — in (TD)0.1122"
Thread Diameter — mm (TD)2.85 mm
Thread Form (THFT)UNC - Gros unifié
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number388907
EAN7320760388907
File Type Download
E6516-32 — Line Drawing PDF Download
