E6517/16
E6517/16
E6517/16

E6517/16

UGC DOR5978377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.13 CAD - $76.13 CAD
$76.13 CAD
$76.13 CAD - $76.13 CAD
$76.13 CAD

Vendu en lots de : 1

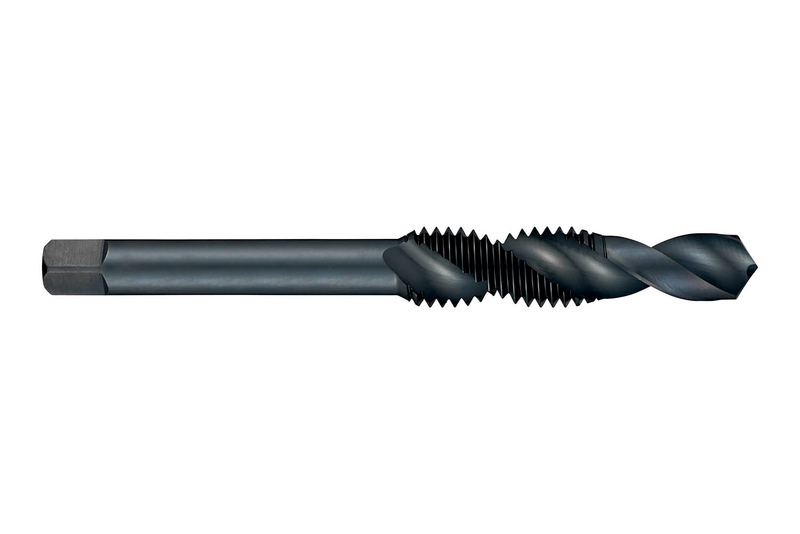

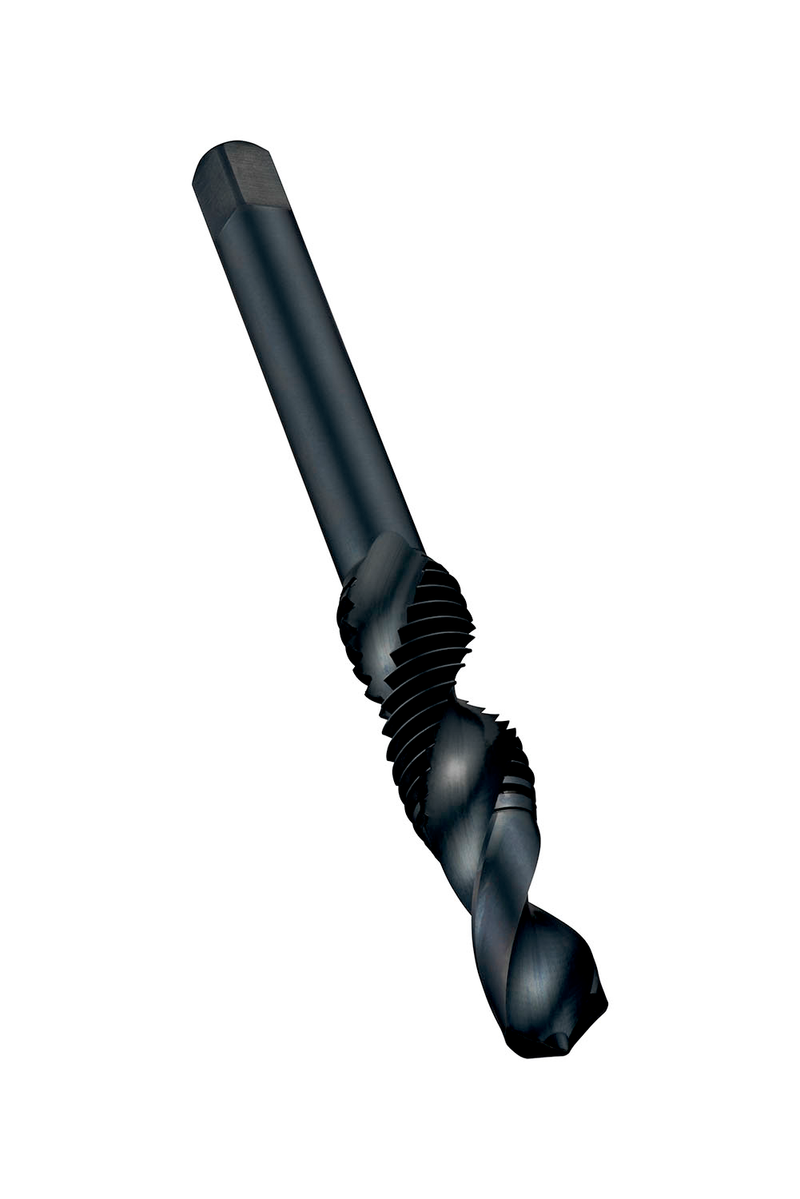

Taraud-foret combiné à goujures hélicoïdales à 30°, pour filetage UNC (Unified National Coarse) 7/16" avec 14 TPI et classe de tolérance 2B, dimensions selon la norme DORMER-DIN avec queue de 8,0 mm et carré d'entraînement de 6,3 mm, en HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous traversants de 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6517/16
GradeTrempé à la vapeur
Product Number5978377
Product FamilyE651

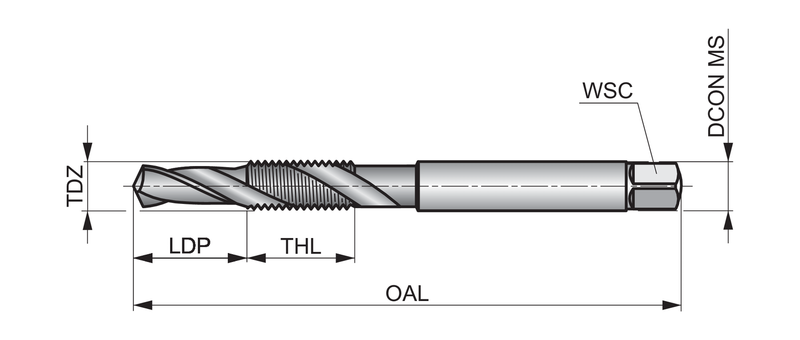

Dimensions
Overall Length — in (OAL)4.2126"
Overall Length — mm (OAL)107.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)16/7
Thread Diameter — in (TD)0.3701"
Thread Diameter — mm (TD)9.4 mm
Thread Form (THFT)UGC - Unifié Grossier
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number273265
EAN7320760273265
File Type Download
E6517/16 — Line Drawing PDF Download
