E6518-32
E6518-32
E6518-32

E6518-32

UGC DOR5978380
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.73 CAD - $28.73 CAD
$28.73 CAD
$28.73 CAD - $28.73 CAD
$28.73 CAD

Vendu en lots de : 1

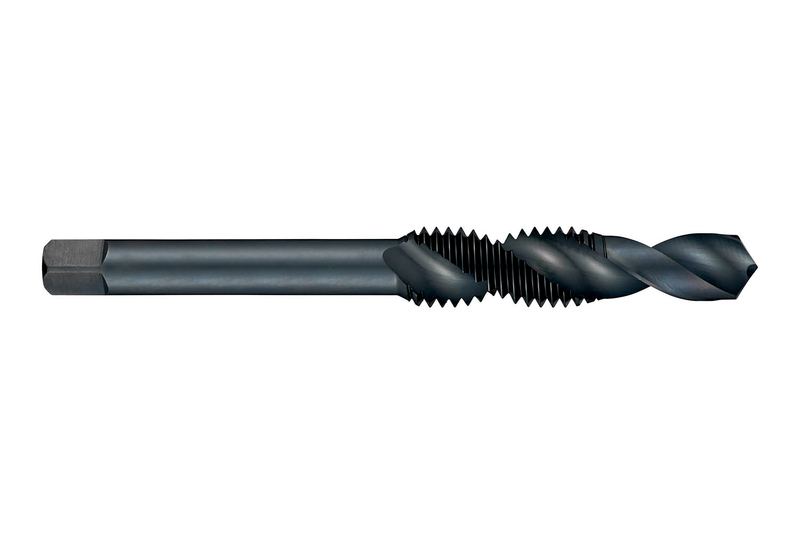

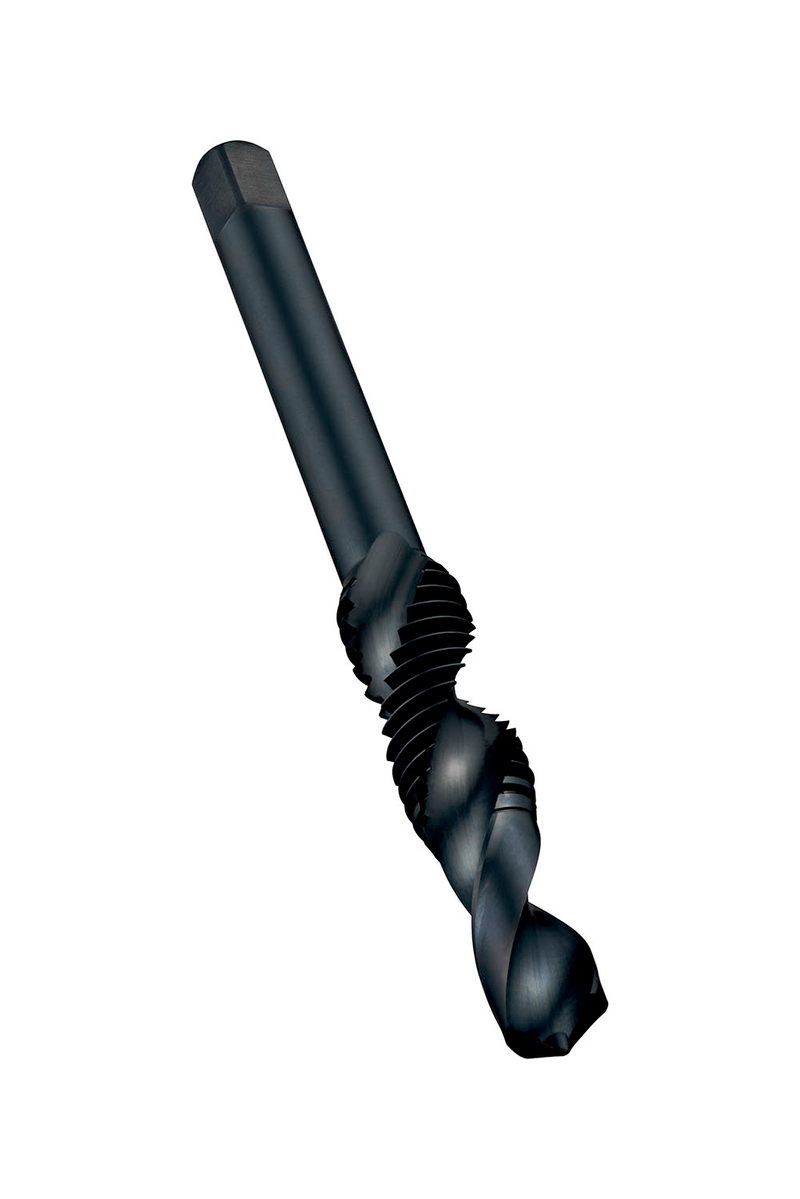

Foret-taraud combiné à hélice à 30°, pour filetage UNC 8 de 32 filets par pouce et classe de tolérance 2B, dimensions selon norme DORMER-DIN avec queue de 4,5mm et carré d'entraînement de 3,55mm, en HSS avec finition de surface revenu vapeur et un angle d'hélice de 30° pour le taraudage de trous traversants jusqu'à 1.5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6518-32
GradeTrempé vapeur
Product Number5978380
Product FamilyE651

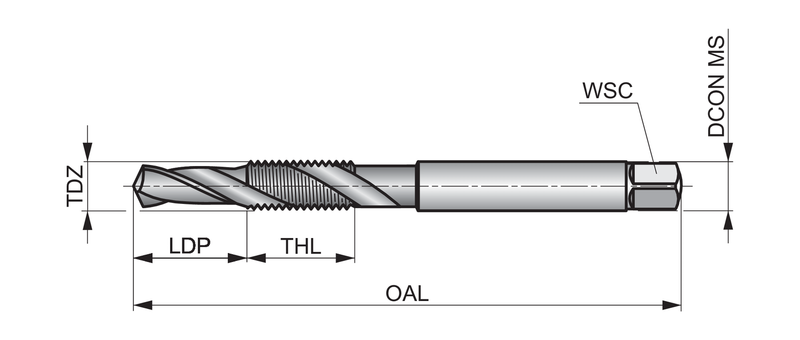

Dimensions
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — in (TD)0.1378"
Thread Diameter — mm (TD)3.5 mm
Thread Form (THFT)CUG - Calibrage Unifié Grossier
Threads per Inch (TPI)32.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number273272
EAN7320760273272
File Type Download
E6518-32 — Line Drawing PDF Download
