E6531/2
E6531/2
E6531/2

E6531/2

UGC DOR5978392
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$241.43 CAD - $241.43 CAD
$241.43 CAD
$241.43 CAD - $241.43 CAD
$241.43 CAD

Vendu en lots de : 1

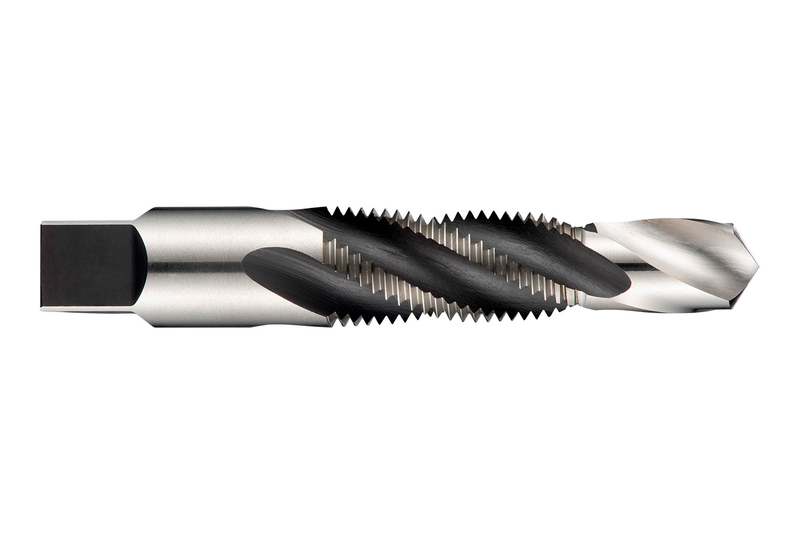

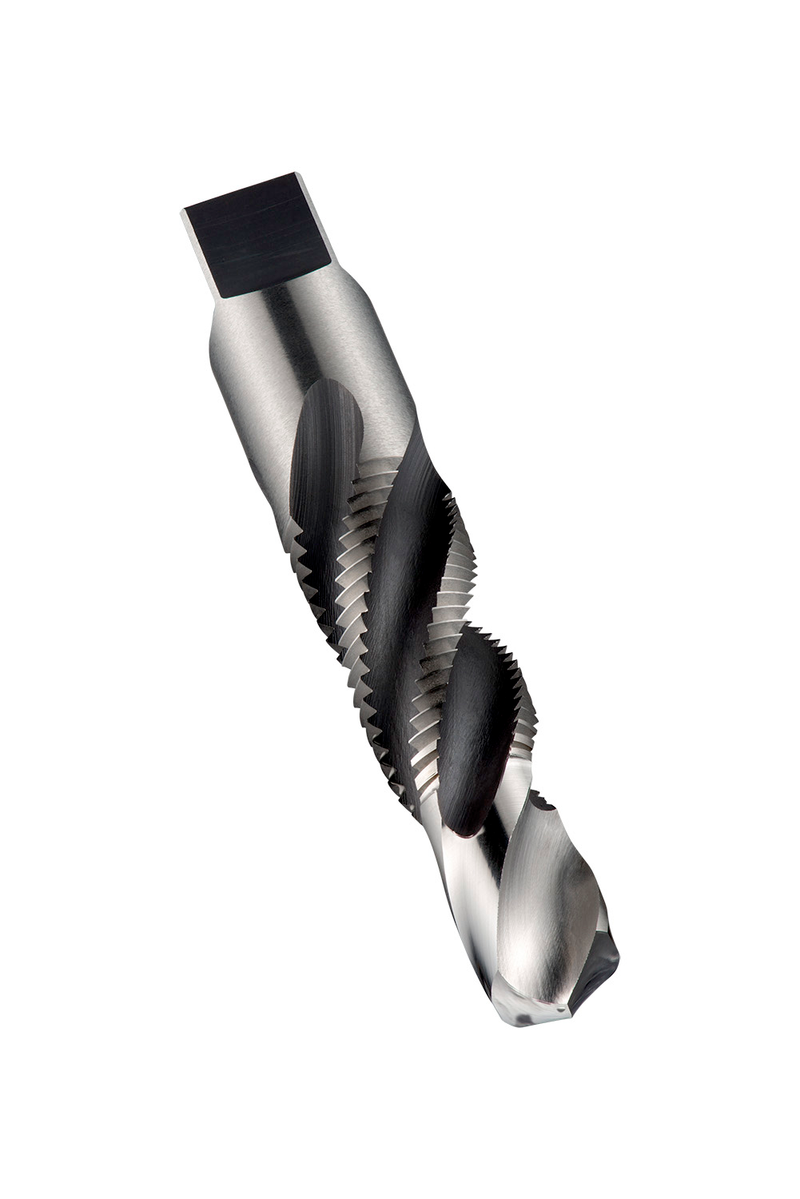

Foret-taraud combiné à hélice de 27°, pour filetage conique National Pipe Taper NPT 1/2" avec 14 filets par pouce et classe de tolérance normale, dimensions conformes à la norme ANSI avec queue de 17,45 mm et carré d'entraînement de 17,45 mm, en HSS avec finition brillante et angle d'hélice de 27° pour le taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6531/2
GradeLumineux
Product Number5978392
Product FamilyE653
Dimensions
Overall Length — in (OAL)4.375"
Overall Length — mm (OAL)111.13 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)34.93 mm
Connection Dia. — in (DCON)0.687"
Connection Dia. — mm (DCON)17.45 mm
Number of Flutes (NOF)4
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.7087"
Thread Form (THFT)NPT - Filetage conique national
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number297261
EAN7320760297261
File Type Download

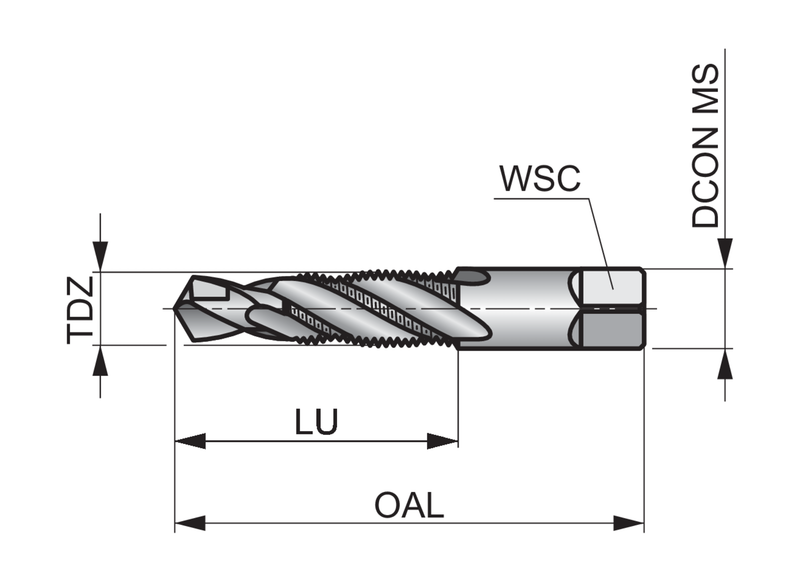

E6531/2 — Line Drawing PDF Download
