E6531/8
E6531/8
E6531/8

E6531/8

UGC DOR5978397
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$120.97 CAD - $120.97 CAD
$120.97 CAD
$120.97 CAD - $120.97 CAD
$120.97 CAD

Vendu en lots de : 1

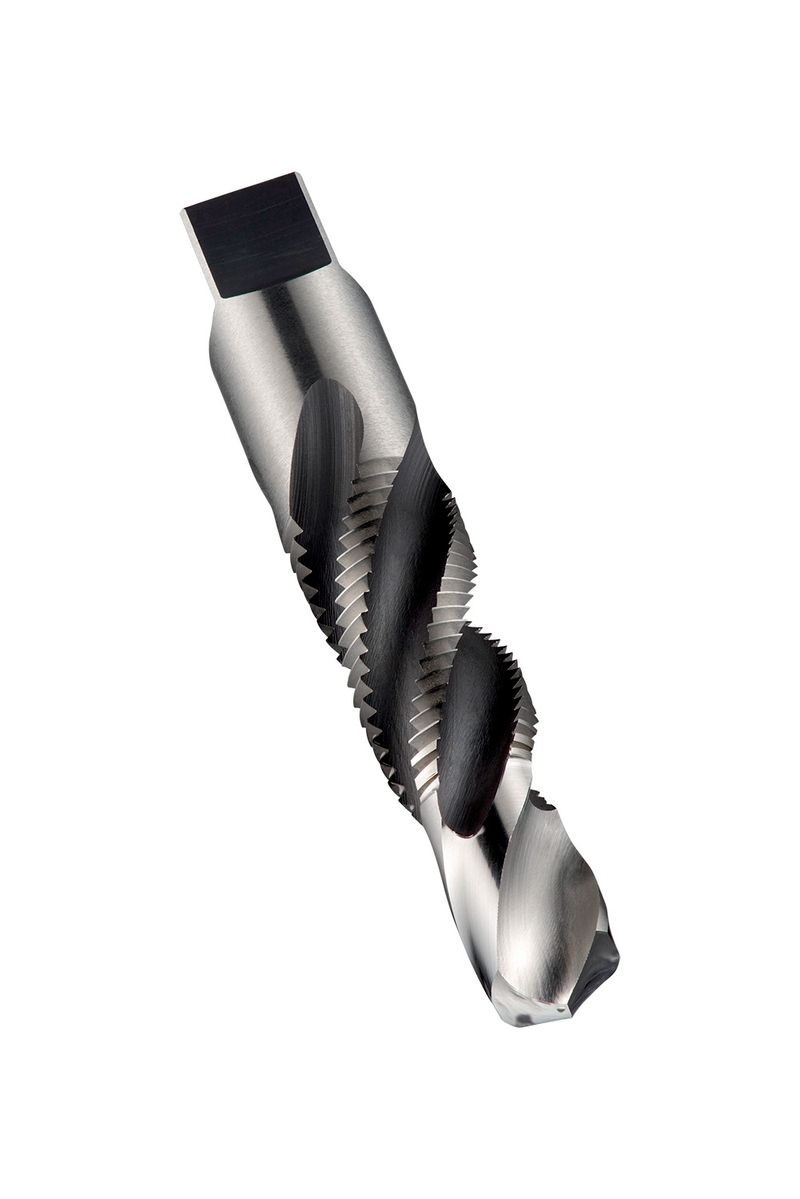

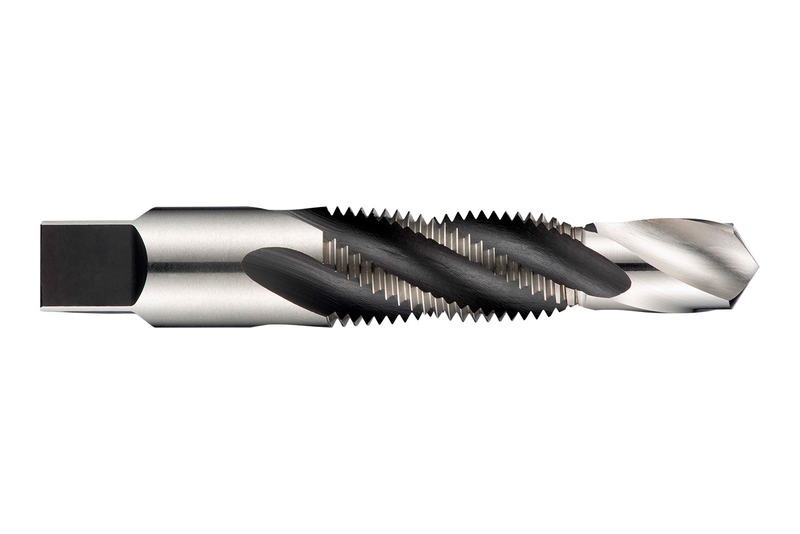

Foret-taraud combiné à hélice à 27°, pour filetages National Pipe Taper NPT 1/8" avec 27 filets par pouce et classe de tolérance Normale, dimensions selon la norme ANSI, avec queue de 0,4370" et carré d'entraînement de 0,4370", en HSS avec finition brillante et angle d'hélice de 27° pour le taraudage de trous traversants ou borgnes jusqu'à 1.5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6531/8
GradeLumineux
Product Number5978397
Product FamilyE653
Dimensions
Overall Length — in (OAL)2.875"
Overall Length — mm (OAL)73.03 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.437"
Connection Dia. — mm (DCON)11.1 mm
Number of Flutes (NOF)4
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.3346"
Thread Form (THFT)NPT - filetage conique national
Threads per Inch (TPI)27.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number297285
EAN7320760297285
File Type Download

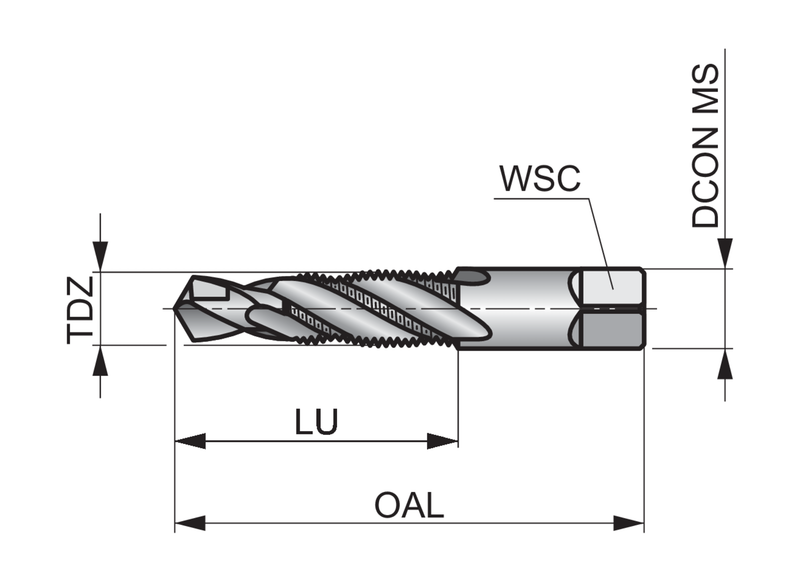

E6531/8 — Line Drawing PDF Download
