E6533/4
E6533/4
E6533/4

E6533/4

UGC DOR5978399
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$337.89 CAD - $337.89 CAD
$337.89 CAD
$337.89 CAD - $337.89 CAD
$337.89 CAD

Vendu en lots de : 1

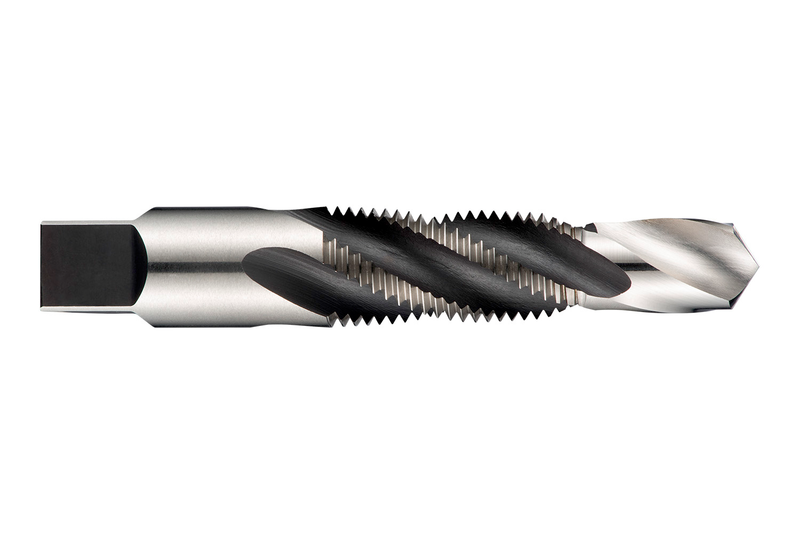

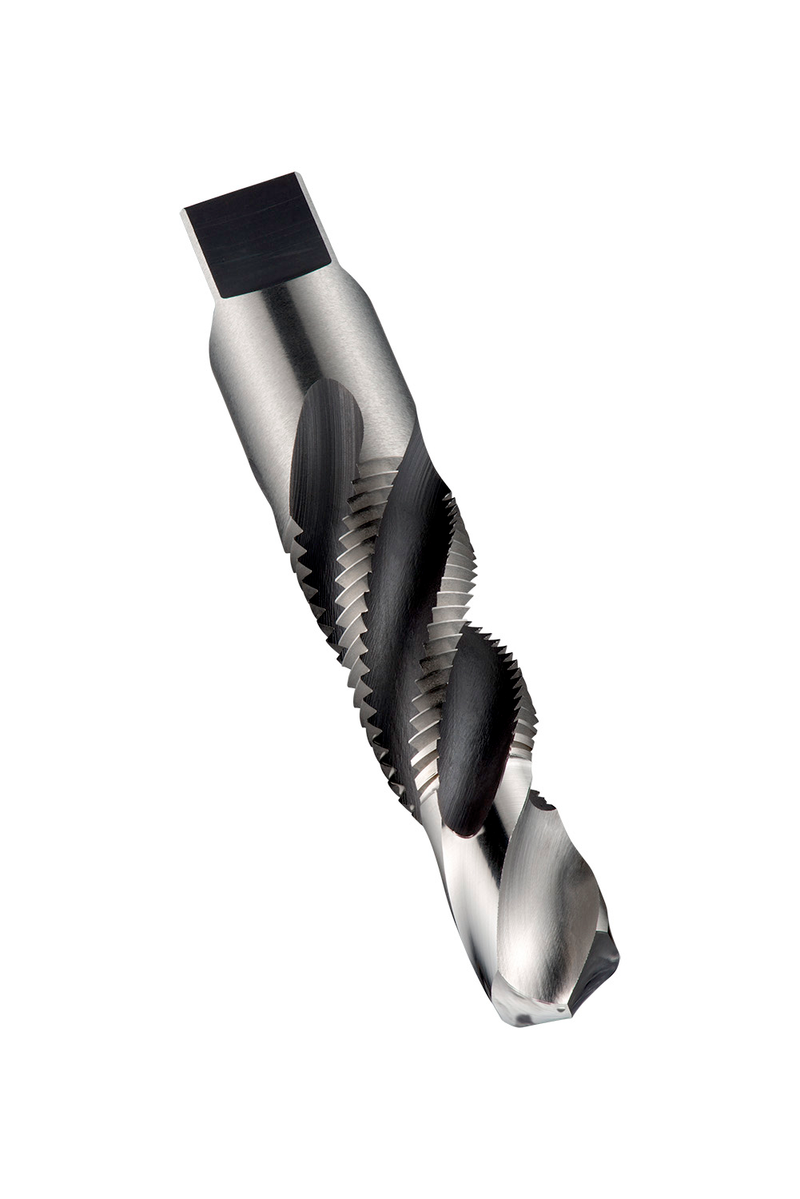

Forets taraudeurs combinés à goujure hélicoïdale à 27°, pour filetages coniques National Pipe Taper NPT 3/4" avec 14 filets par pouce et classe de tolérance normale, dimensions selon la norme ANSI avec queue de 0,9060" et carré d'entraînement de 0,9060", en HSS avec finition brillante et angle d'hélice de 27° pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6533/4
GradeLumineux
Product Number5978399
Product FamilyE653

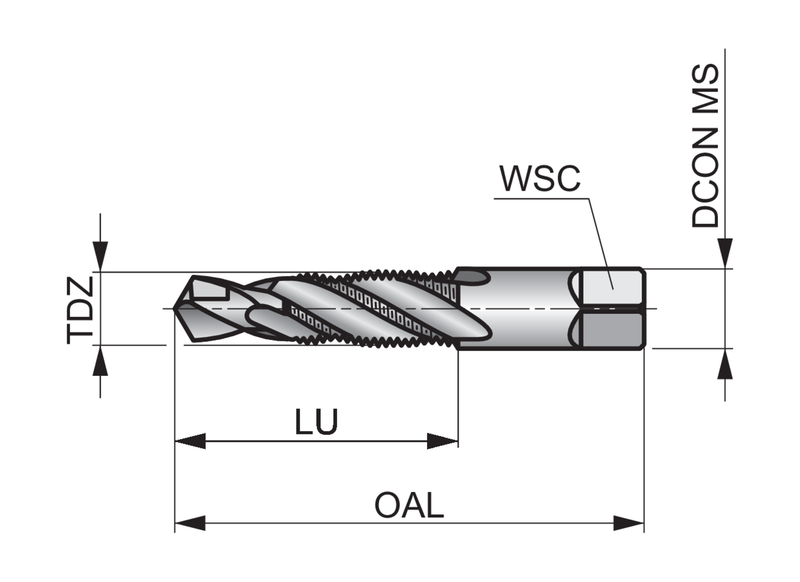

Dimensions
Overall Length — in (OAL)4.5625"
Overall Length — mm (OAL)115.89 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)34.93 mm
Connection Dia. — in (DCON)0.906"
Connection Dia. — mm (DCON)23.01 mm
Number of Flutes (NOF)6
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.9055"
Thread Form (THFT)NPT - Filetage national conique
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number297292
EAN7320760297292
File Type Download
E6533/4 — Line Drawing PDF Download
