E6541/4
E6541/4
E6541/4

E6541/4

UGC DOR5978407
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.57 CAD - $34.57 CAD
$34.57 CAD
$34.57 CAD - $34.57 CAD
$34.57 CAD

Vendu en lots de : 1

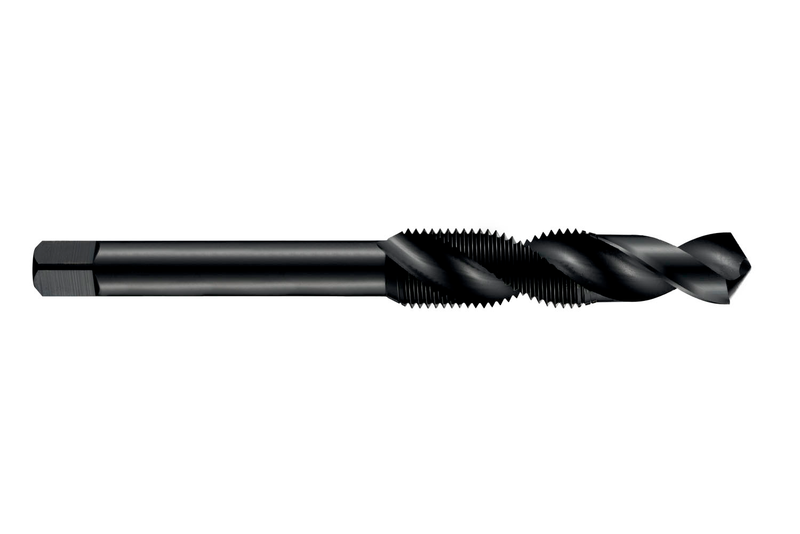

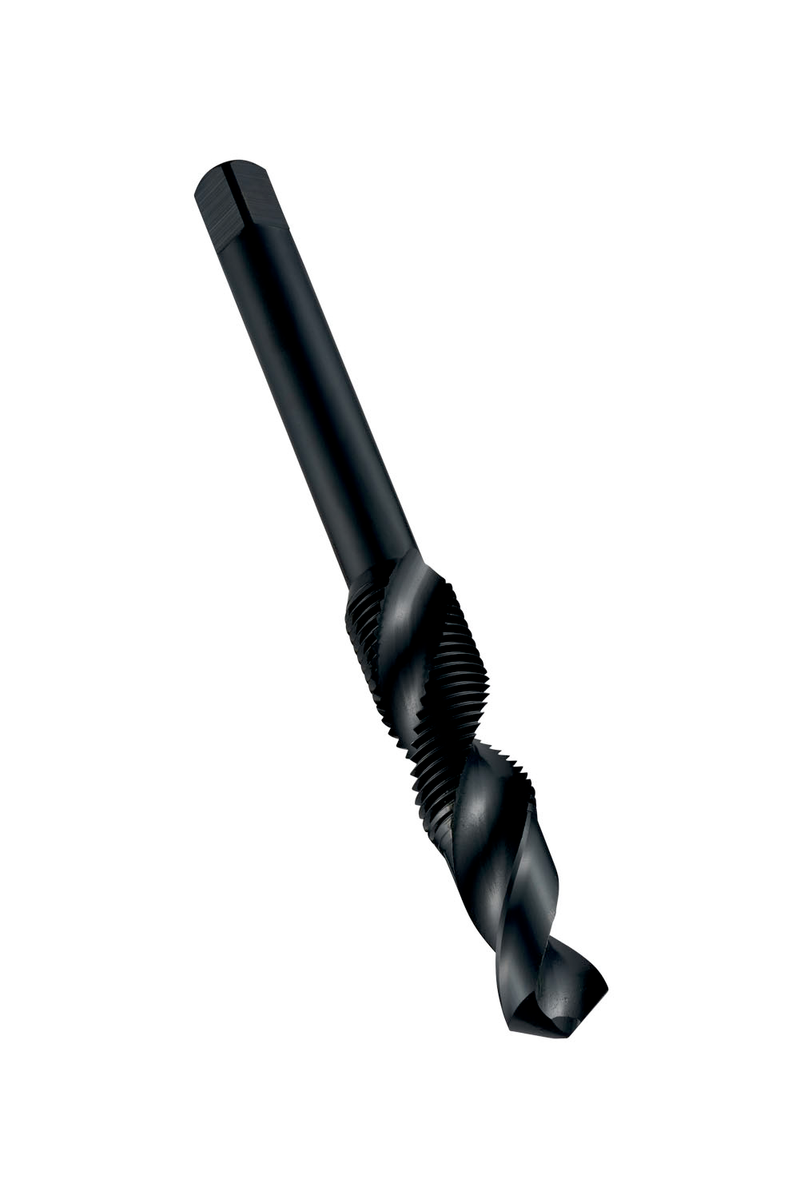

Tarauds-forets combinés à hélice spirale de 30°, pour filetages UNF (Unified National Fine) 1/4" à 28 filets par pouce et classe de tolérance moyenne, dimensions selon la norme DORMER-DIN avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, HSS avec finition de surface revenu vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants de 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6541/4
GradeTrempé à la vapeur
Product Number5978407
Product FamilyE654
Dimensions
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.2165"
Thread Diameter — mm (TD)5.5 mm
Thread Form (THFT)UNF - Pas fin uniforme
Threads per Inch (TPI)28.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number339008
EAN7320760339008
File Type Download

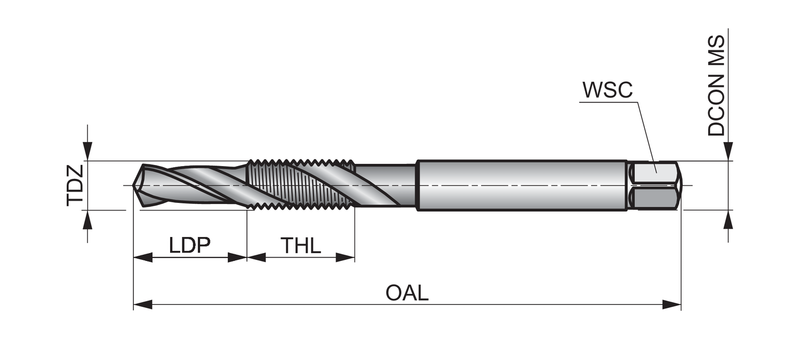

E6541/4 — Line Drawing PDF Download
