E6543/8
E6543/8
E6543/8

E6543/8

UGC DOR5978414
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.19 CAD - $53.19 CAD
$53.19 CAD
$53.19 CAD - $53.19 CAD
$53.19 CAD

Vendu en lots de : 1

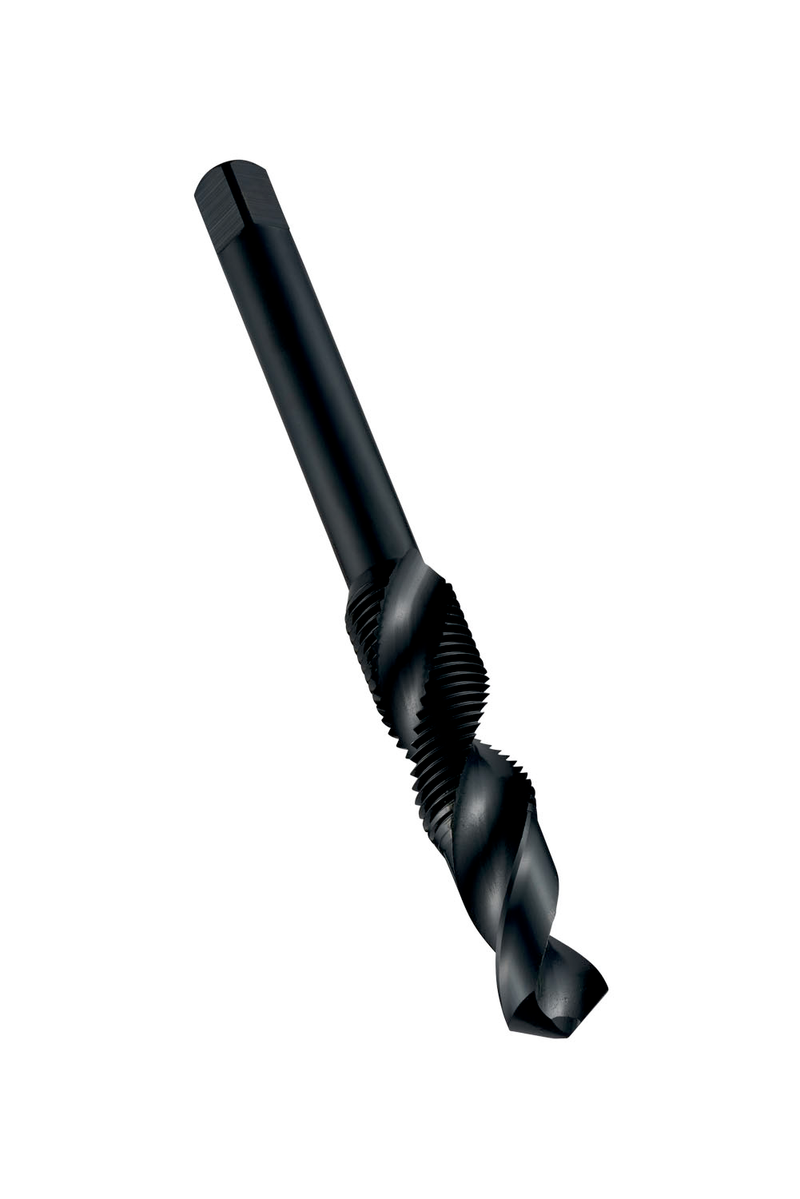

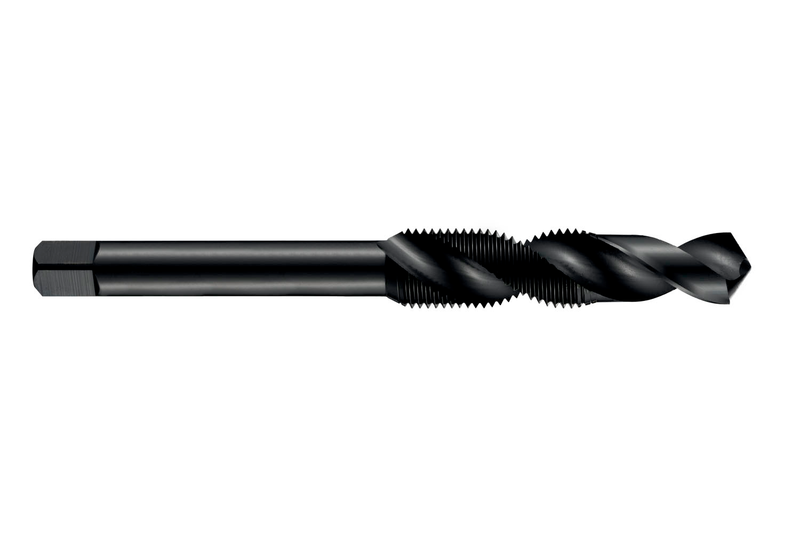

Combiné foret-taraud avec goujure hélicoïdale de 30°, pour filetage Unified National Fine UNF 3/8" avec 24 filets par pouce et classe de tolérance Moyenne, dimensions selon la norme DORMER-DIN avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, HSS avec finition de surface trempée à la vapeur et angle d'hélice de 30° pour le taraudage de trous débouchants 1,5xD dans l'acier de décolletage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E6543/8
GradeTrempé à la vapeur
Product Number5978414
Product FamilyE654

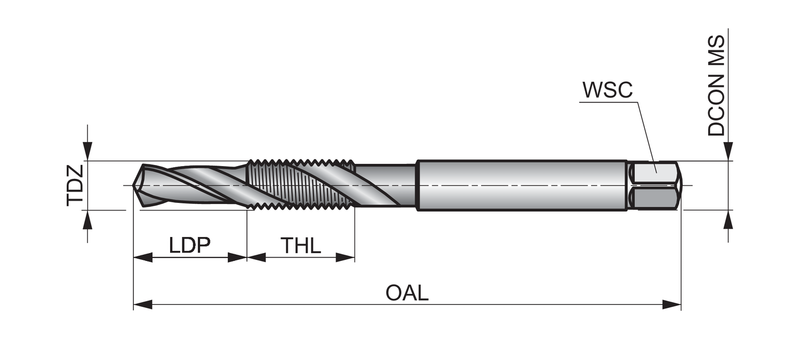

Dimensions
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.3346"
Thread Diameter — mm (TD)8.5 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number339015
EAN7320760339015
File Type Download
E6543/8 — Line Drawing PDF Download
