UGC DOR5978428
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.87 CAD - $102.87 CAD
$102.87 CAD
$102.87 CAD - $102.87 CAD
$102.87 CAD

Vendu en lots de : 1

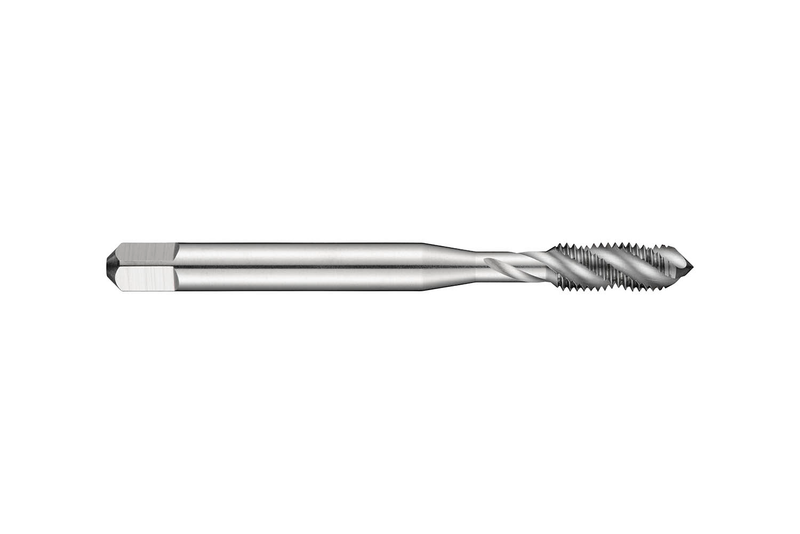

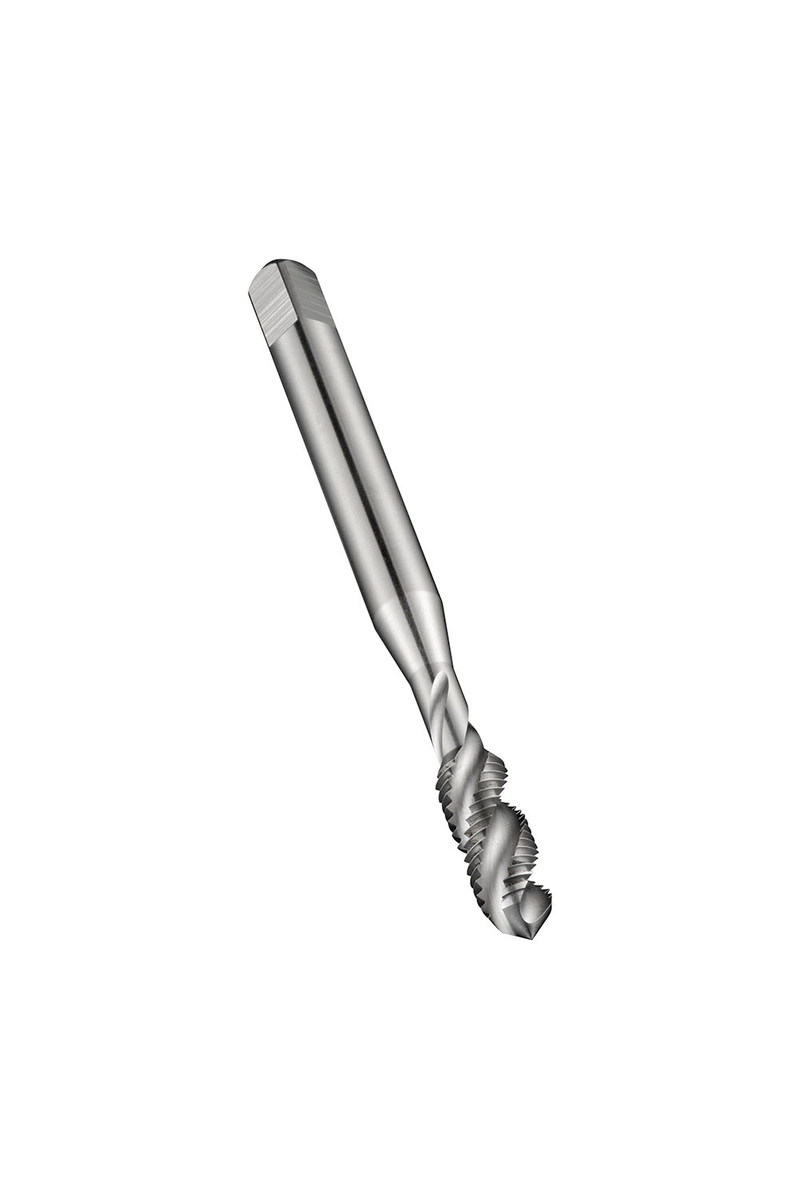

Taraud à gorge spirale, forme C, entrée 2-3 filets, pour filet rapporté métrique (Einsatzgewinde Metrisch) EGM12, pas de 1,75 mm et classe de tolérance 6H, dimensions selon la norme DORMER-ISO avec queue de 11,2 mm et carré d'entraînement de 9,0 mm, en HSS, finition brillante et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E621M12
GradeLumineux
Product Number5978428
Product FamilyE621
Dimensions
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4409"
Connection Dia. — mm (DCON)11.2 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — in (TD)0.5618"
Thread Diameter — mm (TD)14.27 mm
Thread Form (THFT)EGM - EGM (Insert de Fil)
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number384978
EAN7320760384978
File Type Download

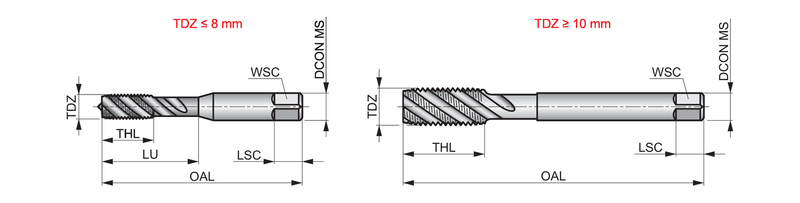

E621M12 — Line Drawing PDF Download
