F302M3
F302M3

F302M3

UGC DOR5978496
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$134.26 CAD - $134.26 CAD
$134.26 CAD
$134.26 CAD - $134.26 CAD
$134.26 CAD

Vendu en lots de : 1

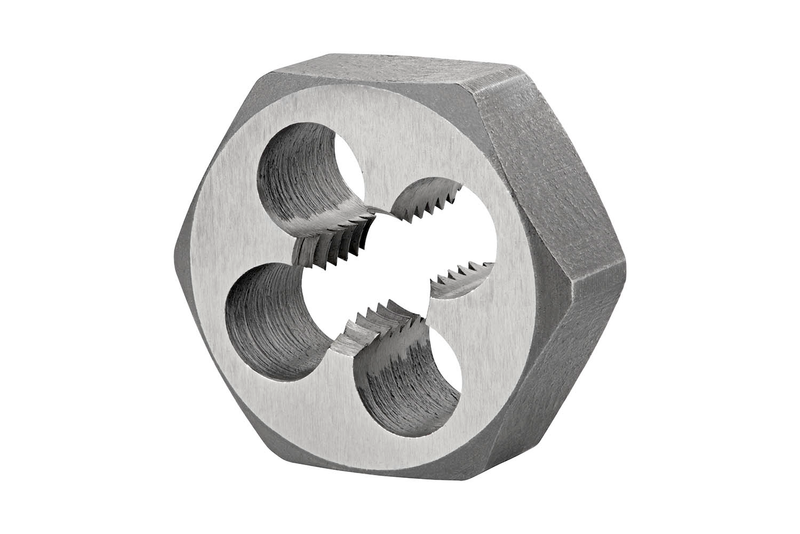

Filière six pans pour filetage métrique ISO M3 au pas de 0,50 mm et classe de tolérance 6g, dimensions conformes à la norme BS 1127:1950 avec une largeur sur plats de 0,7100" et une épaisseur de 1/4", en HSS finition brillante pour la réparation de filetages endommagés dans les aciers de décolletage et au carbone non alliés, les aciers inoxydables ferritiques et les fontes grises, malléables, ductiles et à graphite vermiculaire

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F302M3
GradeLumineux
Product Number5978496
Product FamilyF302

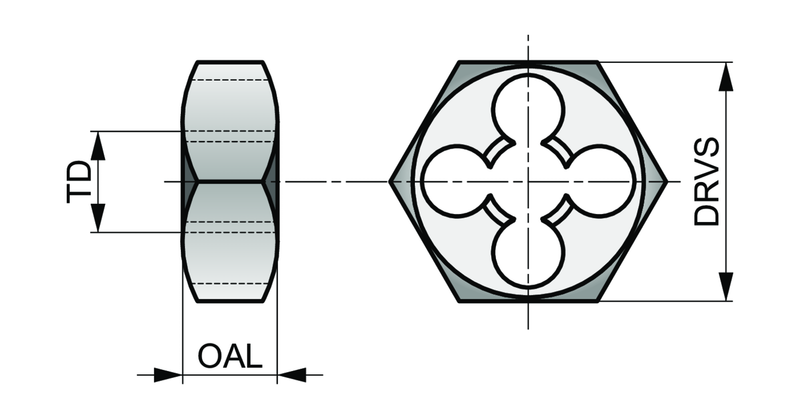

Dimensions
Overall Length — in (OAL)0.25"
Overall Length — mm (OAL)6.35 mm
Threading
Thread Diameter Size (TDZ)3
Thread Diameter — mm (TD)3.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.5 mm
Tool Information
Direction of ToolD'accord
StandardBS 1127:1950
Reference Numbers
EDP Number105627
EAN7320760105627
File Type Download
F302M3 — Line Drawing PDF Download
