F302M7
F302M7

F302M7

UGC DOR5978517
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.34 CAD - $80.34 CAD
$80.34 CAD
$80.34 CAD - $80.34 CAD
$80.34 CAD

Vendu en lots de : 1

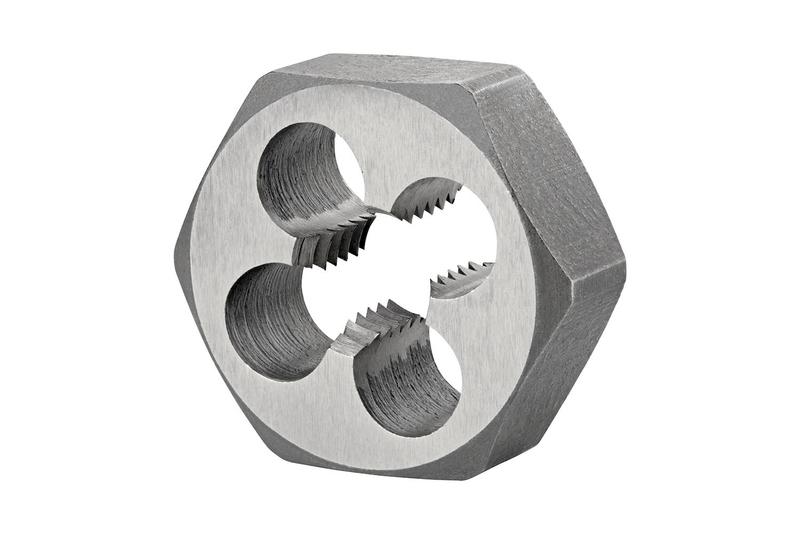

Écrou hexagonal fileté, pour filetage ISO-Métric M7 avec un pas de 1,00 mm et une classe de tolérance 6g, dimensions selon la norme BS 1127:1950 avec 0,8200" de largeur sur plats et 5/16" d'épaisseur, HSS avec finition brillante pour la réparation de filets endommagés dans l'acier d'usinage libre et l'acier au carbone ordinaire, l'acier inoxydable ferritique et la fonte grise, malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F302M7
GradeLumineux
Product Number5978517
Product FamilyF302
Dimensions
Overall Length — in (OAL)0.3125"
Overall Length — mm (OAL)7.94 mm
Threading
Thread Diameter Size (TDZ)7
Thread Diameter — mm (TD)7.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Tool Information
Direction of ToolD'accord
StandardBS 1127:1950
Reference Numbers
EDP Number105740
EAN7320760105740
File Type Download

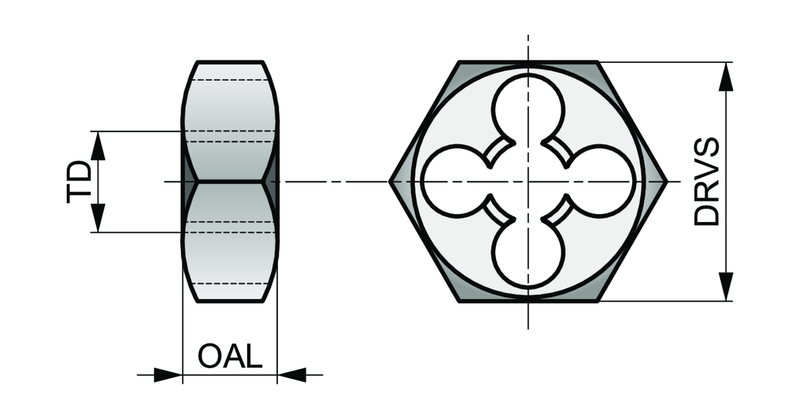

F302M7 — Line Drawing PDF Download
