F108M2
F108M2

F108M2

UGC DOR5978551
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.63 CAD - $85.63 CAD
$85.63 CAD
$85.63 CAD - $85.63 CAD
$85.63 CAD

Vendu en lots de : 1

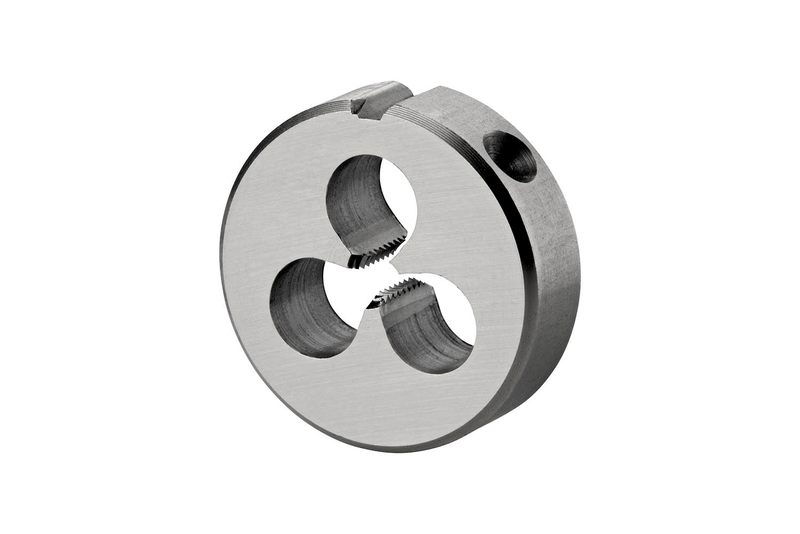

Filière ronde massive à nez de canon, pour filetage ISO-Métric M2 au pas de 0,40 mm et classe de tolérance 6g, dimensions selon la norme ISO 2568 avec diamètre extérieur de 16 mm et épaisseur de 5 mm, en HSS-E au cobalt avec finition de surface rodée pour le filetage dans les aciers alliés et les aciers à outils, les aciers inoxydables martensitiques et austénitiques et la fonte ductile austénitique ou austénitisée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F108M2
GradeLumineux
Product Number5978551
Product FamilyF108
Dimensions
Overall Length — in (OAL)0.1969"
Overall Length — mm (OAL)5.0 mm
Threading
Thread Diameter Size (TDZ)2
Thread Diameter — mm (TD)2.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.4 mm
Tool Information
Direction of ToolD'accord
StandardISO 2568
Reference Numbers
EDP Number381250
EAN7320760381250
File Type Download
F108M2 — Line Drawing PDF Download
