F202M22
F202M22

F202M22

UGC DOR5978694
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$223.59 CAD - $223.59 CAD
$223.59 CAD
$223.59 CAD - $223.59 CAD
$223.59 CAD

Vendu en lots de : 1

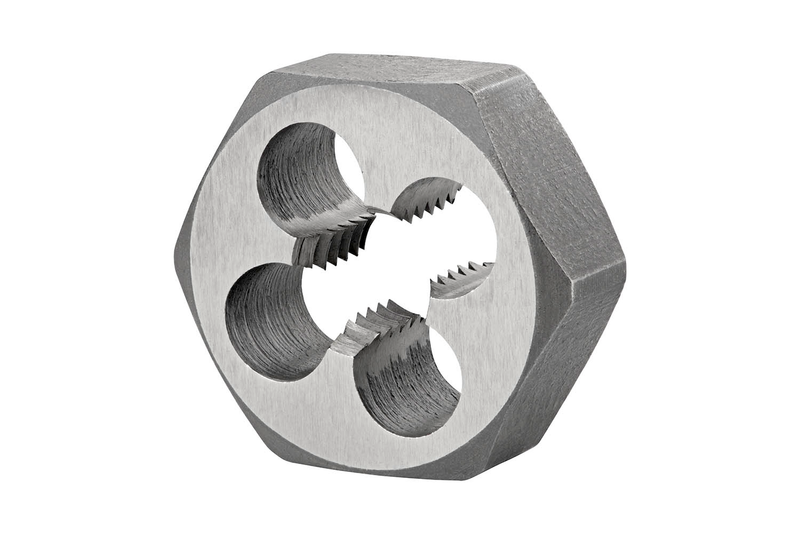

Filière hexagonale, pour filetage métrique ISO M22 avec pas de 2,50 mm et classe de tolérance 6g, dimensions selon la norme DIN 382 avec méplat de 50 mm et épaisseur de 22 mm, en HSS avec finition brillante pour la réparation de filets endommagés dans l'acier de décolletage et l'acier au carbone non allié, l'acier inoxydable ferritique et la fonte grise, malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F202M22
GradeLumineux
Product Number5978694
Product FamilyF202

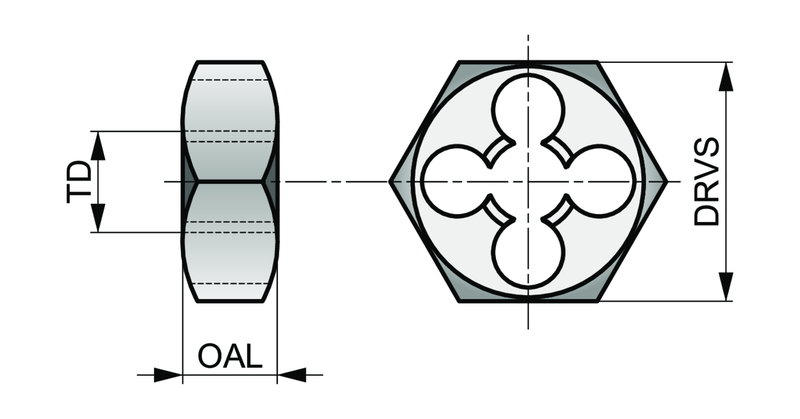

Dimensions
Overall Length — in (OAL)0.8661"
Overall Length — mm (OAL)22.0 mm
Threading
Thread Diameter Size (TDZ)22
Thread Diameter — mm (TD)22.0 mm
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)2.5 mm
Tool Information
Direction of ToolD'accord
StandardDIN 382
Reference Numbers
EDP Number217092
EAN7320760217092
File Type Download
F202M22 — Line Drawing PDF Download
