F2721.1/2
F2721.1/2

F2721.1/2

UGC DOR5978702
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$772.77 CAD - $772.77 CAD
$772.77 CAD
$772.77 CAD - $772.77 CAD
$772.77 CAD

Vendu en lots de : 1

Clé hexagonale, pour filetage de tuyau britannique G 1.1/2" avec 11 filets par pouce et tolérance de classe A, dimensions selon la norme DIN 382 avec 85 mm d'ouverture et 22 mm d'épaisseur, HSS avec finition brillante pour la réparation de filets endommagés dans l'acier à usinage facile et l'acier au carbone ordinaire, l'acier inoxydable ferritique et la fonte grise, malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F2721.1/2
GradeLumineux
Product Number5978702
Product FamilyF272
Dimensions
Overall Length — in (OAL)0.8661"
Overall Length — mm (OAL)22.0 mm
Threading
Thread Diameter Size (TDZ)1.1/2
Thread Diameter — mm (TD)47.8 mm
Thread Form (THFT)G - Raccord de tuyauterie britannique (norme) - Série G
Threads per Inch (TPI)11.0
Tool Information
Direction of ToolD'accord
StandardDIN 382
Reference Numbers
EDP Number217382
EAN7320760217382
File Type Download

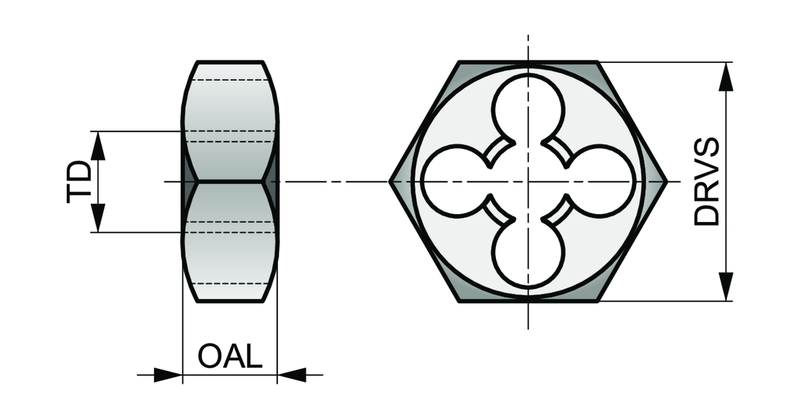

F2721.1/2 — Line Drawing PDF Download
