F202M24
F202M24

F202M24

UGC DOR5978716
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$227.29 CAD - $227.29 CAD
$227.29 CAD
$227.29 CAD - $227.29 CAD
$227.29 CAD

Vendu en lots de : 1

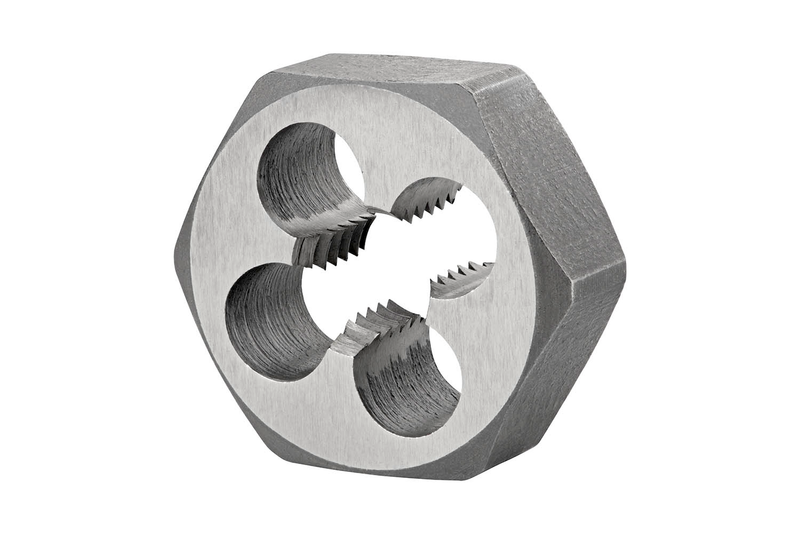

Filière hexagonale, pour filet ISO-métrique M24 au pas de 3,00 mm et classe de tolérance 6g, dimensions selon norme DIN 382 avec largeur sur plats de 50mm et épaisseur de 22mm, HSS finition brillante pour la réparation de filets endommagés dans les aciers de décolletage et au carbone non alliés, les aciers inoxydables ferritiques et les fontes grises, malléables, ductiles et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F202M24
GradeLumineux
Product Number5978716
Product FamilyF202

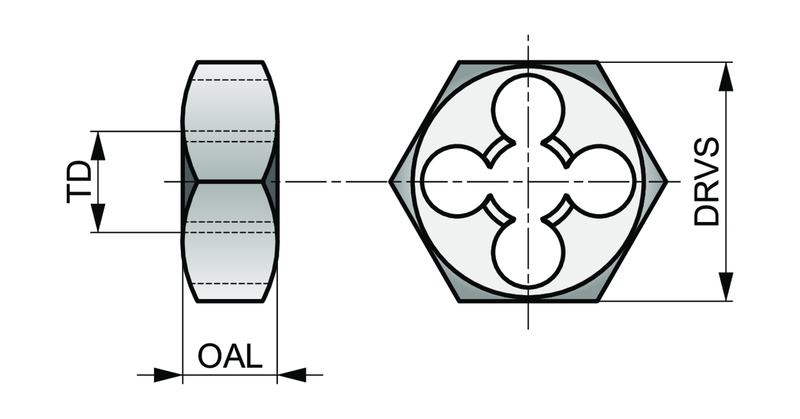

Dimensions
Overall Length — in (OAL)0.8661"
Overall Length — mm (OAL)22.0 mm
Threading
Thread Diameter Size (TDZ)24
Thread Diameter — mm (TD)24.0 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)3.0 mm
Tool Information
Direction of ToolD'accord
StandardDIN 382
Reference Numbers
EDP Number217108
EAN7320760217108
File Type Download
F202M24 — Line Drawing PDF Download
