F202M3
F202M3

F202M3

UGC DOR5978773
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$71.89 CAD - $71.89 CAD
$71.89 CAD
$71.89 CAD - $71.89 CAD
$71.89 CAD

Vendu en lots de : 1

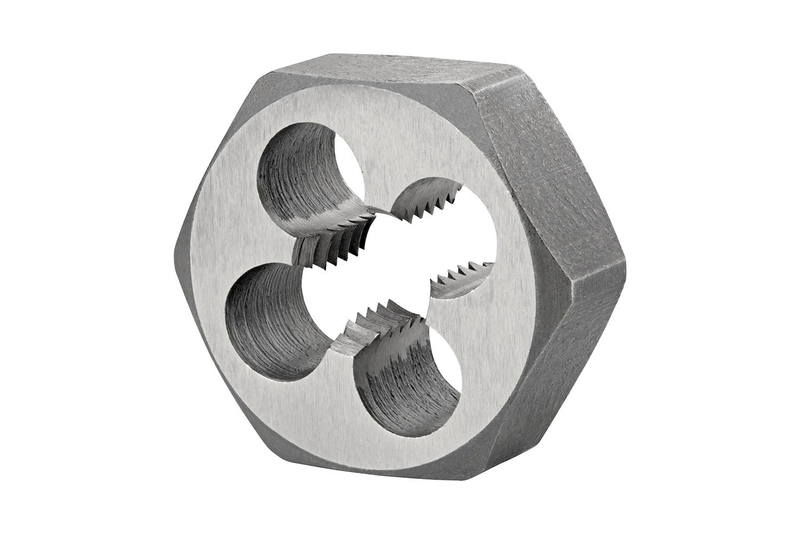

Filière hexagonale, pour filet métrique ISO M3 au pas de 0,50 mm et de classe de tolérance 6g, dimensions selon la norme DIN 382 avec une ouverture sur plats de 19 mm et une épaisseur de 5 mm, en HSS avec finition brillante pour la réparation de filets endommagés dans l'acier de décolletage et l'acier au carbone non allié, l'acier inoxydable ferritique et la fonte grise, malléable, nodulaire et à graphite vermiculaire

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F202M3
GradeLumineux
Product Number5978773
Product FamilyF202

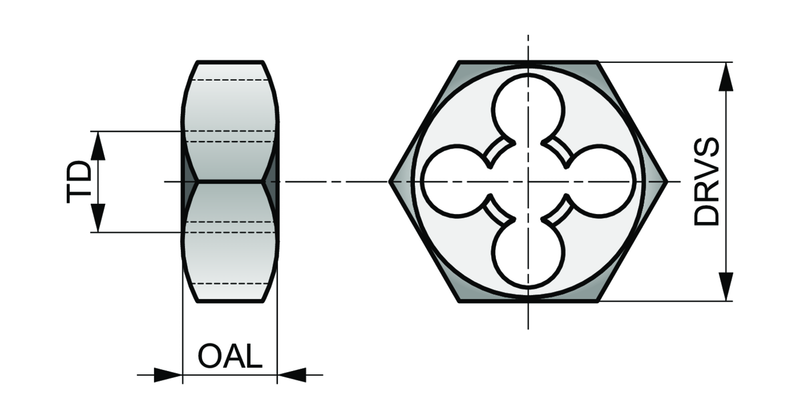

Dimensions
Overall Length — in (OAL)0.1969"
Overall Length — mm (OAL)5.0 mm
Threading
Thread Diameter Size (TDZ)3
Thread Diameter — mm (TD)3.0 mm
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.5 mm
Tool Information
Direction of ToolD'accord
StandardDIN 382
Reference Numbers
EDP Number217122
EAN7320760217122
File Type Download
F202M3 — Line Drawing PDF Download
