R4535/8
R4535/8
R4535/8
R4535/8

R4535/8

UGC DOR5978955
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$541.36 CAD - $541.36 CAD
$541.36 CAD
$541.36 CAD - $541.36 CAD
$541.36 CAD

Vendu en lots de : 1

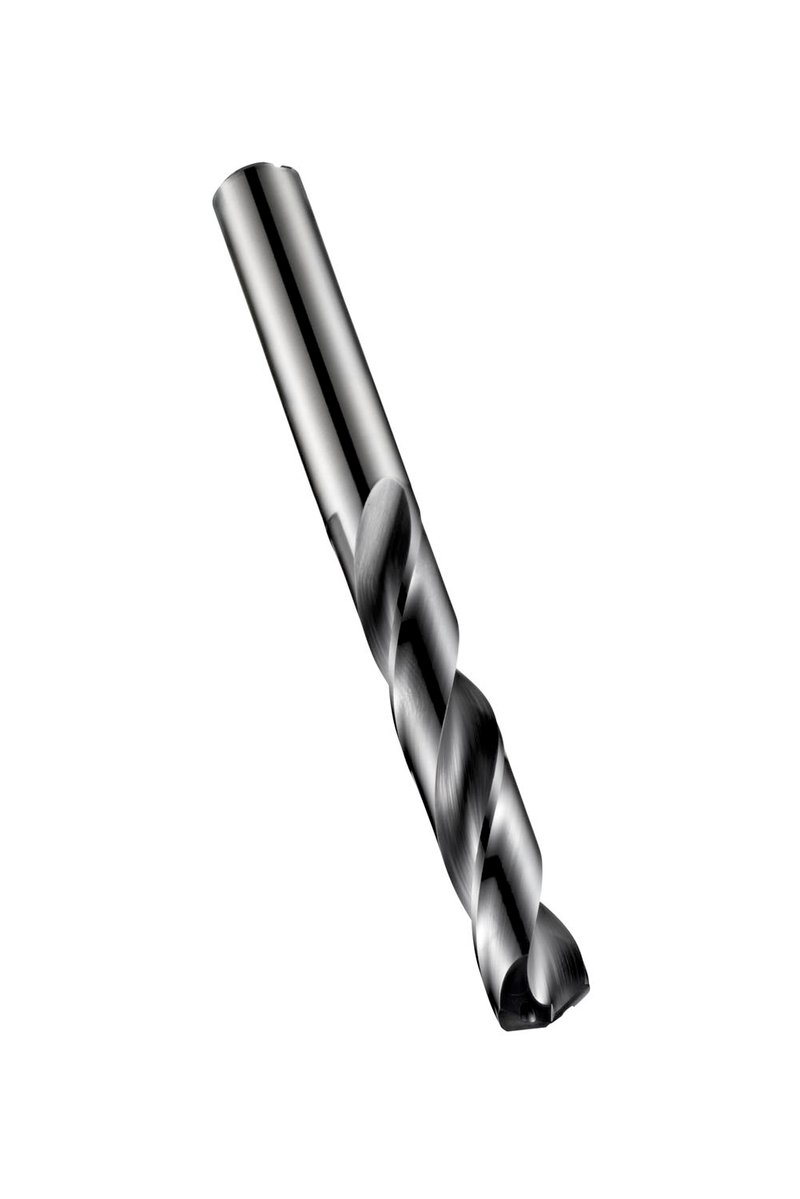

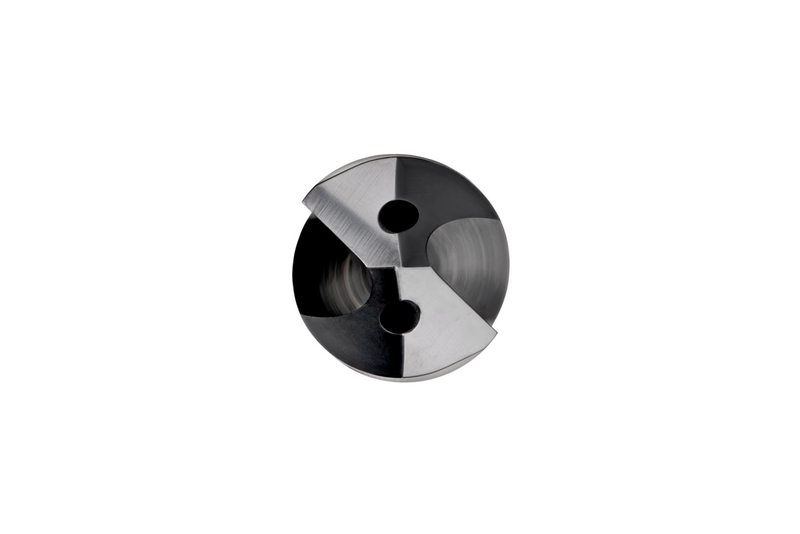

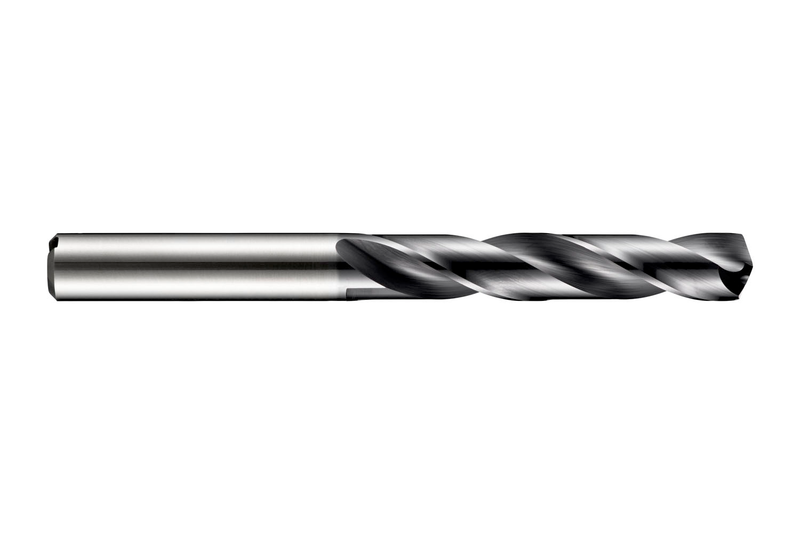

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,6250" (5/8), longueur totale de 133 mm et longueur de coupe de 82 mm selon la norme DIN 6537 L, avec pointe de perçage à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement TiAlN, âme amincie en continu et trous d'arrosage intégrés pour le perçage à 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4535/8
GradeTiAlN
Product Number5978955
Product FamilyR453
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number623947
EAN7320760623947
File Type Download
R4535/8 — 3D Model STP Download
R4535/8 — Line Drawing PDF Download
