R45712.0
R45712.0
R45712.0
R45712.0

R45712.0

UGC DOR5979052
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$245.93 CAD - $245.93 CAD
$245.93 CAD
$245.93 CAD - $245.93 CAD
$245.93 CAD

Vendu en lots de : 1

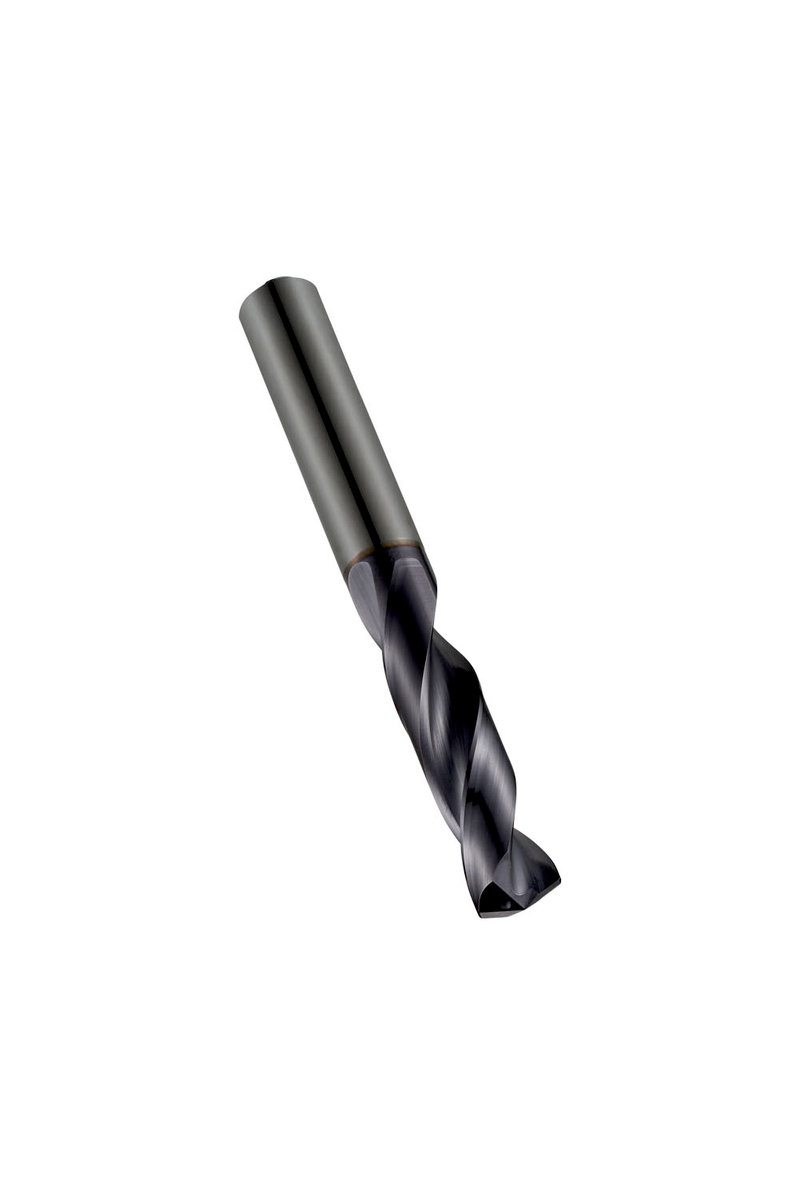

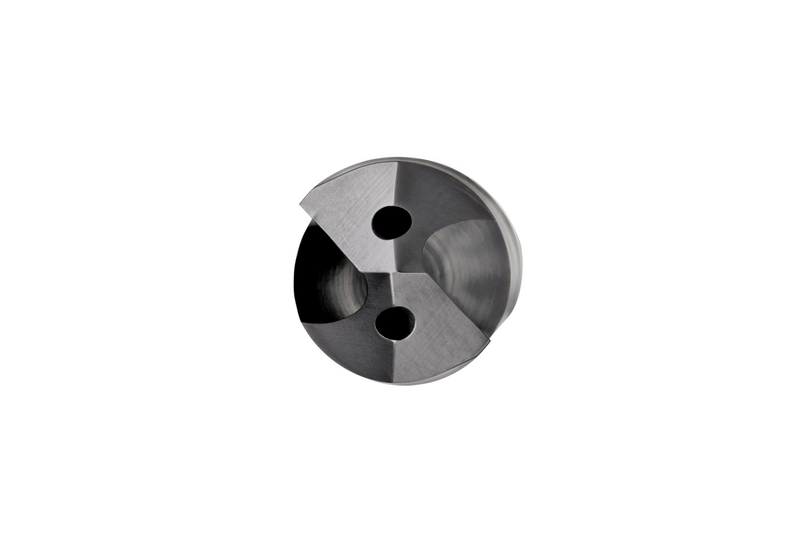

Foret FORCE X haute performance avec queue cylindrique NC DIN 6535HA, diamètre 12mm avec une longueur totale de 102mm et une longueur de coupe de 55mm selon la norme DIN 6537 K avec une pointe auto-centrante à 4 facettes et angle de pointe de 140° modifiée, carbure monobloc avec revêtement TiAlN, âme amincie en continu et trous de lubrification pour perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)R45712,0
Product Name (ISO)R45712.0
GradeTiAlN
Product Number5979052
Product FamilyR457

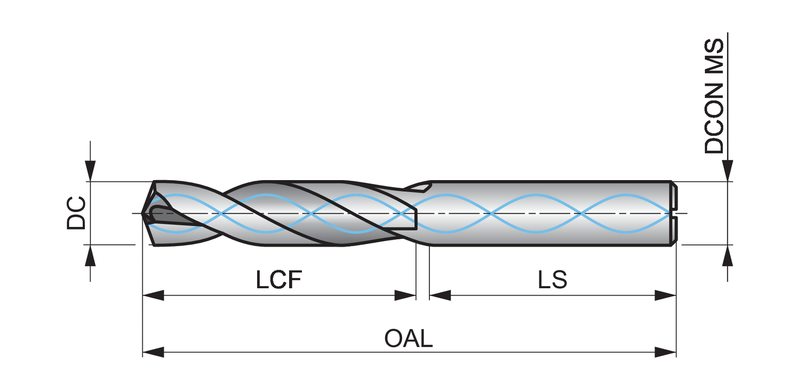

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)2.1654"
Flute Length — mm (LCF)55.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number614778
EAN7320760614778
File Type Download
R45712.0 — 3D Model STP Download
R45712.0 — Line Drawing PDF Download
