UGC DOR5979088
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$453.36 CAD - $453.36 CAD
$453.36 CAD
$453.36 CAD - $453.36 CAD
$453.36 CAD

Vendu en lots de : 1

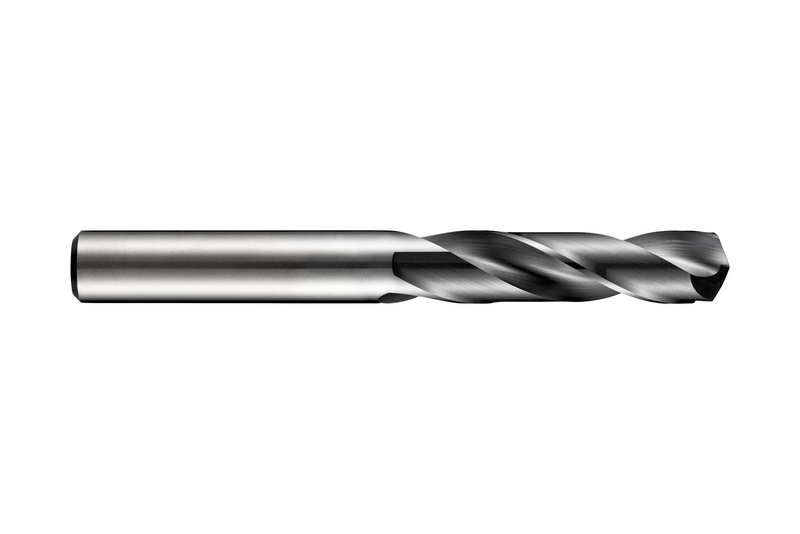

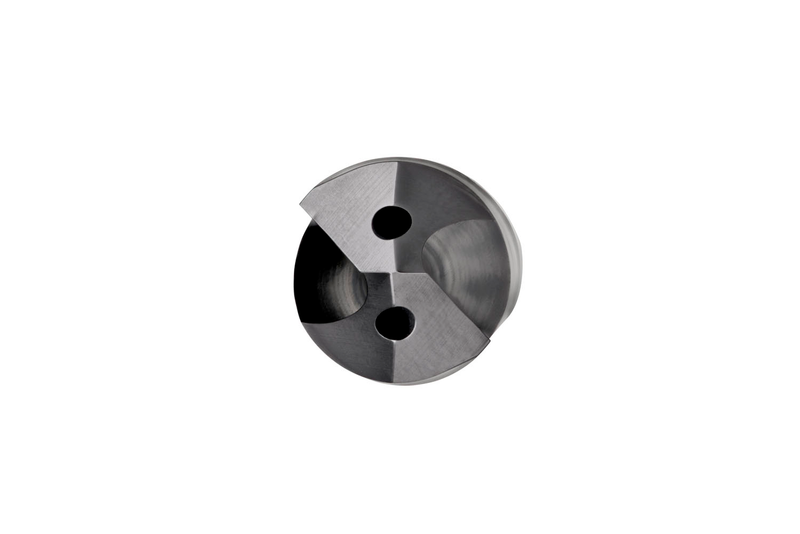

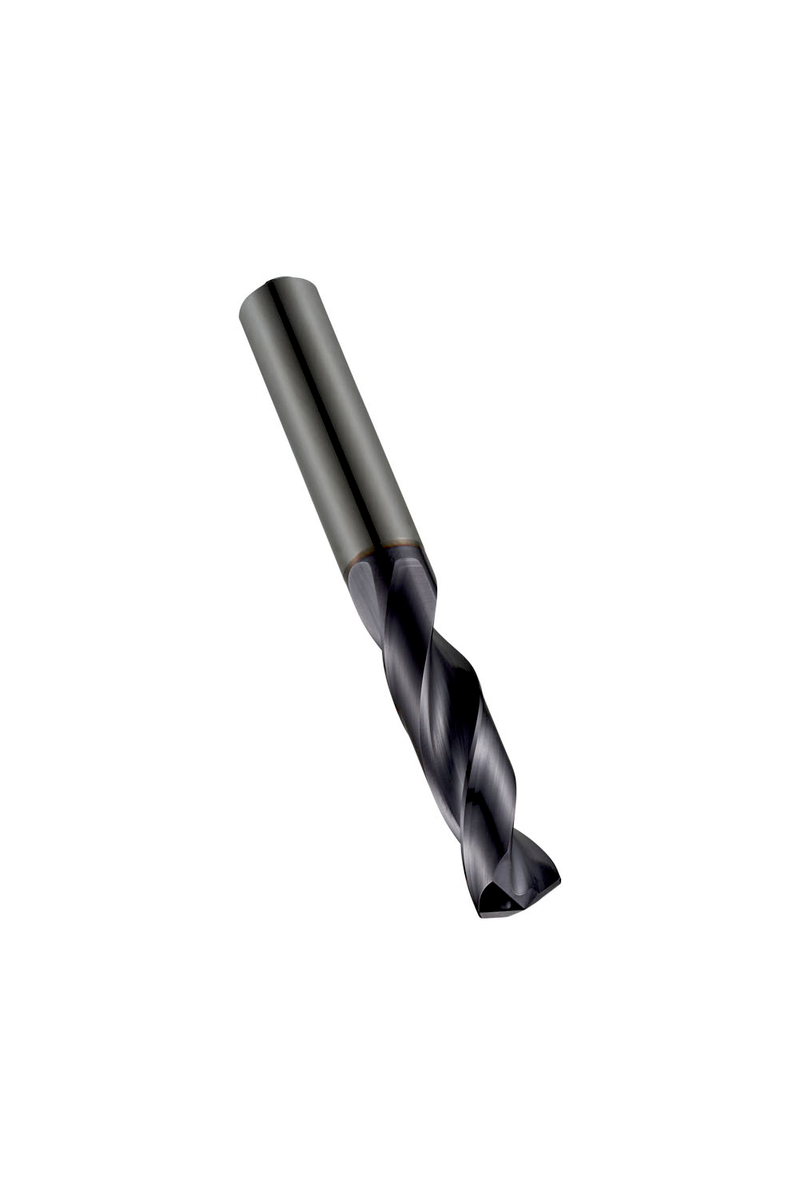

Foret FORCE X haute performance avec queue cylindrique DIN 6535HA NC, diamètre 14,5 mm avec une longueur totale de 115 mm et une longueur de coupe de 65 mm selon la norme DIN 6537 K avec pointe en croix à 4 facettes modifiée à 140°, carbure monobloc avec revêtement TiAlN, âme parallèle amincie en continu et trous d'arrosage pour un perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les super-alliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45714.5
GradeTiAlN
Product Number5979088
Product FamilyR457

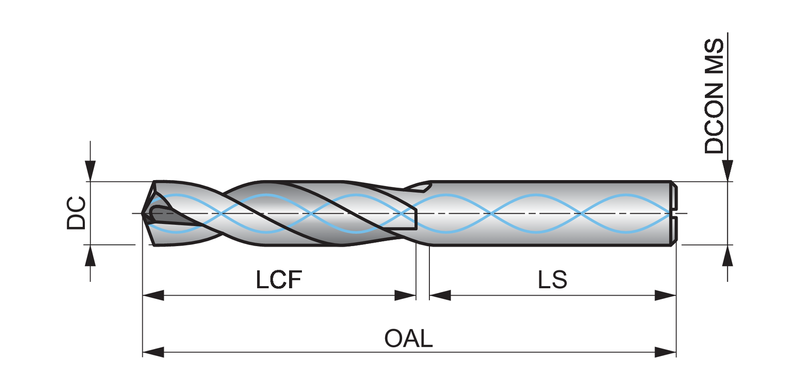

Dimensions
Cutting Diameter — in (DC)0.5709"
Cutting Diameter — mm (DC)14.5 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — in (LCF)2.5591"
Flute Length — mm (LCF)65.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number614846
EAN7320760614846
File Type Download
R45714.5 — 3D Model STP Download
R45714.5 — Line Drawing PDF Download
