UGC DOR5979285
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.71 CAD - $114.71 CAD
$114.71 CAD
$114.71 CAD - $114.71 CAD
$114.71 CAD

Vendu en lots de : 1

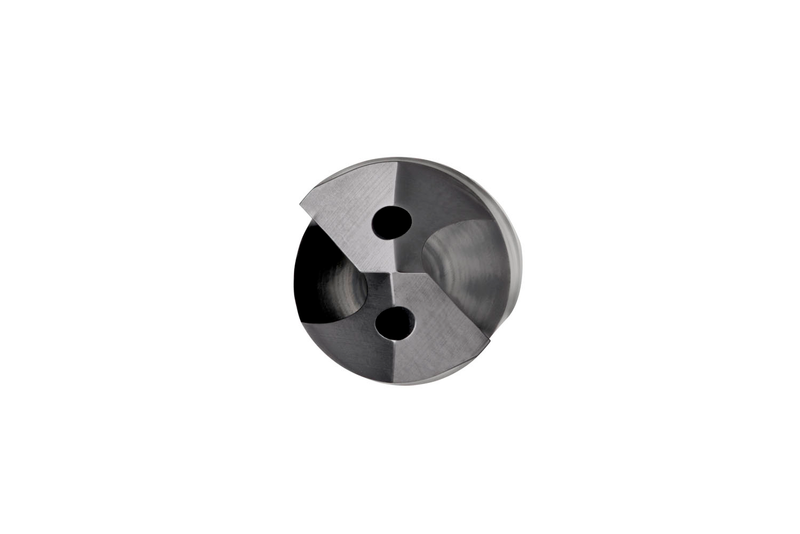

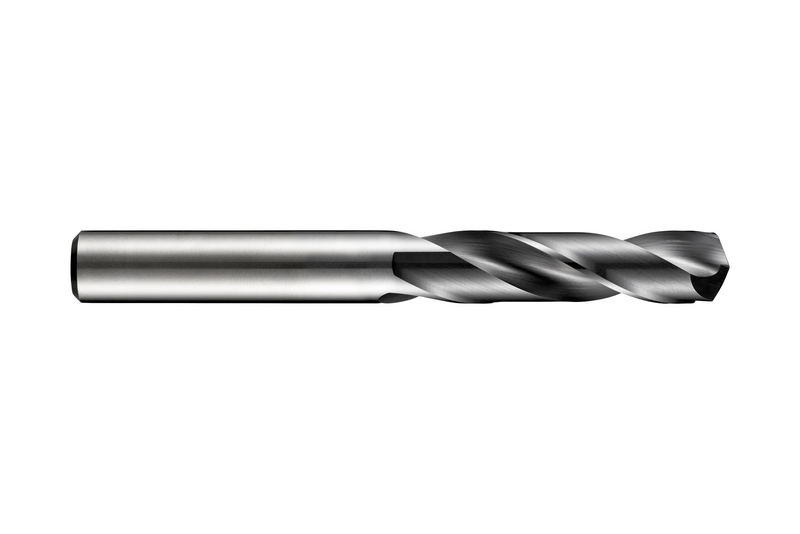

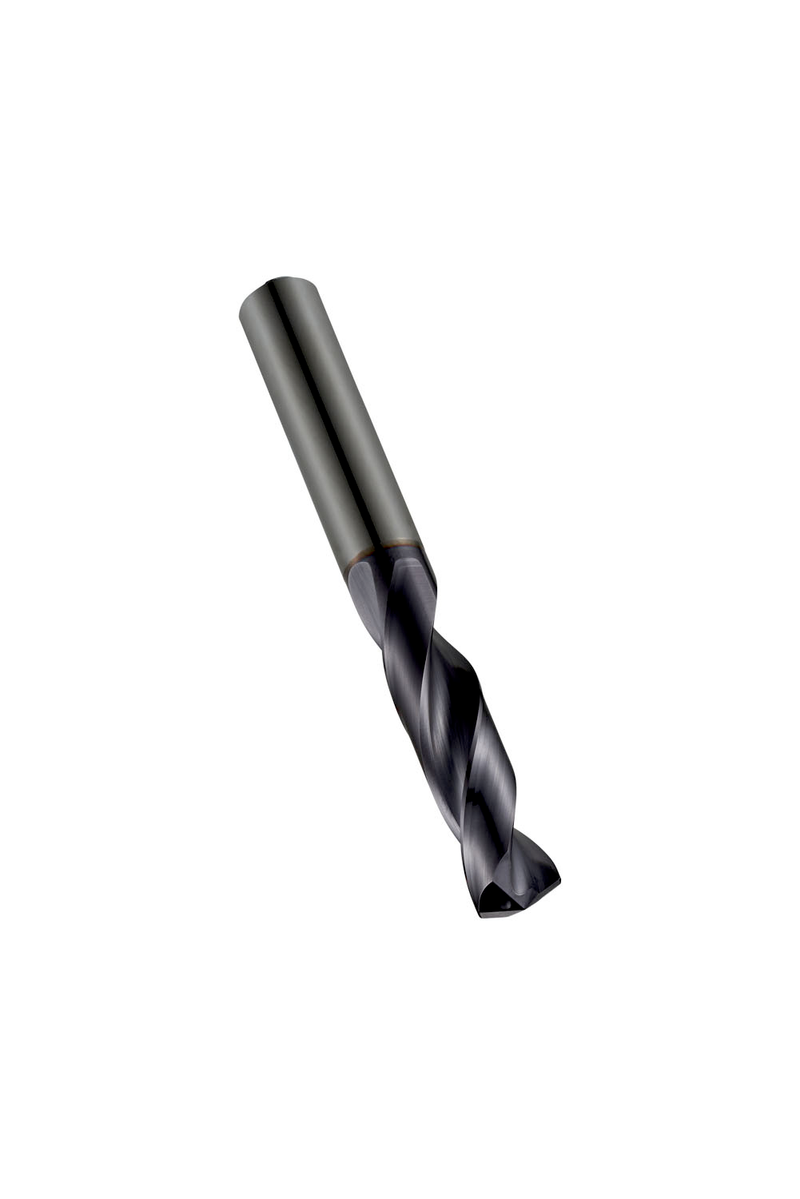

Foret FORCE X haute performance avec queue cylindrique DIN 6535HA NC, diamètre 4mm, longueur totale 66mm et longueur utile 24mm selon la norme DIN 6537 K avec pointe à quatre facettes rectifiée en croix à 140° (géométrie spéciale), carbure monobloc avec revêtement TiAlN, âme parallèle continuellement amincie et arrosage central pour perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4574.0
GradeTiAlN
Product Number5979285
Product FamilyR457

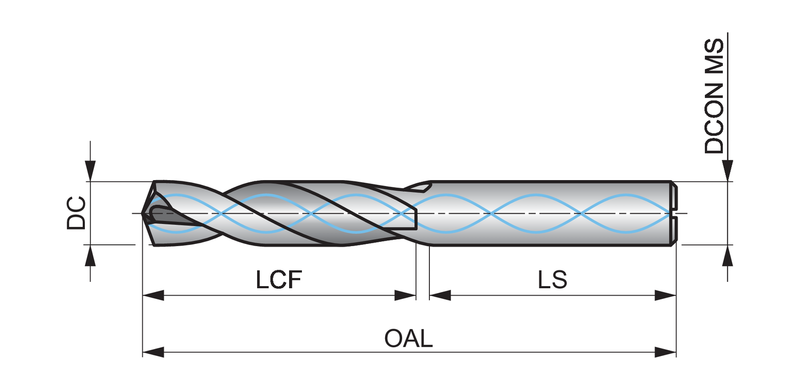

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number614921
EAN7320760614921
File Type Download
R4574.0 — 3D Model STP Download
R4574.0 — Line Drawing PDF Download
