R457N30
R457N30
R457N30
R457N30

R457N30

UGC DOR5979343
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$114.71 CAD - $114.71 CAD
$114.71 CAD
$114.71 CAD - $114.71 CAD
$114.71 CAD

Vendu en lots de : 1

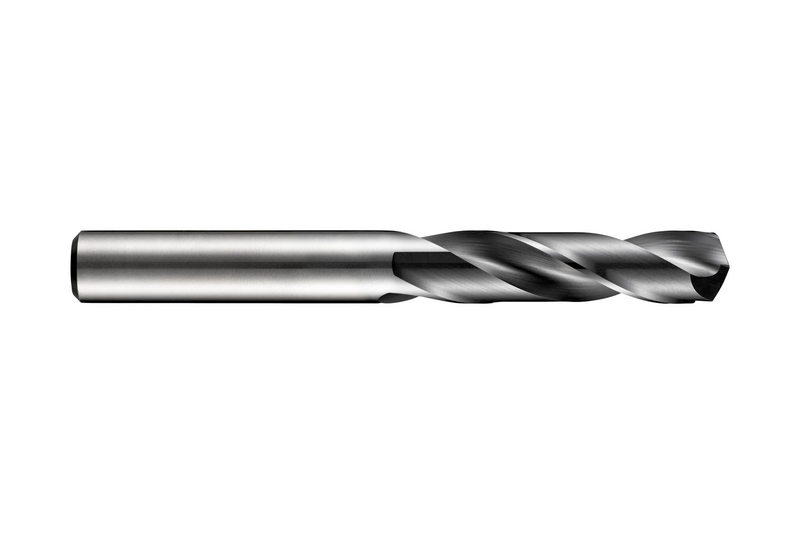

Forets hautes performances FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,1283" (N30) avec une longueur totale de 62mm et une longueur de coupe de 20mm selon la norme DIN 6537 K avec une pointe fendue modifiée à 4 facettes de 140°, en carbure monobloc avec revêtement TiAlN, âme amincie progressivement et arrosage central pour le perçage de 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les super-alliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R457N30
GradeTiAlN
Product Number5979343
Product FamilyR457
Dimensions
Cutting Diameter — in (DC)0.1283"
Cutting Diameter — mm (DC)3.26 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number41833
EAN7320760041833
File Type Download
R457N30 — 3D Model STP Download
R457N30 — Line Drawing PDF Download
