UGC DOR5979360
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$127.29 CAD - $127.29 CAD
$127.29 CAD
$127.29 CAD - $127.29 CAD
$127.29 CAD

Vendu en lots de : 1

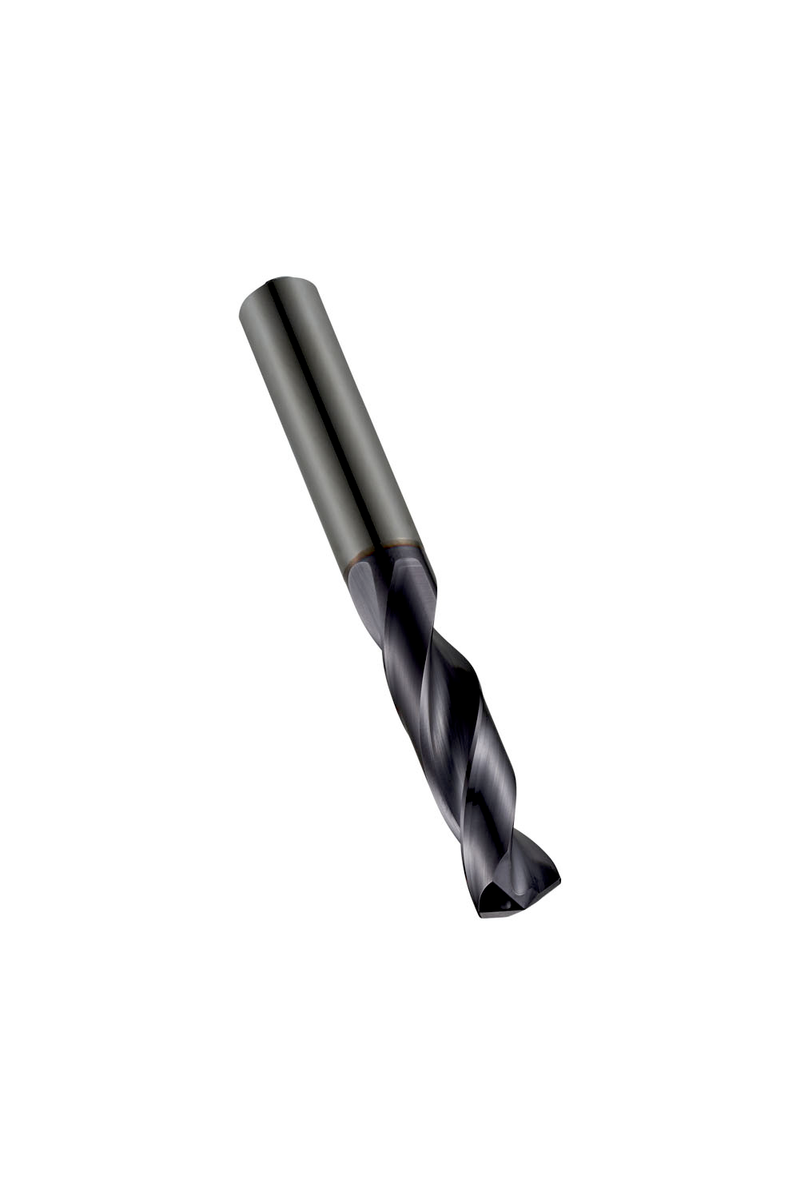

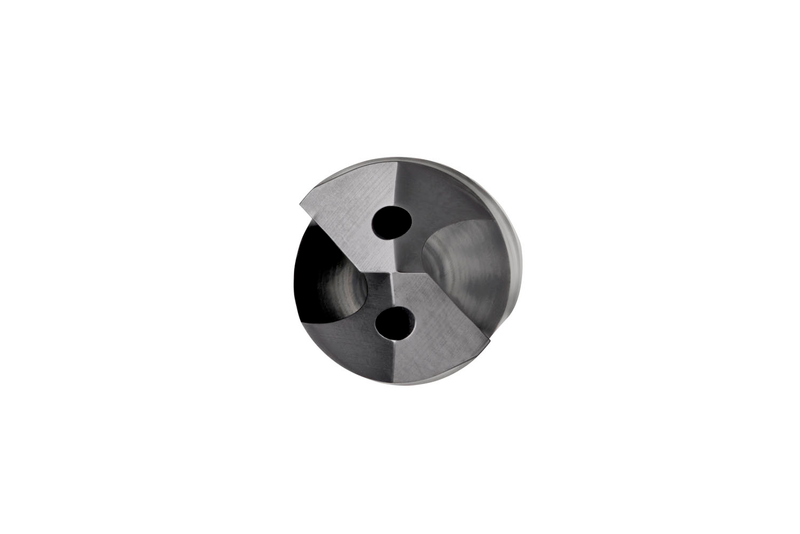

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,1992" (N8), longueur totale 66mm et longueur utile 28mm selon la norme DIN 6537 K avec une pointe fendue à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement TiAlN, une âme affinée en continu et des trous d'arrosage intérieurs pour un perçage 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R457N8
GradeTiAlN
Product Number5979360
Product FamilyR457

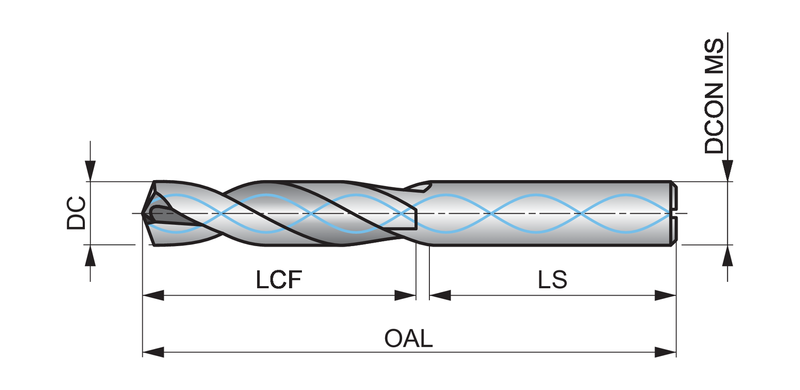

Dimensions
Cutting Diameter — in (DC)0.1992"
Cutting Diameter — mm (DC)5.06 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number42052
EAN7320760042052
File Type Download
R457N8 — 3D Model STP Download
R457N8 — Line Drawing PDF Download
